Sony cdx l 250 service manual
This is the 56 pages manual for sony cdx l 250 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony cdx l 250 service manual (Ocr-read)

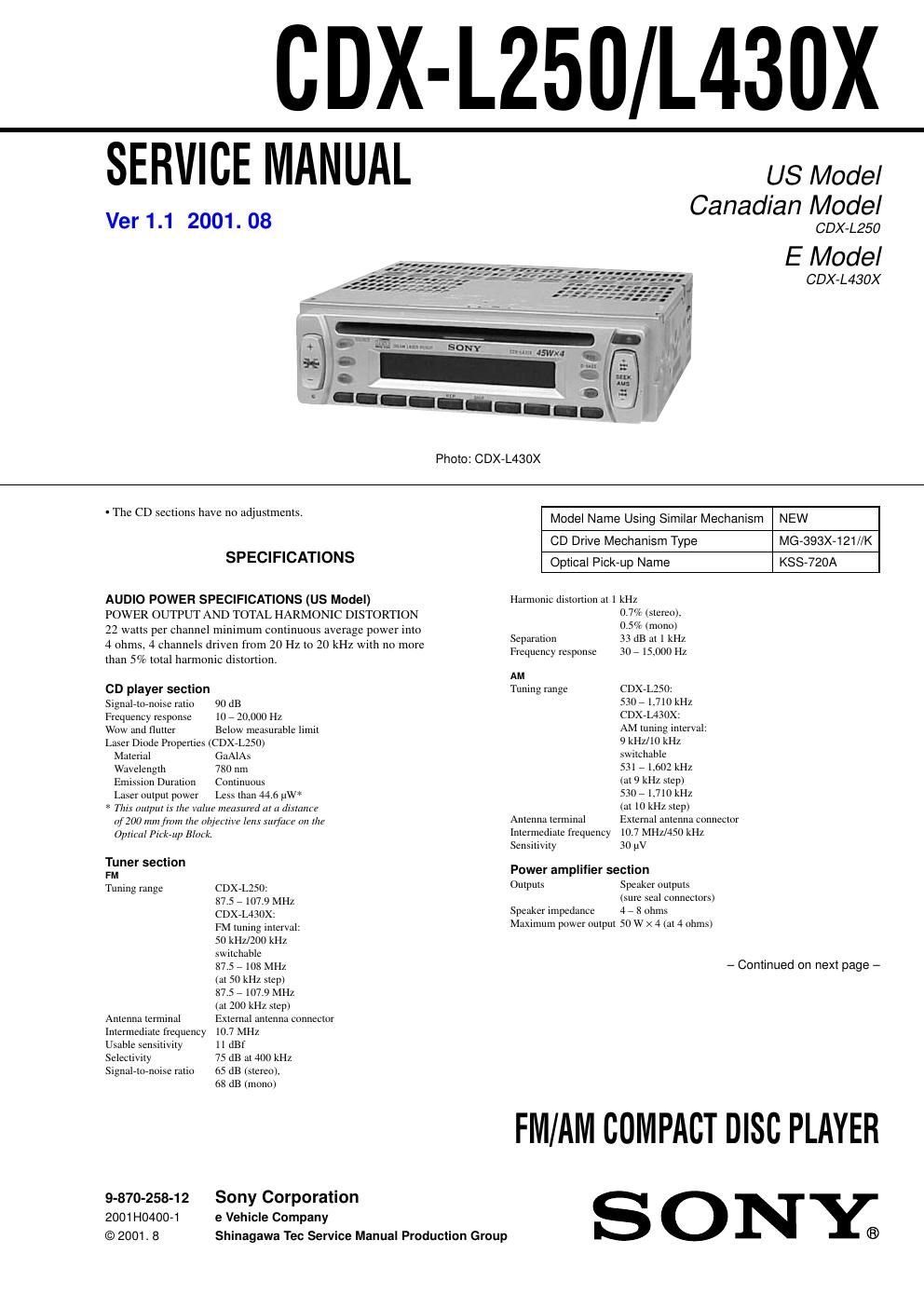

Page 1
2 optical pick-up bloc k semi-fixed resistor GeneralOutputs Audio output Power amplifier control (CDX-L250) Power antenna relay control (CDX-L250) Power aerial relay control lead (CDX-L430X) Tone controls Bass ±10 dB at 20 Hz (CDX-L250) Treble ±10 dB at 20 kHz (CDX-L250) Bass ±9 dB at 100 Hz (CDX-L430X) Treble ±9 dB at 10 kHz (CDX-L430X) Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 178 × 50 × 176 mm (7 1/8 × 2 × 7 in.) (w/h/d) Mounting dimensions Approx. 182 × 53 × 161 mm (7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d) Mass Approx. 1.2 kg (2 lb. 10 oz.) Supplied accessories Parts for installation and connections (1 set) Note (L430X)This unit cannot be connected to a digital preamplifier or an equalizer. Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. SERVICE NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be dam- aged by heat. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick-up block. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CDX-L250/L430X
Page 2
3 TABLE OF CONTENTS 1. GENERAL Location of controls ................................................................. 4 Getting Started ......................................................................... 4 CD Player ................................................................................ 4 Radio ....................................................................................... 5 Other Functions ....................................................................... 5 Connections ............................................................................. 7 2. DISASSEMBLY 2-1. Front Panel Assy ................................................................. 9 2-2. CD Mechanism Block ....................................................... 10 2-3. Main Board ....................................................................... 10 2-4. Heat Sink ........................................................................... 11 2-5. Chassis (T) Sub Assy ........................................................ 11 2-6. Lever Section .................................................................... 12 2-7. Servo Board ....................................................................... 12 2-8. Shaft Roller Assy .............................................................. 13 2-9. Floating Block Assy .......................................................... 13 2-10. Optical Pick-up Block ....................................................... 14 3. ELECTRICAL ADJUSTMENTS ................................. 15 4. DIAGRAMS 4-1. IC Pin Description ............................................................. 17 4-2. Block Diagram –CD Section– ........................................... 19 4-3. Block Diagram –Tuner Section– ....................................... 20 4-4. Block Diagram –Display Section– .................................... 21 4-5. Circuit Boards Location .................................................... 21 4-6. Printed Wiring Boards –CD Mechanism Section– ............ 22 4-7. Schematic Diagram –CD Mechanism Section– ................ 24 4-8. Printed Wiring Board –Main Section– .............................. 25 4-9. Schematic Diagram –Main Section (1/2)– ........................ 26 4-10. Schematic Diagram –Main Section (2/2)– ........................ 27 4-11. Printed Wiring Board –Display Section– .......................... 28 4-12. Schematic Diagram –Display Section– ............................. 29 5. EXPLODED VIEWS 5-1. Chassis Section ................................................................. 32 5-2. Front Panel Section ........................................................... 33 5-3. CD Mechanism Section (1) ............................................... 34 5-4. CD Mechanism Section (2) ............................................... 35 5-5. CD Mechanism Section (3) ............................................... 36 6. ELECTRICAL PARTS LIST ........................................ 37 CDX-L250/L430X
