Sony cdx gt 72 w service manual

This is the 54 pages manual for sony cdx gt 72 w service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 54
left right
sony cdx gt 72 w service manual

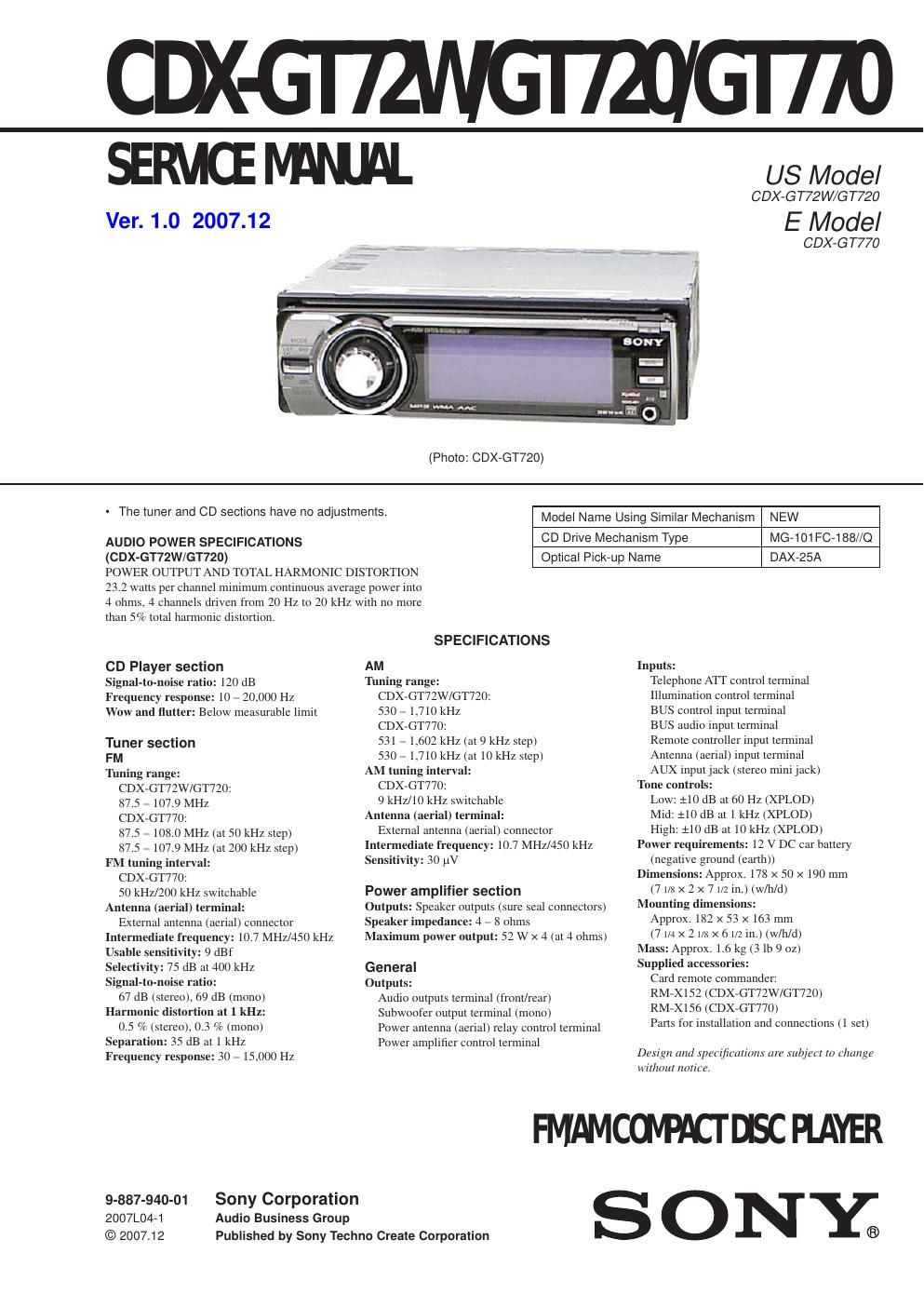

Extracted text from sony cdx gt 72 w service manual (Ocr-read)


Page 2

CDX-GT72W/GT720/GT770 3 1. SERVICE NOTE ..................................................... 4 2. GENERAL Location of Controls ....................................................... 5 Connections .................................................................... 6 3. DISASSEMBLY 3-1. Base Panel Assy .............................................................. 13 3-2. Sub Panel Assy ............................................................... 13 3-3. CD Mechanism Block ..................................................... 14 3-4. Driving Section (DB-F07) .............................................. 14 3-5. Main Board ..................................................................... 15 3-6. Servo Board .................................................................... 15 3-7. Chassis (T) Sub Assy ...................................................... 16 3-8. Roller Arm Assy .............................................................. 16 3-9. Chassis (OP) Assy ........................................................... 17 3-10. Chucking Arm Sub Assy ................................................. 17 3-11. Sled Motor Assy .............................................................. 18 3-12. Optical Pick-up Section .................................................. 19 3-13. Optical Pick-up ............................................................... 19 4. DIAGNOSIS FUNCTION ..................................... 20 5. DIAGRAMS 5-1. Block Diagram -“Main Section-“ ..................................... 23 5-2. Block Diagram -“Display Section-“ ................................. 24 5-3. Printed Wiring Boards -“Main Section (1/2)-“ ................. 26 5-4. Printed Wiring Board -“Main Section (2/2)-“ ................... 27 5-5. Schematic Diagram -“Main Section (1/4)-“ ...................... 28 5-6. Schematic Diagram -“Main Section (2/4)-“ ...................... 29 5-7. Schematic Diagram -“Main Section (3/4)-“ ...................... 30 5-8. Schematic Diagram -“Main Section (4/4)-“ ...................... 31 5-9. Printed Wiring Board -“Base Panel Section- ................... 32 5-10. Schematic Diagram -“Base Panel Section- ...................... 33 5-11. Printed Wiring Boards -“Display Section-“ ...................... 34 5-12. Schematic Diagram -“Display Section-“ .......................... 35 6. EXPLODED VIEWS 6-1. Main Section ................................................................... 43 6-2. Main Board Section ....................................................... 44 6-3. Front Section ................................................................... 45 6-4. CD Mechanism Section (MG-101FC-188//Q) ............... 46 7. ELECTRICAL PARTS LIST .............................. 47 TABLE OF CONTENTS UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to fl ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. This compact disc player is classi ï¬ ed as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the exterior. CDX-GT770: This label is located on the bottom of the chassis. - CD playback You can play CD-DA (also containing CD TEXT), CD-R/CD- RW (MP3/WMA/AAC ï¬ les). Type of discs Label on the disc CD-DA MP3 WMA AAC
