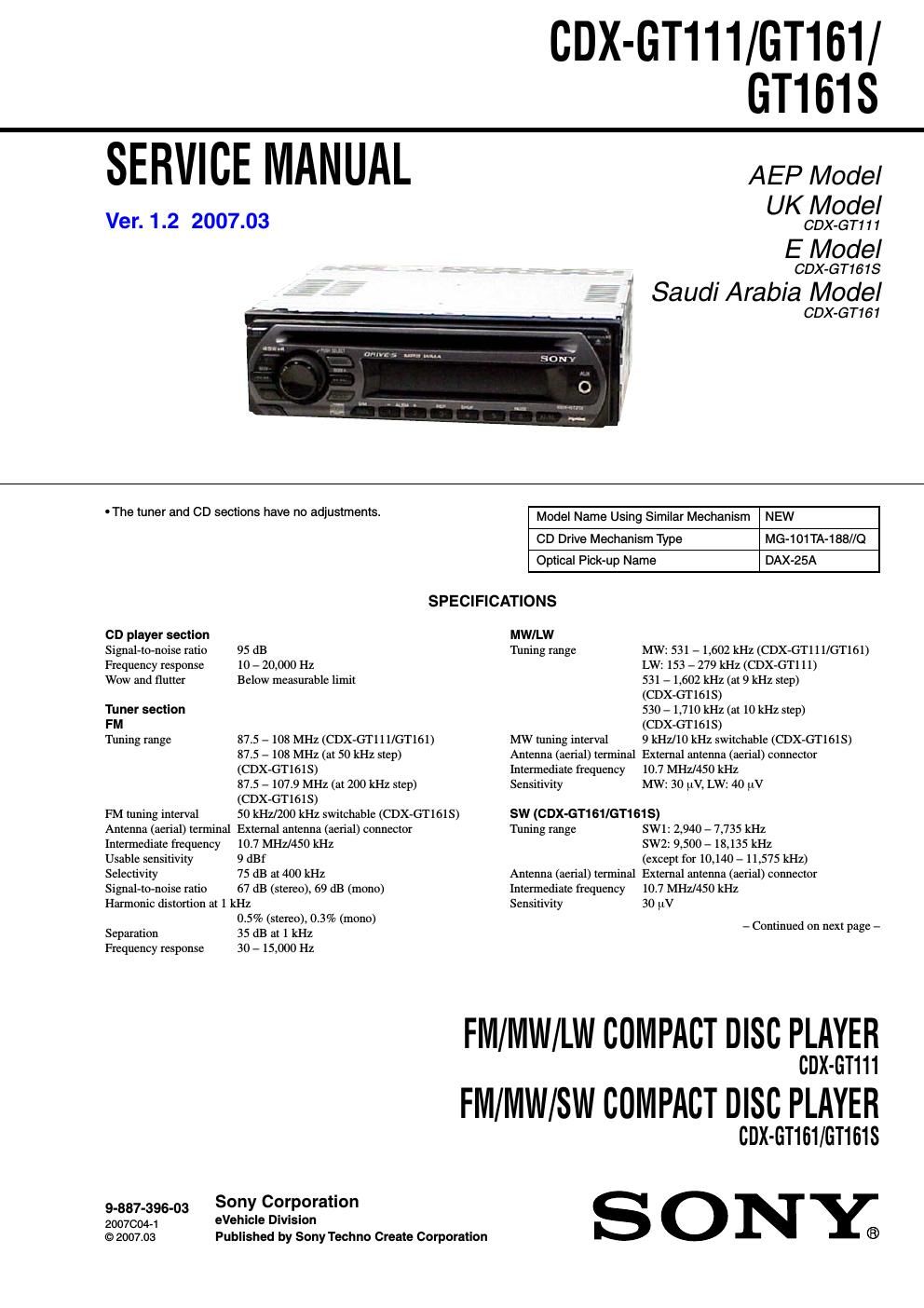

sony cdx gt 161 service manual

Extracted text from sony cdx gt 161 service manual (Ocr-read)


Page 1

2 CDX-GT111/GT161/GT161S SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick- up block. SERVICE NOTESCAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Power amplifier section Outputs Speaker outputs (sure seal connectors) Speaker impedance 4 -“ 8 ohms Maximum power output 45 W × 4 (at 4 ohms) General Output Power antenna (aerial) relay control terminal Inputs Telephone ATT control terminal (CDX-GT111) Antenna (aerial) input terminal AUX input jack (stereo mini jack) Tone controls Low: ±10 dB at 100 Hz High: ±10 dB at 10 kHz Loudness +9 dB at 100 Hz +5 dB at 10 kHz Power requirements 12 V DC car battery (negative ground (earth)) Dimensions Approx. 178 × 50 × 179 mm (7 1/8 × 2 × 7 1/8 in.) (w/h/d) Mounting dimensions Approx. 182 × 53 × 162 mm (7 1/4 × 2 1/8 × 6 1/2 in.) (w/h/d) Mass Approx. 1.2 kg (2 lb. 11 oz.) Supplied accessories Parts for installation and connections (1 set) Design and specifications are subject to change without notice. optical pick-up semi-fixed resistor Notes on Chip Component Replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. TEST DISCS Please use the following test discs for the check on the CD section. YDES-18 (Part No. 3-702-101-01) PATD-012 (Part No. 4-225-203-01)
