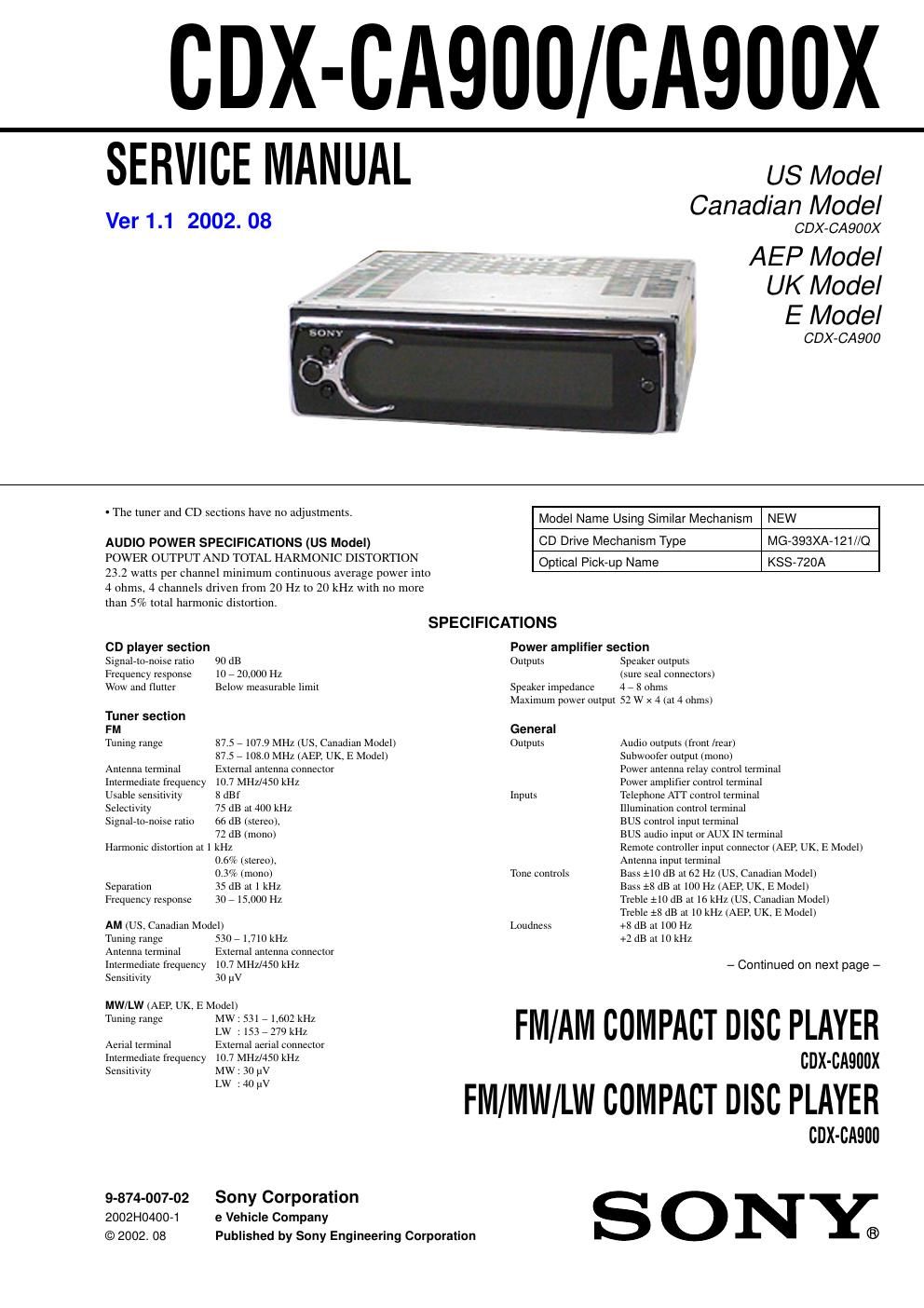

Extracted text from sony cdx ca 900 x service manual (Ocr-read)
Page 1
2
- AEP, UK model
This label is located on the bottom of the
chassis.
This label is located on the drive units internal
chassis.
CDX-CA900/CA900X
optical pick-up bloc k
semi-fixed resistor
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)
Notes on CD-R/CD-RW discs
- You can play CD-Rs (recordable CDs)/CD-RWs (rewritable CDs)
designed for audio use on this unit.
Look for these marks to distinguish CD-Rs/CD-RWs for audio
use.
These marks denote that a disc is not for audio use.
- Some CD-Rs/CD-RWs (depending on the equipment used for
its recording or the condition of the disc) may not play on this
unit.
- You cannot play a CD-R/CD-RW that is not finalized -ˆ—
.
-ˆ— A process necessary for a recorded CD-R/CD-RW disc to be
played on the audio CD player.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY. A
TTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Po wer requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 × 50 × 179 mm
(7
1/8 × 2 × 7 1/8 in.) (w/h/d)
Mounting dimensions Approx. 182 × 53 × 162 mm
(7
1/4 × 2 1/8 × 6 1/2 in.) (w/h/d)
Mass Approx. 1.3 kg (2 lb. 14 oz.)
Supplied accessories Parts for installation and connections (1 set) Front panel case (1)
Card remote commander (1)
RM-X112 (US, Canadian model)
RM-X113 (AEP, UK, E model)
Rotary commander (1) RM-X6S
NoteThis unit cannot be connected to a digital preamplifier or an equalizer.
Design and specifications are subject to change without
notice.
SERVICE NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
T he laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Ver 1.1
CAUTION INVISIBLE
DO NOT STARE INTO BEAM OR
VIEW DIRECTLY WITH OPTICAL INSTRUMENTS LASER RADIATION WHEN
OPEN
- US, Canadian model
Page 2
3
TABLE OF CONTENTS
1. GENERAL
Location of controls (US, Canadian Model) ........................... 4
Location of controls (E Model) ............................................... 4
Connections (US, Canadian Model) ........................................ 5
Connections (E Model) ........................................................... 6
2. DISASSEMBLY
2-1. Sub Panel Assy .................................................................... 7
2-2. CD Mechanism Block ......................................................... 8
2-3. Main Board ........................................................................\
. 8
2-4. Heat Sink ........................................................................\
..... 9
2-5. Chassis (T.U) Assy .............................................................. 9
2-6. Disc In Board .................................................................... 10
2-7. Servo Board ....................................................................... 10
2-8. Shaft Roller Assy, Load Board .......................................... 11
2-9. Floating Block Assy .......................................................... 11
2-10. Optical Pick-up Block ....................................................... 12
MAIN BOARD CN401
SERVO BOARD CN1
3. DIAGRAMS
3-1. IC Pin Descriptions ........................................................... 13
3-2. Circuit Boards Location .................................................... 18
3-3. Block Diagram -“CD Section-“ ........................................... 19
3-4. Block Diagram -“Tuner Section-“ ....................................... 20
3-5. Block Diagram -“Display Section-“ .................................... 21
3-6. Printed Wiring Boards -“CD Mechanism Section-“ ............ 22
3-7. Schematic Diagram -“CD Mechanism Section-“ ................ 24
3-8. Schematic Diagram -“Main Section (1/4)-“ ........................ 25
3-9. Schematic Diagram -“Main Section (2/4)-“ ........................ 26
3-10. Schematic Diagram -“Main Section (3/4)-“ ........................ 27
3-11. Schematic Diagram -“Main Section (4/4)-“ ........................ 28
3-12. Printed Wiring Board -“Relay Section-“ ............................. 29
3-13. Printed Wiring Board -“Main Section-“ .............................. 30
3-14. Printed Wiring Board -“Key Section-“ ................................ 32
3-15. Schematic Diagram -“Key Section-“ ................................... 33
4. EXPLODED VIEWS
4-1. Chassis Section ................................................................. 37
4-2. Main Board Section .......................................................... 38
4-3. Front panel Section ........................................................... 39
4-4. CD Mechanism Section (1) ............................................... 40
4-5. CD Mechanism Section (2) ............................................... 41
4-6. CD Mechanism Section (3) ............................................... 42
5. ELECTRICAL PARTS LIST ........................................ 43
CDX-CA900/CA900X
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)\
as shown below.
-Connect the MAIN board (CN401) and the SERVO board (CN1)
with the extension cable (Part No. J-2502-062-1).
