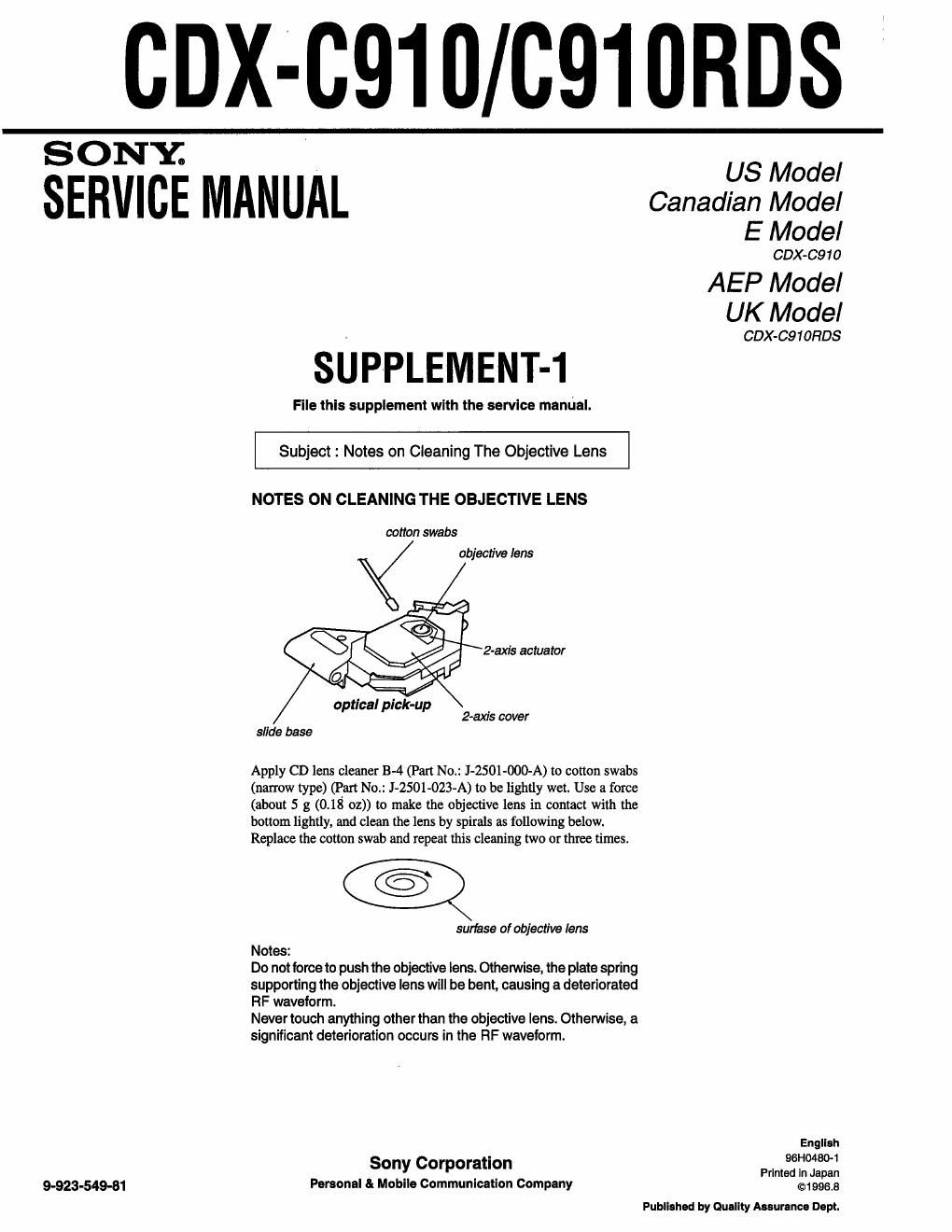

Page 1

cnx-cg1o/C91onns

S ONY; US Model

SERVICE MANUAL Canadian Model

E Model

CDX-0910
AEP Model
UK Model

CDX- 0910FlDS

SUPPLEMENT-1

File this supplement with the service manual.

Subject : Notes on Cleaning The Objective Lens

NOTES ON CLEANING THE OBJECTIVE LENS

cotton swabs
objective lens

optical pick-up

2-axls cover
slide base

Apply CD lens cleaner 3-4 (Part No.: 1-2501 ~000-A) to cotton swabs
(narrow type) (Part No.: J-2501-023-A) to be lightly wet. Use a force
(about 5 g (0.18 02)) to make the objective lens in contact with the
bottom lightly, and stem the lens by spirals as following below.
Replace the cotton swab and repeat this cleaning two or three times.

surlase of objective lens

Notes:

Do not lorceto push the objective lens. Otherwise, the plate spring
supporting the objective lens will be bent, causing a deteriorated
FtF wavelorm.

Never touch anything other than the objective lens. Otherwise, a
significant deterioration occurs in the RF waveform.

English
- 96Ho48 Sony Corporation PM in Japan
9-923-549-81 Personal & Mobile Communication Company @199

Publiuhed by Quality Anurance Dept.
