Page 1
2

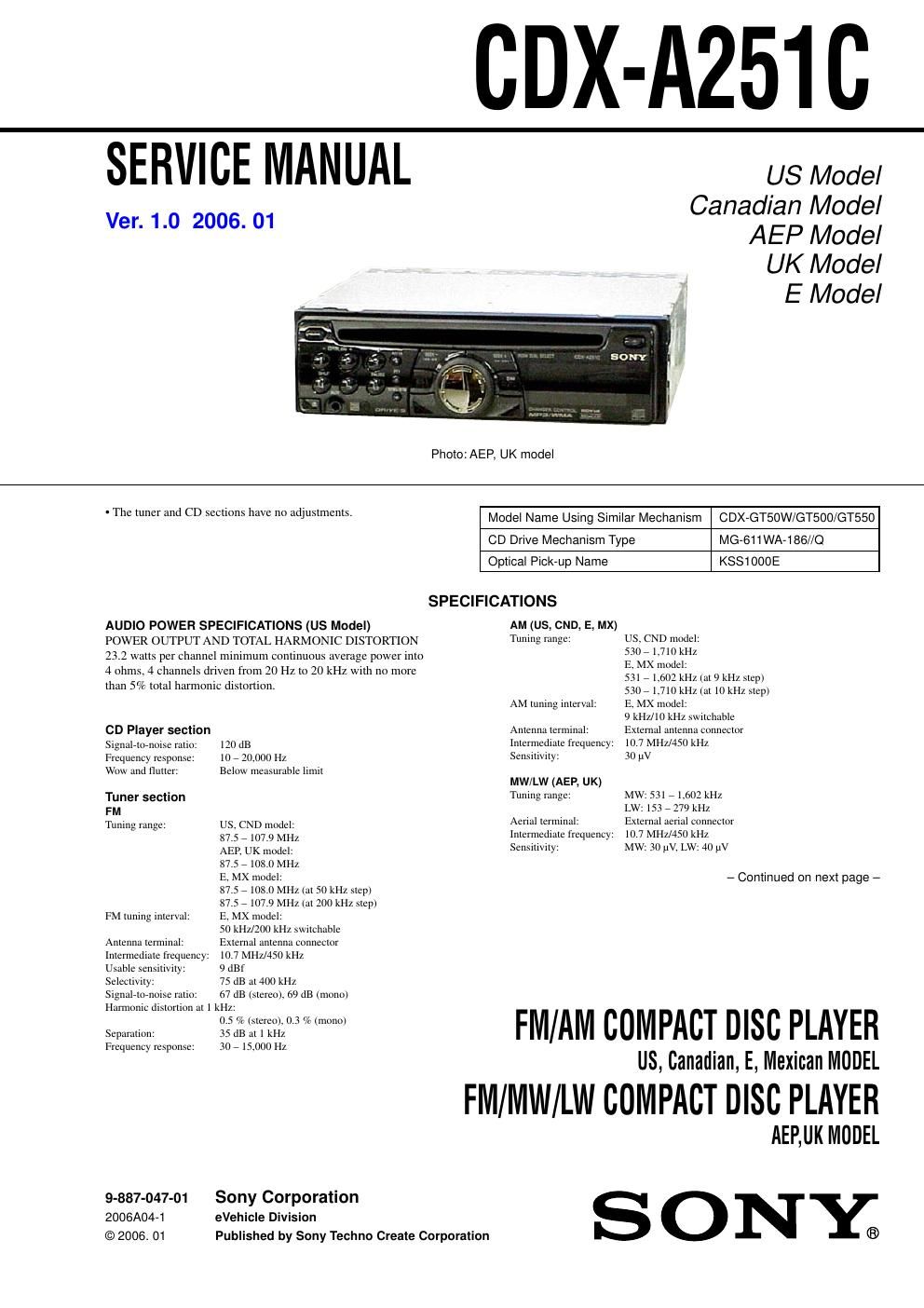

CDX-A251C
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
-Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SERVICE NOTES
This label is located on the bottom of the chassis.
TEST DISCS
This set can playback CD-R and CD-ROM discs. The following
test discs should be used to check the capability:
CD-R test disc TCD-R082LMT (Part No. J-2502-063-1)
CD-RW test disc TCD-W082L (Part No. J-2502-063-2)
optical pick-up
semi-fixed resistor
CAUTION
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
e xposure.
This compact disc player is classified as a CLASS 1 LASER
product. The CLASS 1 LASER PRODUCT label is located on the
e xterior.
AEP, UK, E, MX Model:
Power amplifier sectionOutputs: Speaker outputs (sure seal connectors)
Speaker impedance: 4 -“ 8 ohms
Maximum power output: US, CND, E, MX model: 52 W × 4 (at 4 ohms)
AEP, UK model:
50 W × 4 (at 4 ohms)
GeneralOutputs: Audio outputs terminal (sub/rear switchable)
Power antenna relay control terminal
Po wer amplifier control terminal
Inputs: Telephone ATT control terminal (AEP, UK, E, MX) BUS control input terminal
B US audio input terminal
Remote control input terminal
Antenna input terminal
A UX input jack (stereo mini jack)
T one controls: Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1 kHz (XPLOD)
High: ±10 dB at 10 kHz (XPLOD)
Po wer requirements: 12 V DC car battery (negative ground)
Dimensions: Approx. 178 × 50 × 178 mm
(7
1/8 × 2 × 7 1/8 in.) (w/h/d)
Mounting dimensions: Approx. 182 × 53 × 162 mm
(7
1/4 × 2 1/8 × 6 1/2 in.) (w/h/d)
Mass: Approx. 1.2 kg (2 lb. 11 oz.)
Supplied accessories: Card remote commander: RM-X151 Parts for installation and connections (1 set)
US and foreign patents licensed from Dolby Laboratories.
MPEG Layer-3 audio coding technology and patents licensed from
Fr aunhofer IIS and Thomson.
Note
T his unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and specifications are subject to change
without notice.
- Abbreviation CND : Canadian model
MX : Mexican model
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY. A
TTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
3
CDX-A251C
z UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
- Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
-Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
-Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SERVO BOAR D CN2 MAIN BOARD
CNP301
J-2502-076-1
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
-Connect the MAIN board (CNP301) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1). -CD playback
You can play CD-DA (also containing CD TEXT*), CD-R/CD-
RW (MP3/WMA files also containing Multi Session and ATRAC
CD (ATRAC3 and ATRAC3plus format).
Type of discs Label on the disc
CD-DA
MP3
WMA
ATRAC CD
*A CD TEXT disc is a CD-DA that includes information such as
disc, artist and track name.
