Sony cdx 606 service manual

This is the 20 pages manual for sony cdx 606 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 20
left right

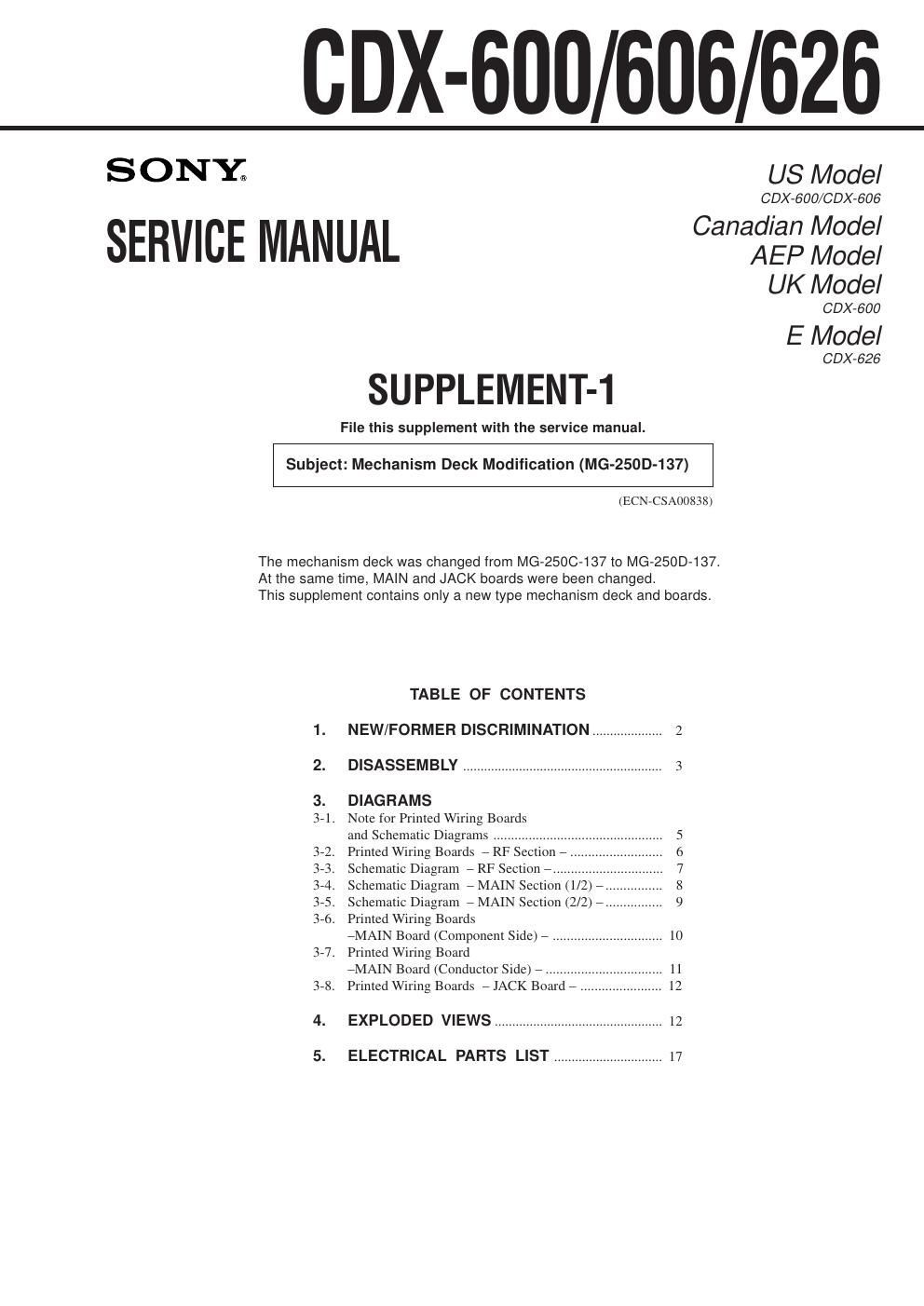

sony cdx 606 service manual

Extracted text from sony cdx 606 service manual (Ocr-read)

Page 1

2 1. NEW/FORMER DISCRIMINATION 7Y187A C: MG-250C-137 (Former type) D: MG-250D-137 (New type)

Page 2

3 Note: Follow the disassembly procedure in the numerical order given. 2. DISASSEMBLY MECHANISM DECK (MG-250D-137) 2 tension spring (FL) 2 tension spring (FL) 1 two dampers (250) 1 two dampers (250) 3 jack flexible board (CNJ901) 4 mechanism deck (MG-250D-137) firament tape MAIN BOARD 1 main flexible board (CNJ12) 6 three screws (FP) 7 main board 2 Break the soldering of motor (M104) lead. 3 screw (PTT2 ´ 4) 4 heat sink 5 two precision screws (P1.7 ´ 2.5)
