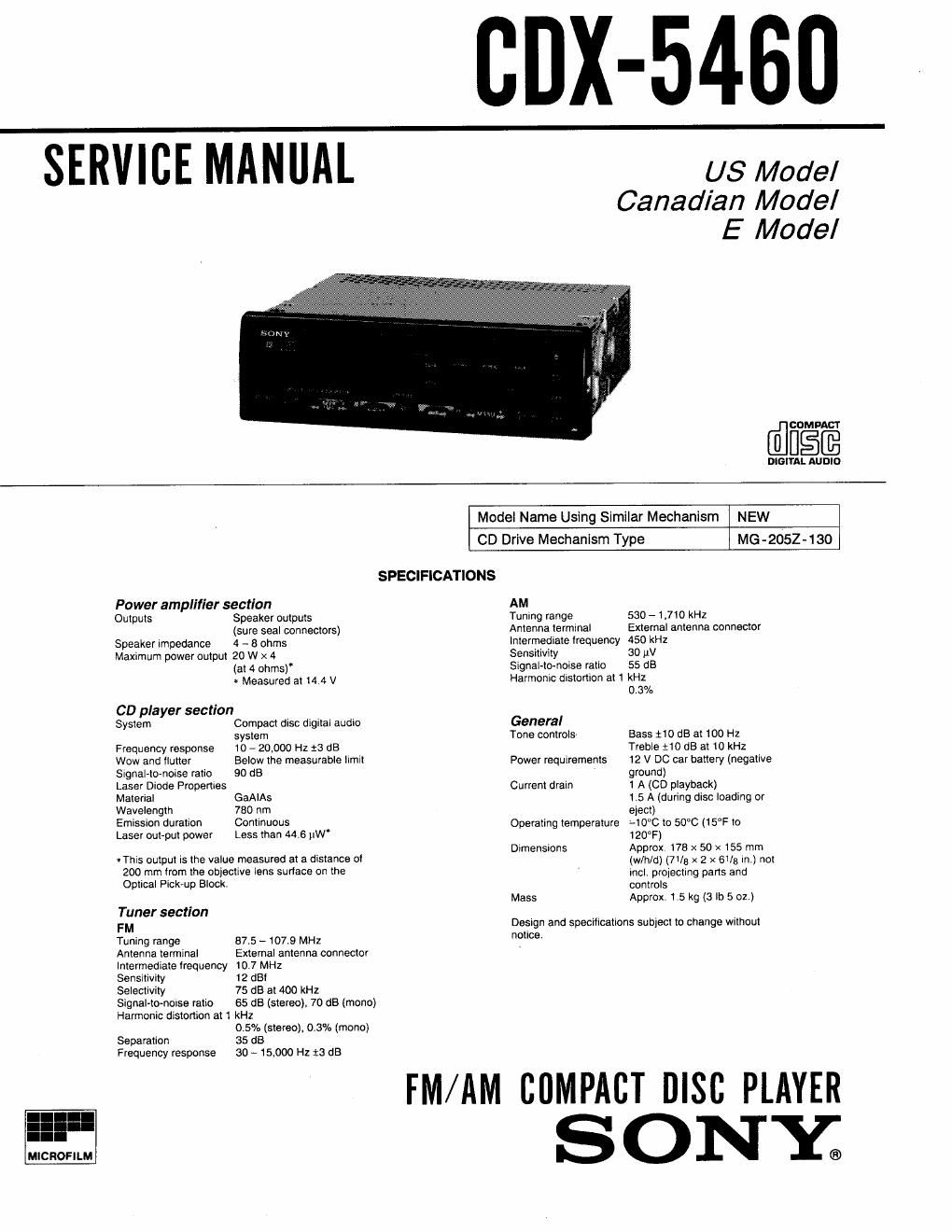

BOX-5460
i SERVICE MANUAL
US Model
Canadian Model
E Model
COMFflC
DIGITAL AUDIO
Model Name Using Similar Mechanism NEW
CD Drive Mechanism Type MG-2052-130
SPECIFICATIONS
Power amplifier section AM
Outputs Speaker outputs Tuning range 530 - 1,710 kHz
(sure seal connectors) Antenna terminal External antenna connector
Speaker impedance 4 ~ 8 ohms Intermediate frequency 450 kHz
Maximum power output 20 W x 4 Sensitivity 30 uV
(at 4 onms) Signal-to-noise ratio 55 dB
~ Measured at 14.4 V
CD player section
System Compact disc digital audio
system
10 - 20000 Hz :3 dB
Below the measurable limit
Frequency response
Wow and ilutter
Signal-to-noise ratio 90 dB
Laser Diode Properties
Material GaAlAs
Wavelength 780 rim
Emission duration Continuous
Laser out-put power Less than 44.6 iiW
anis output is the value measured at a distance of
200 mm item the objective lens surtace on the
Optical Pick~up Block.
Tuner section
FM
Tuning range 87.5 7107.9 MHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Sensitivity 12 dBt
Selectivity 75 dB at 400 kHz
Signal~to-noiss ratio 65 dB (stereo), 70 dB (mono)
Harmonic distonion at 1 kHz
0.5% (stereo). 0.3% (mono)
35 dB
30 ~15,000 Hz :3 dB
Separation
Frequency response
Harmonic distortion at 1 kHz
General
Tone controls
Power requirements
Current drain
Operating temperature
Dimensions
Mass
03%
Bass Ho :18 at 100 Hz
Treble :10 dB at 10 kHz
12 V DC car battery (negative
ground)
1 A (CD playback)
1 5 A (during disc loading or
eject)
'--10C to 50C (15"F to
120°F)
Approx 178 x 50 x155 mm
(w/h/d) (71/3 x 2 x 61/5 in.) not
incl. proiecting parts and
controls
Approx. 1.5 kg (3 lb 5 oz.)
Design and specmoations subject to change without
notice
FM/AM COMPACT DISC PLAYER
ONY;
