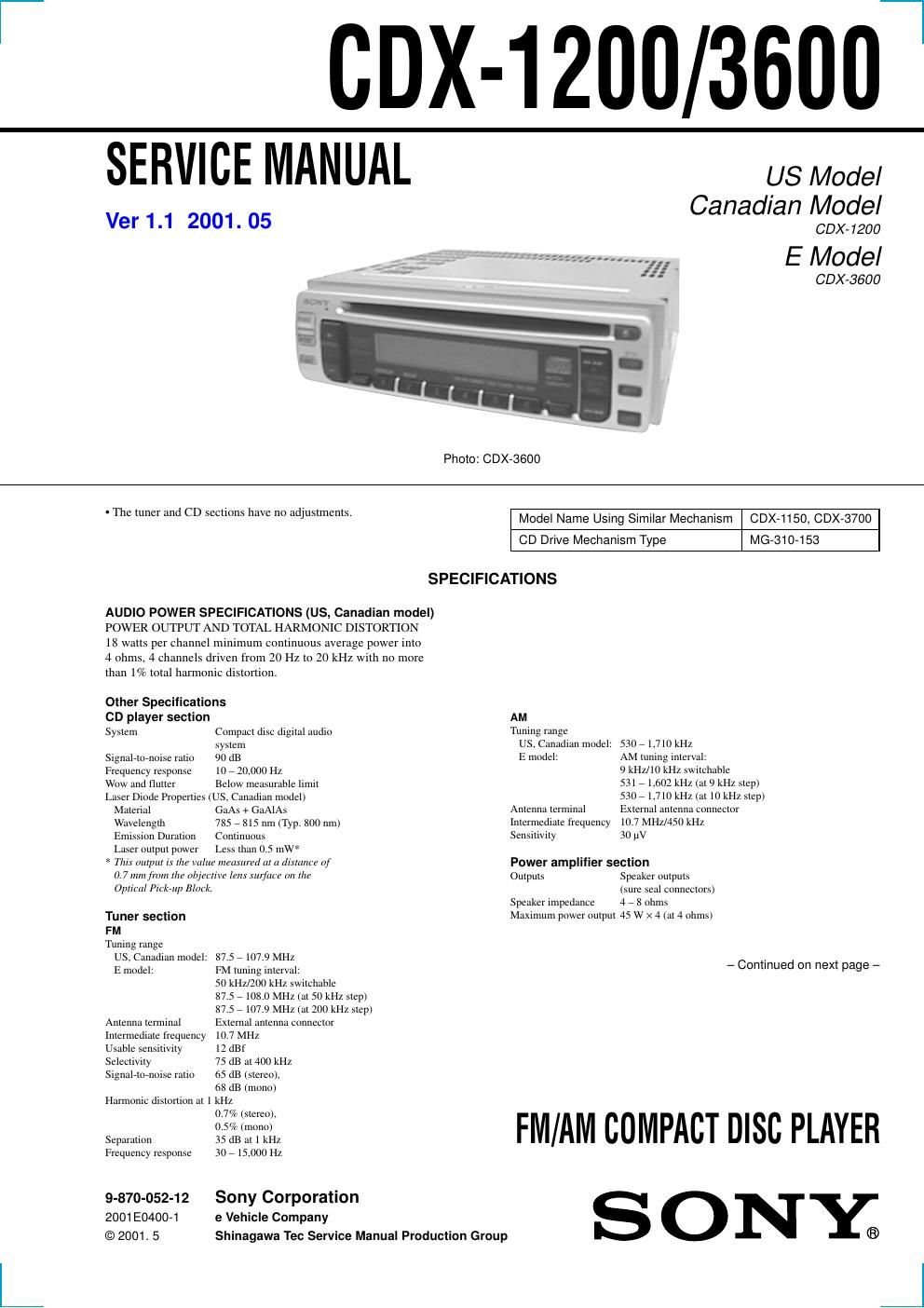

TABLE OF CONTENTS
1. GENERAL
Location of controls ................................................................ 3
Getting Started ........................................................................ 3
Setting the clock ..................................................................... 3
CD Player ................................................................................ 3
Radio ....................................................................................... 3
Other Functions ...................................................................... 4
Connections ............................................................................ 5
2. DISASSEMBLY
2-1. Front Panel Assy ................................................................. 7
2-2. Key Board ........................................................................... 7
2-3. Main Sub Assy .................................................................... 8
2-4. CD Mechanism Block ......................................................... 8
2-5. Heat Sink ............................................................................. 9
2-6. Chassis (R) Block Assy ....................................................... 9
2-7. Floating Block Assy .......................................................... 10
2-8. Roller Arm Assy ................................................................ 10
2-9. Optical Pick-up Block ....................................................... 11
3. DIAGRAMS
3-1. IC Pin Description ............................................................. 12
3-2. Block Diagram ÐMain SectionÐ ........................................ 14
3-3. Block Diagram ÐDisplay SectionÐ .................................... 15
3-4. Printed Wiring Boards ÐMain SectionÐ ............................ 16
3-5. Schematic Diagram ÐMain Section (1/3)Ð ........................ 18
3-6. Schematic Diagram ÐMain Section (2/3)Ð ........................ 19
3-7. Schematic Diagram ÐMain Section (3/3)Ð ........................ 20
3-8. Schematic Diagram ÐDisplay SectionÐ ............................. 21
3-9. Printed Wiring Board ÐDisplay SectionÐ .......................... 22
4. EXPLODED VIEWS
4-1. Chassis Section ................................................................. 25
4-2. Front Panel Section ........................................................... 26
4-3. CD Mechanism Section (1) ............................................... 27
4-4. CD Mechanism Section (2) ............................................... 28
5. ELECTRICAL PARTS LIST ........................................ 29
SERVICE NOTE
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herein may result in haz-
ardous radiation exposure.
Notes on Chip Component Replacement
·Never reuse a disconnected chip component.
·Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR
BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-up
block. Therefore, when checking the laser diode emission, observe
from more than 30 cm away from the objective lens.
GeneralOutputs Audio output
Power amplifier control
lead
Power antenna relay control
lead
Tone controls Bass ±8 dB at 100 Hz
Treble ±8 dB at 10 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 ´ 50 ´ 178 mm
(7
1/8 ´ 2 ´ 7 1/8 in.)
(w/h/d)
Mounting dimensions Approx. 182 ´ 53 ´ 162 mm
(7
1/4 ´ 2 1/8 ´ 6 1/2 in.)
(w/h/d)
Mass Approx. 1.2 kg (2 lb. 10 oz.)
Supplied accessories Parts for installation and
connections (1 set)
Design and specifications are subject to change without
notice.
ATTENTION AU COMPOSANT AYANT RAPPORT
Ë LA SƒCURITƒ!!
LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT
CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY
DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU
DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY. SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
