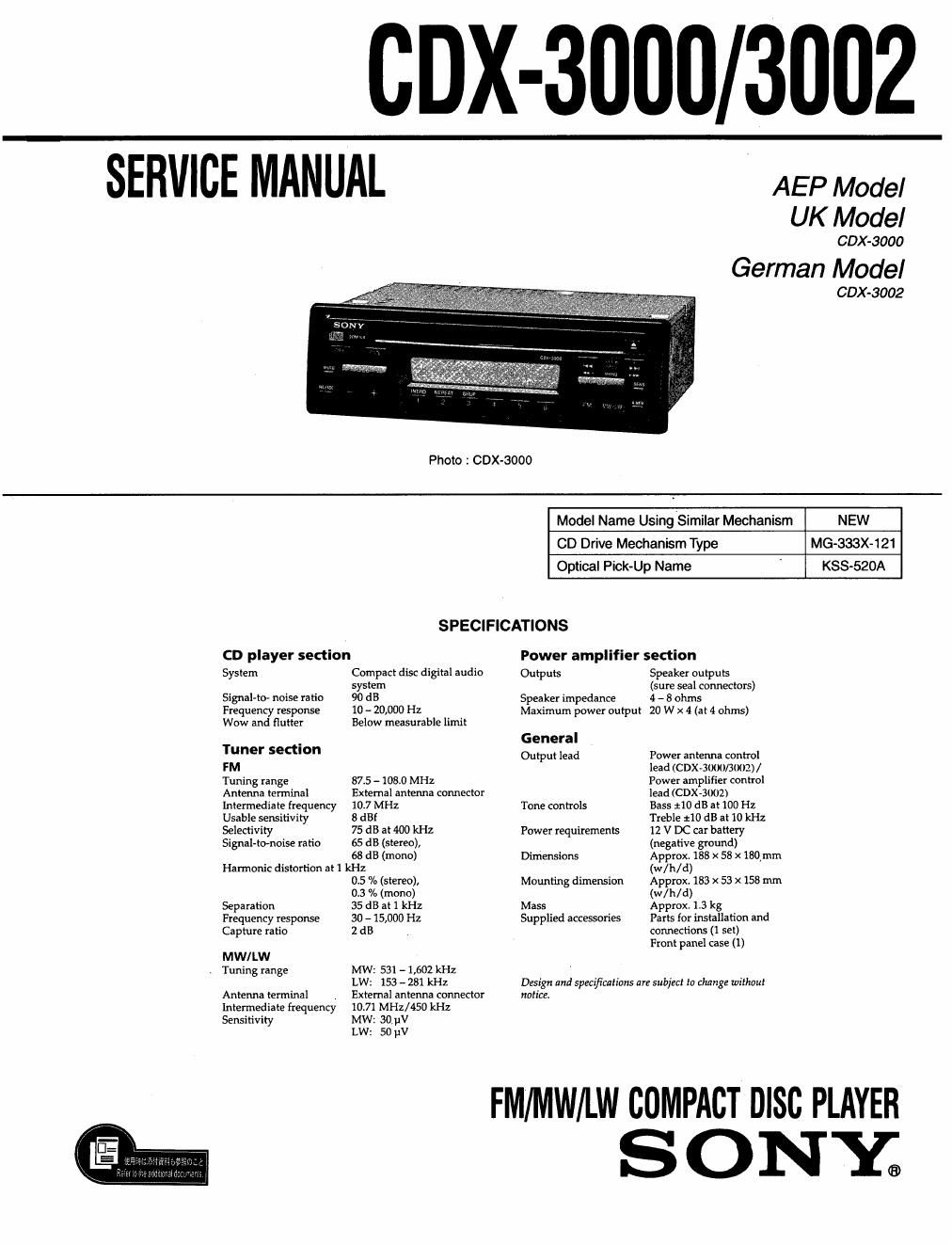

Page 1

CDX-3000/3002

SERVICE MANUAL AEP Model

UK Model

COX-3000
German Model
CDX-3002
Photo : COX-3000
Model Name Using Similar Mechanism NEW
CD Drive Mechanism Type MG-333X-121
Optical Pick-Up Name KSS-520A

SPECIFICATIONS
CD player section Power amplifier section
System Compact disc digital audio Outputs Speaker outputs
system (sure seal connectors)
Signal-to- noise ratio 90 dB Speaker impedance 4 - 8 ohms
Frequency response 10 - 20,000 Hz Maximum power output 20 W x 4 (at 4 ohms)
Wow and flutter Below measurable linu't
. General
Tuner section Output lead Power antenna control
FM lead (CDX-thli/BOUZV
Tuning range 875 - 1080 MHZ Power amplifier control
Antenna terminal External antenna connector lead (CDX-ZMXYZ)
Intermediate frequency 1047 MHz Tone controls Bass :10 dB at 100 Hz
Usable sensitivity 8 dB! Treble 110 dB at 10 kHz
Selectivity 75 dB at 400 kHz Power requirements 12 V DC car battery
Signal-to-mise ratio 65 dB (stereo), (negative ground)
63 d3 (mono) Dimensions Approx. 188 x 58 x isolmm
Harmonic distortion at 1 kHz (w/h/d)
0.5 % (stereo), Mounting dimension Approx. 183 x 53 X 158 mm
03 % (mono) (w/h/d)
Separation 35 dB at 1 kHz Mass Approx, 1.3 kg
Frequency response 30 - 15,000 Hz Supplied accessories Parts for installation and
Capture ratio 2 dB connections (1 set)
Front panel case (1)
MW/LW
Tuning range MW: 531 - 1,602 kHz
LW: 153 - 281 kHz Design and specifications are subject to change without
Antenna terminal External antenna connector notice.
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity MW: 341w

LW: souv

FM/MW/LW COMPACT IIIsc PLAYER
S ONY®

Page 2

5-l.

TABLE OF CONTENTS

GENERAL

Location of Controls 3

Installation 4

Connections .. 5

DISASSEMBLY ...................................................... 7

TEST MODE ........................................................... l l

ELECTRICAL ADJUSTMENTS

Tuner Section .................................................................. 1 1

CD Section ...................................................................... 13

DIAGRAMS

IC Pin Function Description .......................................... 14
5-2. Printed Wiring Boards

- Mechanism Deck Section - ............................... 16
5-3. Schematic Diagram - Mechanism Deck Section 19
5-4. Schematic Diagram - Main Section - 23
5-5. Printed Wiring Board - Main Section - 27
5-6. Printed Wiring Board - Display Section - 29
5-7. Schematic Diagram - Display Section - .. . 31

EXPLODED VIEWS ................................................ 36

ELECTRICAL PARTS LIST ............................... 41

' TYPE AITYPE B Discrimination
COX-3000

e36) C35: |C-��|

russnso -'

SONY. mm: cox-3000
FM/MW/LW COMPACT Disc PLAYER
CLASS 1

LASER PRODUCT

W

|
TYPE A: MADE IN JAPAN
TYPE B: Not mentioned

CDX-3002

LINE-OURREAR 1
rev

Q U

SONY-
FM/MW/LW COMPACT DISC PLAYER

EZZZflZZZZl

FusstisAI -

mm no (EM-3002

1

TYPE A: MADE IN JAPAN
TYPE B: Not mentioned

ADDITHNAL

SEE

INFDRMATION

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL
PICK-UP BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer elec-
trostatic breakdown because of the potential difference gen-
erated by the charged electrostatic load, etc. on clothing and
the human body.

During repair, pay attention to electrostatic breakdown and
also use the procedure in the printed matter which is included
in the repair parts.

The flexible board is easily damaged and should be handled
with care.

Laser Diode Properites

- Material: GaAlAs

- Wavelength: 780 nm

- Emission Duration: continuous

. Laser Output Power: less than 44.6 uW*

* This output is the value measured at a distance of 200mm

from the objective lens surface on the Optical Pick-up
Block.

CAUTION

Use of controls or adjustments or performance of pro-
cedures other than those specified herein may result in
hazardous radiation exposure.

Flexible Circuit Board Repairing

0 Keep the temperature of the soldering iron around 270 C
during repairing

0 Do not touch the soldering iron on the same conductor of
the circuit board (within 3 times).

0 Be careful not to apply force on the conductor when solder-
ing or unsoldering.

Notes on chip component replacement

0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.

SAFETY-RELATED COMPONENT WARNING"

COMPONENTS lDElN11FIED BY MARK A OR DOI'I'ED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
