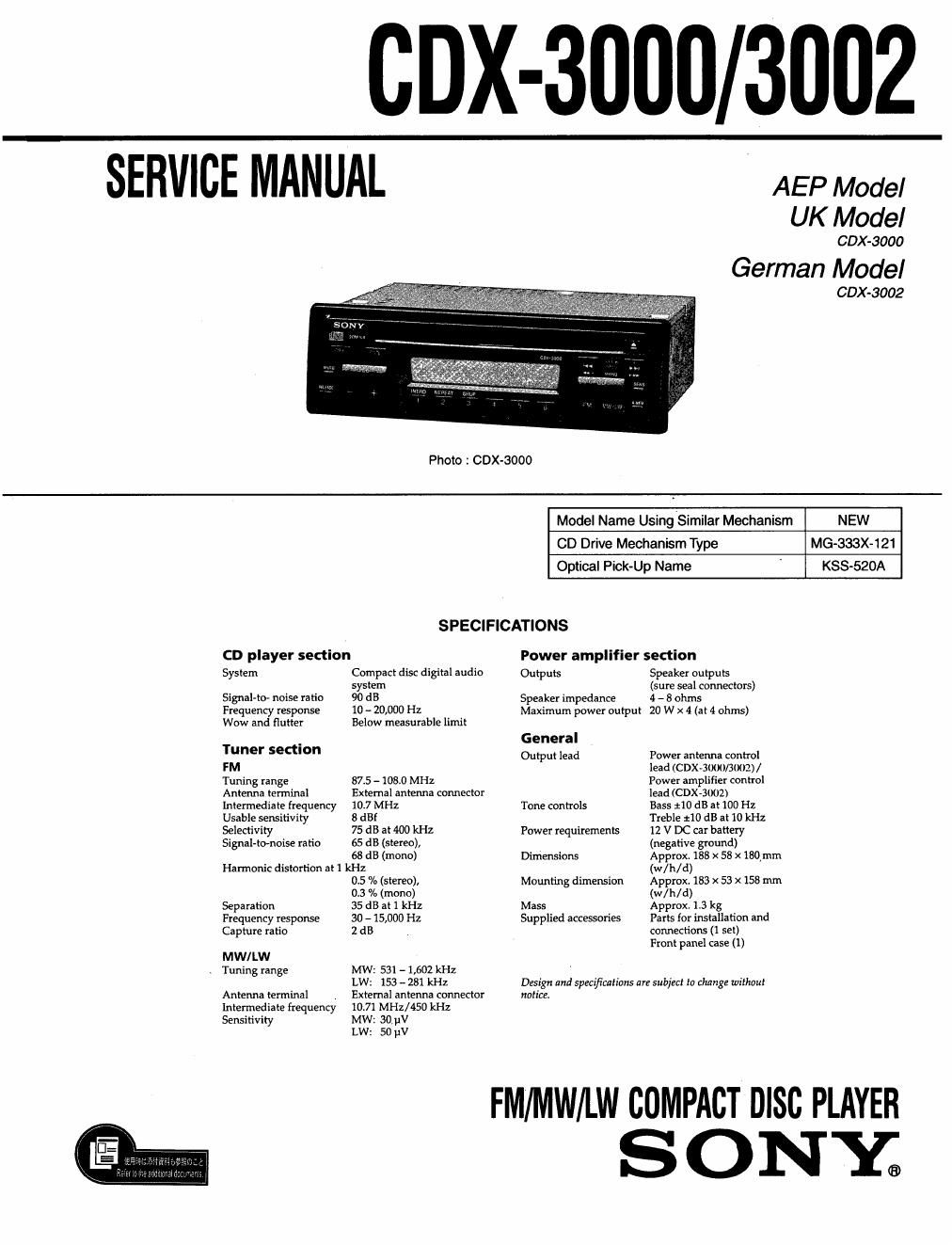

CDX-3000/3002
SERVICE MANUAL AEP Model
UK Model
COX-3000
German Model
CDX-3002
Photo : COX-3000
Model Name Using Similar Mechanism NEW
CD Drive Mechanism Type MG-333X-121
Optical Pick-Up Name KSS-520A
SPECIFICATIONS
CD player section Power amplifier section
System Compact disc digital audio Outputs Speaker outputs
system (sure seal connectors)
Signal-to- noise ratio 90 dB Speaker impedance 4 - 8 ohms
Frequency response 10 - 20,000 Hz Maximum power output 20 W x 4 (at 4 ohms)
Wow and flutter Below measurable linu't
. General
Tuner section Output lead Power antenna control
FM lead (CDX-thli/BOUZV
Tuning range 875 - 1080 MHZ Power amplifier control
Antenna terminal External antenna connector lead (CDX-ZMXYZ)
Intermediate frequency 1047 MHz Tone controls Bass :10 dB at 100 Hz
Usable sensitivity 8 dB! Treble 110 dB at 10 kHz
Selectivity 75 dB at 400 kHz Power requirements 12 V DC car battery
Signal-to-mise ratio 65 dB (stereo), (negative ground)
63 d3 (mono) Dimensions Approx. 188 x 58 x isolmm
Harmonic distortion at 1 kHz (w/h/d)
0.5 % (stereo), Mounting dimension Approx. 183 x 53 X 158 mm
03 % (mono) (w/h/d)
Separation 35 dB at 1 kHz Mass Approx, 1.3 kg
Frequency response 30 - 15,000 Hz Supplied accessories Parts for installation and
Capture ratio 2 dB connections (1 set)
Front panel case (1)
MW/LW
Tuning range MW: 531 - 1,602 kHz
LW: 153 - 281 kHz Design and specifications are subject to change without
Antenna terminal External antenna connector notice.
Intermediate frequency 10.71 MHz/450 kHz
Sensitivity MW: 341w
LW: souv
FM/MW/LW COMPACT IIIsc PLAYER
S ONY®
