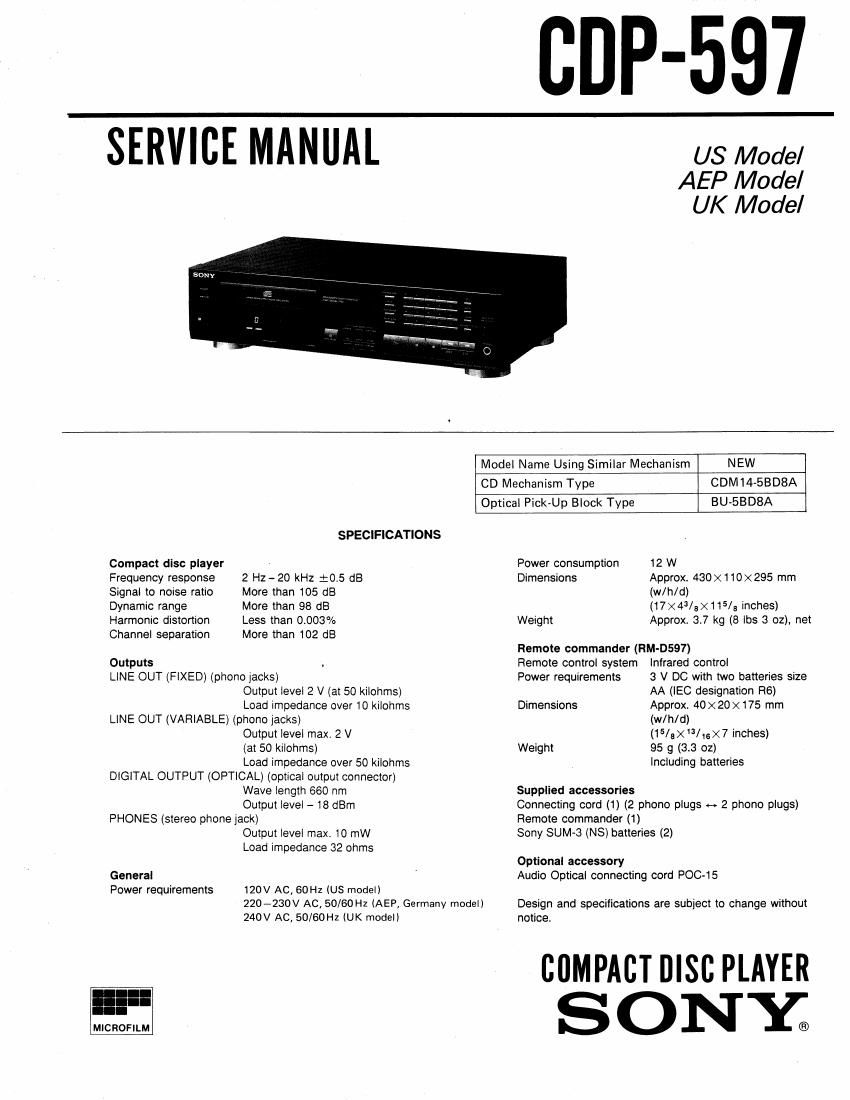

GDP-597
SERVICE MANUAL
U8 Model
AEP Model
UK Model
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM14-SBDBA
Optical Pick-Up Block Type BU-SBD8A
SPECIFICATIONS
Compact disc player
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
2 Hz-20 kHz :05 dB
More than 105 dB
More than 98 dB
Less than 0.003%
More than 102 dB
Outputs
LINE OUT (FIXED) (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
LINE OUT (VARIABLE) (phone jacks)
Output level max. 2 V
(at 50 kilohms)
Load impedance over 50 kilohms
DIGITAL OUTPUT (OPTICAL) (optical output connector)
Wave length 660 nm
Output level - 18 dBm
PHONES (stereo phone Jack)
Output level max. )0 mW
Load impedance 32 ohms
General
Power requirements 120V AC, 60H2 (US model)
2207230V AC, 50/60 Hz (AEP, Germany model]
240V AC, 50/60Hz (UK model)
MICROFILM
Power consumption 12 W
Dimensions Approx. 430x110><295 mm
(w/h/d)
(17x43/sx115/5 inches)
Weight Approx. 3.7 kg (8 lbs 3 oz), net
Remote commander (RM-D597)
Remote control system Infrared control
Power requirements 3 V DC with two batteries size
AA (IEC designation R6)
Dimensions Approx, 40X20>< 175 mm
(w/h/d)
(15/8X 3/1e>< 7 inches)
Weight 95 g (3.3 oz)
Including batteries
Supplied accessories
Connecting cord (1) (2 phono plugs H 2 phone plugs)
Remote commander (1)
Sony SUM-3 (NS) batteries (2)
Optional accessory
Audio Optical connecting cord FOG-15
Design and specifications are subject to change without
notice.
chPAcinisc PLAYER
SONY;
