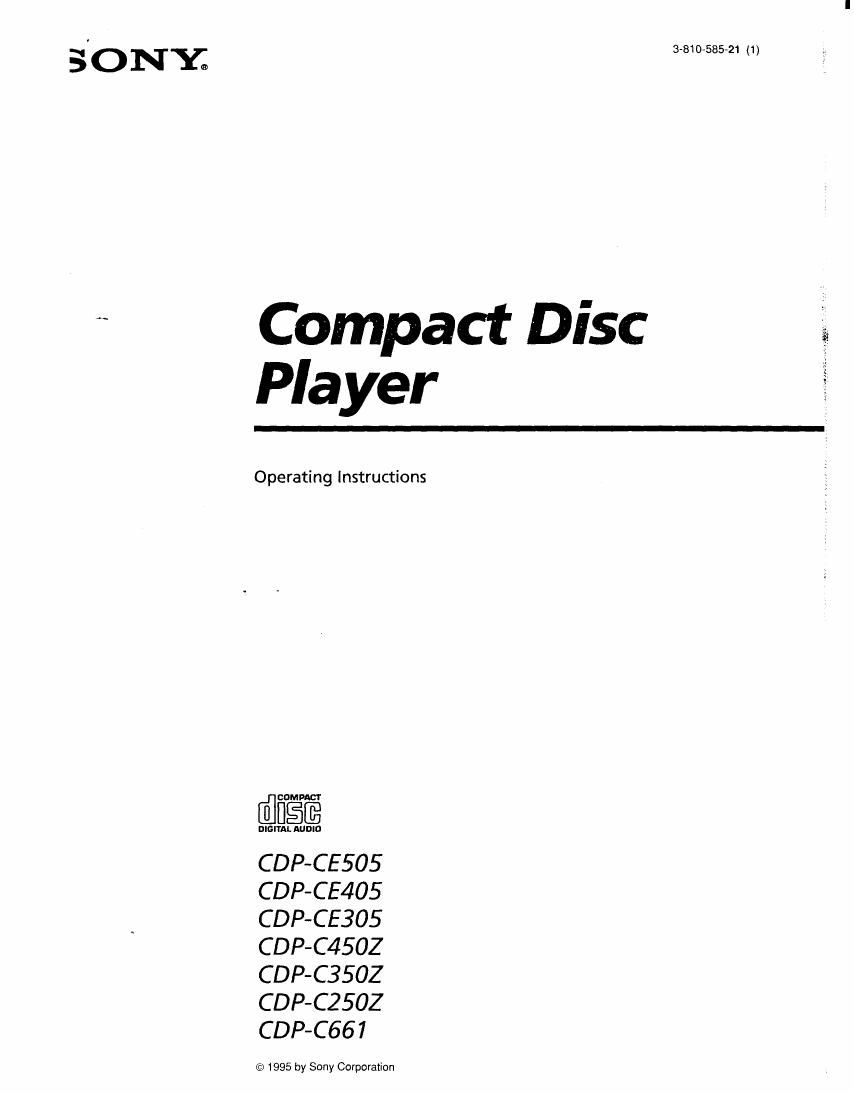

Sony CDP CE350Z Owners Manual

Page 2

To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.

To avoid electrical shock,
do not open the cabinet.
Refer servicing to

qualified personnel only. ,

This symbol is intended to alert
the user to the presence of .
uninsulated dangerous voltage
within the produch enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.

This symbol is intended to alert
A the user to the presence of

important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.

INFORMATION

This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:

- Reorient or relocate the receiving
antenna.

v Increase the separation between the
equipment and receiver.

- Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.

A Consult the dealer or an experienced
radio/ TV technician for help.

CAUTION

You are cautioned that any changes or
modification not expressly approved in
this manual could void your authority to
operate this equipment.

Owner's Record .

The model and serial numbers are
located at the rear of the unit.

Record the serial number in the space
provided below. Refer to them whenever
you call upon your Sony dealer
regarding this product.

Model No.
Serial No.
For the customers in Australia

The following caution label is located
inside the unit.

W 5"..mtmummfd "W
WWW - mmyflmwmmhm
5-hmsfl ; W w m

Wm

This appliance is classified as a CLASS 1
LASER product.

The CLASS 1 LASER PRODUCT
MARKING is located on the rear
exterior.

CLASS 1 LASER PRODUCT
LUOKAN I LASEFILAITE

KLASS l LASERAPFAHAT

-
Precautions

0n safety

0 Caution i The use of optical
instruments with this product will
increase eye hazard,

0 Should any solid object or liquid fall
into the cabinet, unplug the player and
have it checked by qualified personnel
before operating it any further.

0n power sources

' Before operating the player, check that
the operating voltage of the player is
identical with your local power
supply. The operating voltage is
indicated on the nameplate at the rear
of the player.

The player is not disconnected from
the AC power source (mains) as long
as it is connected to the wall outlet,

even if the player itself has been
turned off.

' If you are not going to use the player
for a long time, be sure to disconnect
the player from the wall outlet. To
disconnect the AC power cord (mains
lead), grasp the plug itself; never pull
the cord.

0 AC power cord must be changed only
at the qualified service shop.

0n placement

0 Place the player in a location with

adequate ventilation to prevent heat

build-up in the player,

Do not place the player on a soft

surface such as a rug that might block

the ventilation holes on the bottom.

- Do not place the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.

0n operation

0 If the player is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense on the lenses inside the
player. Should this occur, the player
may not operate properly. In this case,
remove the disc and leave the player
turned on for about an hour until the
moisture evaporates.

0n adjusting volume

- Do not turn up the volume while
listening to a portion with very low
level inputs or no audio signals. If you
do, the speakers may be damaged
when a peak level portion is played.

0n cleaning

Clean the cabinet, panel and controls
with a soft cloth slightly moistened
with a mild detergent solution. Do not
use any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzinc.

If you have any questions or
problems concerning your player,
please consult your nearest Sony
d ealer.

Page 11

Q You can start Shuffle Play while playing
Press SHUFFLE, and Shuffle Play starts from the current
track.

I" You can specify discs during Shuffle Play (Select
Shuffle Play)
You can specify discs during ALL DISCS Shuffle Play
mode, and the tracks on the specified discs are played in
a random order.
Press DISC 1 - 5 to specify the discs after Step 1.
Semicircles appear around the specified disc numbers in
the display. To cancel the selected discs, press DISC 1 v 5
again. The semi~circles disappear.
To return to ALL DISCS Shuffle Play, press SHUFFLE
twice.

Shuffle Play on one disc

You can play all tracks on the specific disc in a random
orderl

1 Press SHUFFLE repeatedly until 1 DISC appears
in the display.

2 Press Disc 1 - 5 to start 1 DISC Shuffle Play on
the selected disc
The T l, indication appears while the player is
shuffling" the tracks.

To cancel Shuffle Play
Press CONTINUE

Q You can start Shuffle Play while playing
Press SHUFFLE, and Shuttle Play starts from the Current
track.

Playing CDs

-
Creating Your Own Program
(Program Play)

You can arrange the order of the tracks on the discs

and create your own programV The program can
contain up to 32 tracks.

PROGRAM CHECK CLEAR l> I

DISC 1 - 5 Number buttons >10

1 Press PROGRAM,
"PROGRAM" appears in the display
It a program is already stored, the last step of the
program appears in the display When you want to
erase the whole program, hold down CLEAR until
ALL CLr" appears in the display (see page 12)

2 Press DISC I - 5 to select the disc.

gauze ;::;s
lFlL lat!

noon»:

AL" in the display stands for all tracks.
When you want to program the whole disc as one
step, skip Step 3 and go to Step 4.

3 Press the number buttons of the tracks you want to

program in the order you want.
To program the track numbered over 10, use the
>10 button (see page 10).

Last programmed
track

Playing order

L9
5 3

After one second Programmed
tracks

mm Mn;
1

(92 3 l 5 V1 WW}?

m... n m w [2; 1 a
l

l 5 .23. :B.

Tonal playing time

If youve made a mistake
Press CLEAR, then press the correct number button.

(Continued)
