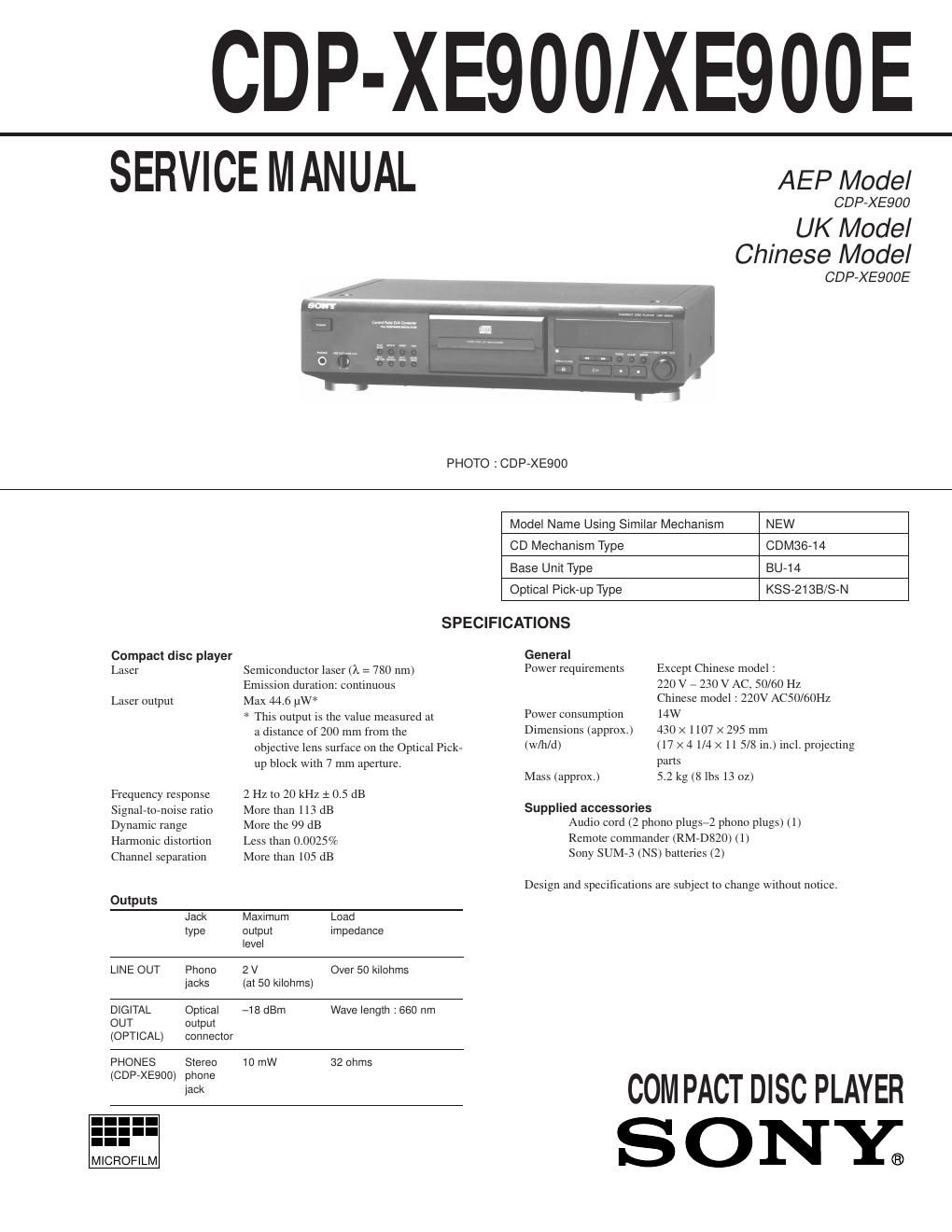

Page 1
Ñ 2 Ñ
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
CAUTIONUse of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.
TABLE OF CONTENTS
1. SERVICING NOTE
........................................................... 3
2. GENERAL.................................................................... 4
3. DISASSEMBLY
3-1. Front Panel Assembly ......................................................... 5
4. TEST MODE................................................................. 6
5. ELECTRICAL BLOCK CHECKING......................... 8
6. DIAGRAMS
6-1. Circuit Boards Location ................................................... 10
6-2. Schematic Diagram Ñ Main Section Ñ .......................... 11
6-3. Printed Wiring Board Ñ Main Section Ñ ....................... 15
6-4. Schematic Diagram Ñ BD Section Ñ ............................. 20
6-5. Printed Wiring Board Ñ BD Section Ñ .......................... 23
6-2. IC Pin Function
¥ IC801 System Control,
Fluorescent Indicator Tube Drive (CXP82316-069Q) .. 26
7. EXPLODED VIEWS
7-1. Case Section ..................................................................... 27
7-2. Chassis Section ................................................................. 28
7-3. CD Mechanism Section (CDM36-14) .............................. 29
7-4. Base Unit Section (BU-14) ............................................... 30
8. ELECTRICAL PARTS LIST ........................................ 31
The laser component in this product
is capable of emitting radiation
exceeding the limit for Class 1.
MODEL IDENTIFICATION
Ñ BACK PANEL Ñ
4-983-973-1¹: XE900 (AEP, German) model
4-983-973-2¹: XE900E (UK) model
4-983-973-3¹: XE900E (Chinese) model
(XE900E)
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK ! OR DOT-
TED LINE WITH MARK ! ON THE SCHEMATIC
DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL
TO SAFE OPERATION. REPLACE THESE COMPO-
NENTS WITH SONY PARTS WHOSE PART NUM-
BERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY. Notes on chip component replacement
¥ Never reuse a disconnected chip component.
¥ Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
¥ Keep the temperature of soldering iron around 270ûC during
repairing.
¥ Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
¥ Be careful not to apply force on the conductor when soldering
or unsoldering.
ADVARSEL :
USYNLIG LASERSTRÅLING VED ÅBNING NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE
FOR STRÅLING.
CAUTION :
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
VARO! :
AVAT TAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALT-
TIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING :
OSYNLIG LASERSTRÅLING NÄR DENNA DEL ÄR ÖPP-
NAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN.
VORSICHT : UNSICHTBARE LASERSTRAHLUNG, WENN
ABDECKUNG GEÖFFNET UND SICHEREITSVERRIEGELUNG ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN.
ADVARSEL :
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG
SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
(XE900)
This caution
label is located
inside the unit.This caution
label is located
inside the unit.
Page 2
Ñ 3 Ñ
SECTION 1
SERVICING NOTE
HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH
TURNS OFF
Insert a screwdriver into the aperture of the unit bottom, and
move it in the direction of arrow.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-up
block. Therefore, when checking the laser diode emission, observe
from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION CHECK
Carry out the ÒS curve checkÓ in ÒCD section adjustmentÓ and check
that the S curve waveform is output two times.
