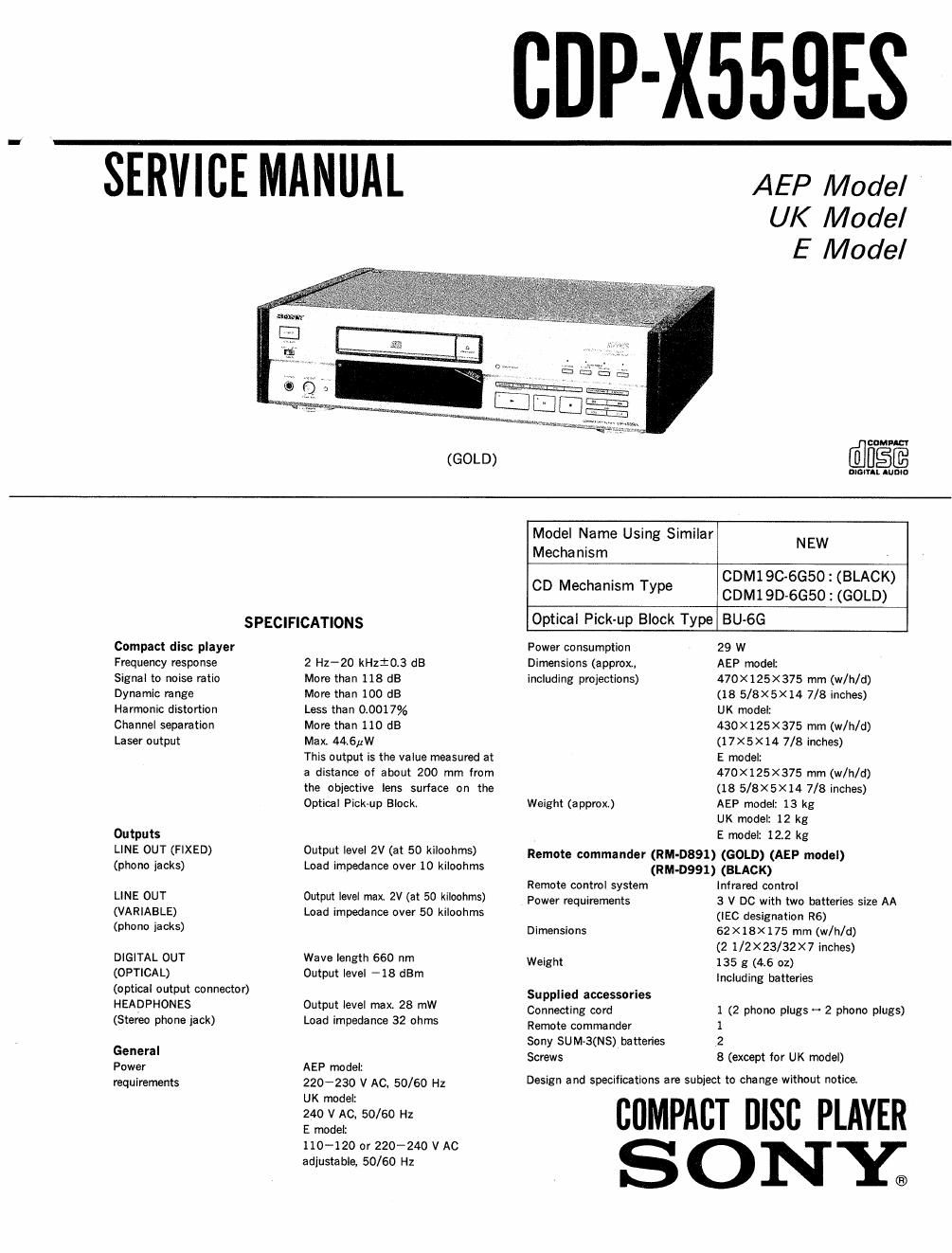

Sony cdp x 559 es service manual

Page 2

cop-xssees

TABLE OF CONTENTS

Section Title Page
1. GENERAL
1_1' Identifying the Parts .............................................. 3

2. ELECTRICAL BLOCK CHECKING

5

3. DIAGRAMS
3.1. Block Diagram ...................................................... 7
3-2. Circuit Boards Location -----
3-3. Printed Wiring Boards
3-4. Schematic Diagram ~~~~~~~
3-5. Semiconductor Lead Layouts -~

4. EXPLODED VIEWS
4.1. Cabinet Section ...................................................... 23
4-2. Front Panel Section

4-3. Chassis Section ~~~~~~~~
4-4. CD Mechanism Block Section "
4-5. Base Unit Section

5. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 28

For the United Kingdom and

European countries
is classified as 3 CLASS 1
cuss I LASER PRODUCT LASER product.
LUOKAN 1 LASERLAITE

- The CLASSl LASER
KMSSLASERAPPAHAT l PRODUCT label is located
-..-J

on the rear exterior.

This Compact Disc player

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di- .
ference generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission, observe from more
than 30cm away from the objective lens.

MODEL IDENTIFICATION
-Model Number Label-

SONYo MODEL No, cop-xssees

COMPACT DISC PLAYER

WW

AEP model: AC: 220-230V~50/60Hz
UK model: AC: 24ov~50/60Hz
E model: Ac: 110, 120, 220, 240v~5o/60Hz 29w

SAFETV-R E LATED COMPONENT WARNING Il

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
