EDP-$7

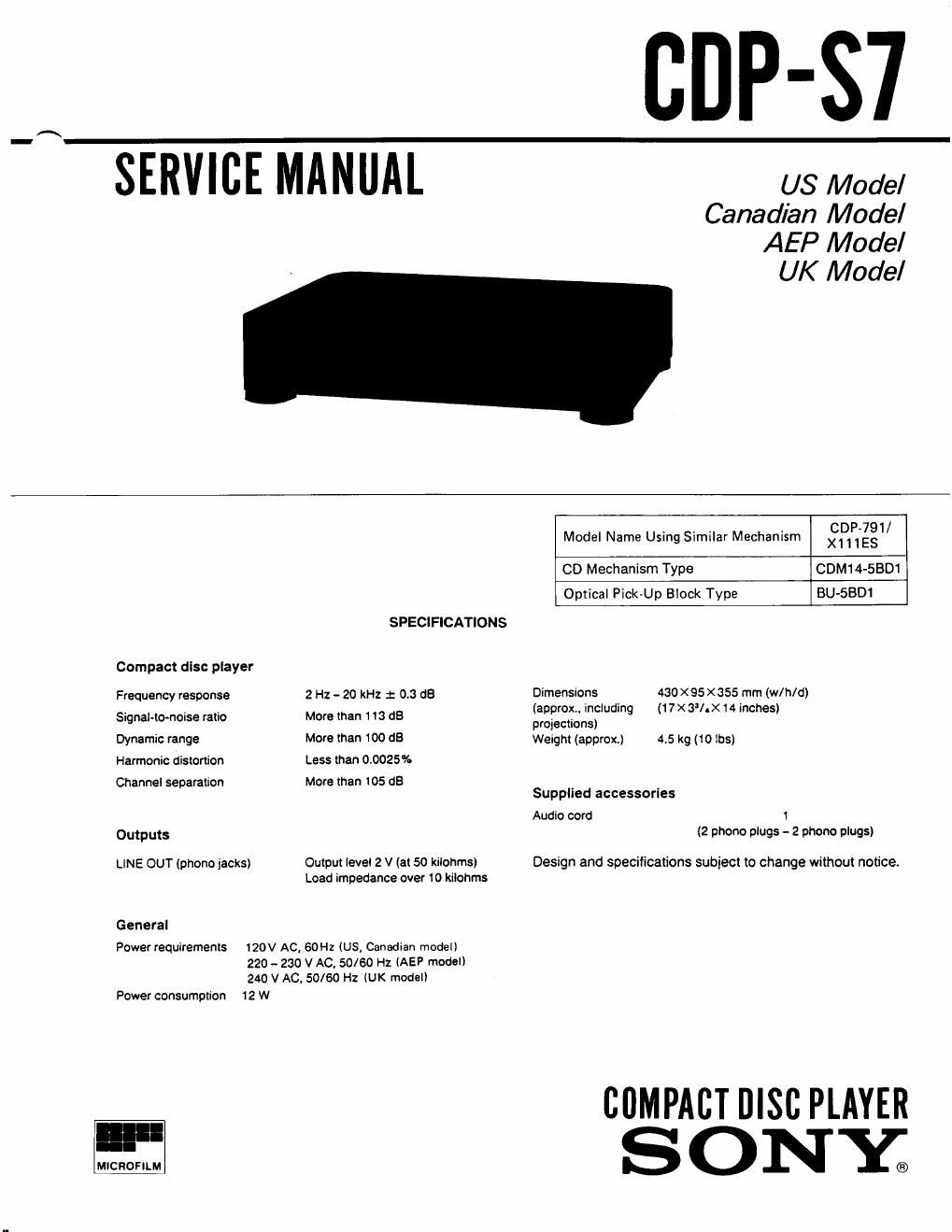

SERVICE MANUAL Mode,

Canadian Model
AEP Model
UK Model

Model Name Using Similar Mechanism £32232
CD Mechanism Type CDM1 4-5301
Optical Pick-Up Block Type BUv5BD1
SPECIFICATIONS
Compact disc player
Frequency response 2 Hz - 20 kHz 2 0.3 dB Dimensions 430 X 95 X355 mm (w/h/d)
Signal-lo-noise ratio More than 1 l 3 :38 (approx.. including (17 X TAX 1 inches)
projeclions)
Dynamic range More than 100 dB Walgm (approx,) 4.5 kg (10 lbs)
Harmonic distortion Less than 0,0025%
Channel separalion More than 105 dB
Supplied accessories
Audio cord 1
Outputs (2 phone plugs - 2 phone plugs)
LINE OUT (phono jacks) Oulpm level 2 v (at so kllonmsl Design and specifications subject lo change wilhoul notice.

Load impedance over 10 kilohms

General

Power requirements 120V AC, 60H: (US, Canadian model)
220 - 230 V AC. 50/60 Hz (AEP model)
240 V AC. 50/60 Hz (UK model)

Power consumption 12 W

m cAMPAcl msc PLAYER
