Sony cdp ex 100 service manual

This is the 23 pages manual for sony cdp ex 100 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 23
left right
sony cdp ex 100 service manual

Extracted text from sony cdp ex 100 service manual (Ocr-read)


Page 1

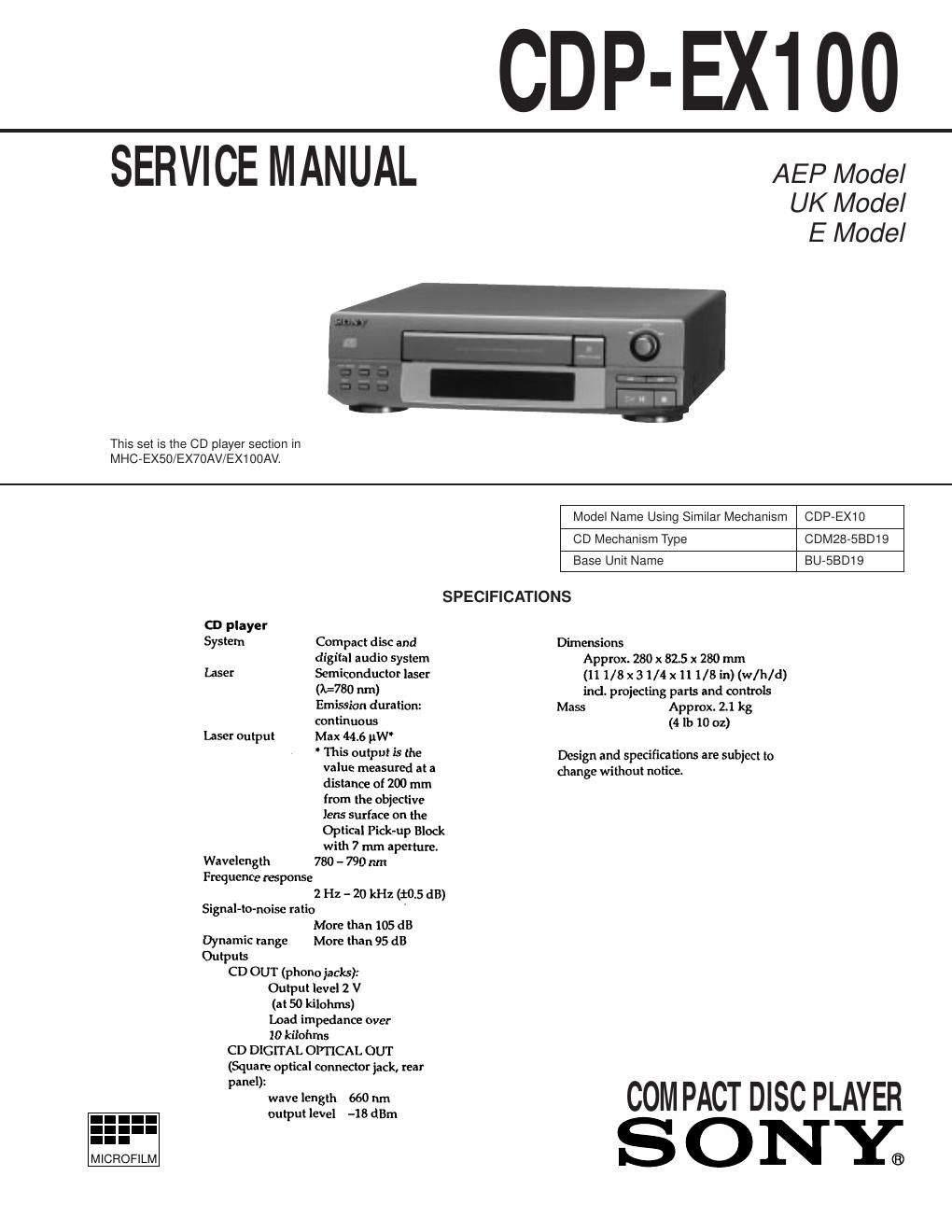

Ð 2 Ð The laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside of the unit. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. SERVICE NOTE .................................................................. 3 2. GENERAL ............................................................................. 4 3. DISASSEMBLY 3-1. Loading Panel .......................................................................... 4 3-2. MD Block ................................................................................ 5 3-3. Holder (BU) Assy .................................................................... 5 4. ELECTRICAL ADJUSTMENTS .................................... 6 5. DIAGRAMS 5-1. IC Pin Function ....................................................................... 8 5-2. Circuit Boards Location ........................................................ 10 5-3. Printed Wiring Board Ð BD Section Ð ................................... 11 5-4. Schematic Diagram Ð BD Section Ð ...................................... 13 5-5. Printed Wiring Boards Ð Main Section Ð .............................. 16 5-6. Schematic Diagram Ð Main Section Ð ................................... 19 6. EXPLODED VIEWS 6-1. Chassis Section ...................................................................... 26 6-2. Front Panel Section ............................................................... 27 6-3. CD Mechanism Section ......................................................... 28 6-4. Base Unit Section .................................................................. 29 7. ELECTRICAL PARTS LIST .......................................... 30 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Notes on Chip Component Replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens.
