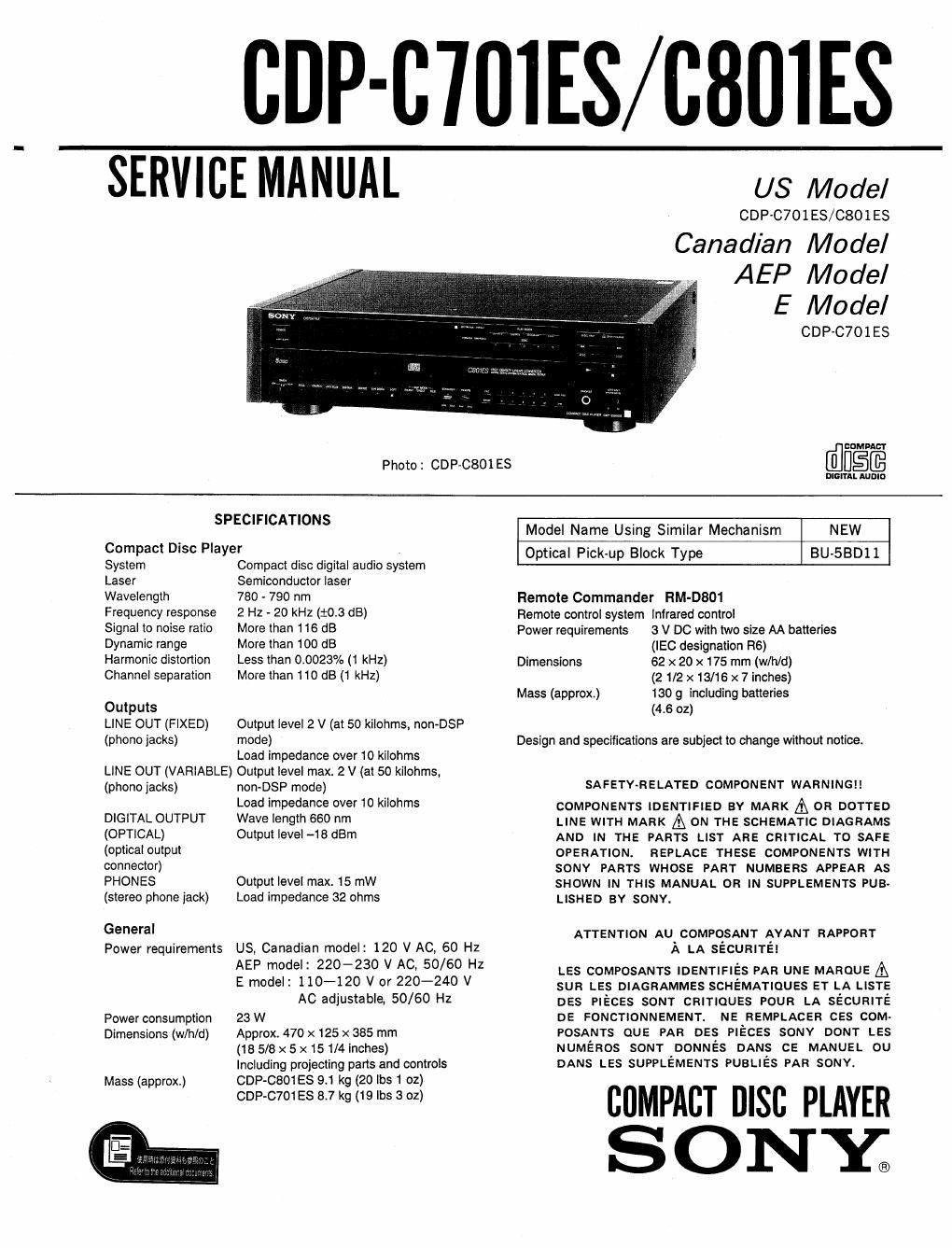

CDP-BIIIIES/CBUIES

SERVICE MANUAL

US Model

CDP-C701ES/0801ES
Canadian Model
AEP Model

E Model

CDP~C701ES
COMM
Photo: GDP-0801 ES dflgIB
DIUH'ALMJDID
SPE IFI
C CATIONS Model Name Using Similar Mechanism NEW
Compact Disc Player Optical Pick-up Block Type Bu-5Bo1 1
System Compact disc digital audio system
Laser Semiconductor laser
Wavelength 780 - 790 nm Remote Commander RM-D801
Frequency response 2 HZ 20 kHZ ($0.3 dB) Remote control system Infrared control
Signal 10 W56 ratio More than 115 dB Power requirements 3 v DC with two size AA batteries
Dynamic range More than 100 dB (IEC designation R6)
Harmonic distortion Less than 0.0023% (1 kHz) Dimensions 62 x 20 x 175 mm (wlh/d)

Channel separation

More than 110 dB (1 kHz)

(21/2 x 13/16 x 7 inches)

Mass (approx) 130 9 including batteries

Outputs
LINE OUT (FIXED) Output level 2 V (at 50 kiiohms, non-DSP
(phono jacks) mode)

Load impedance over 10 kilohms
LINE OUT (VARIABLE) Output level max. 2 V (at 50 kilohms,
(phone jacks) non-DSP mode)

Load impedance over 10 kilohms

DIGITAL OUTPUT Wave length 660 nm
(OPTICAL) Output level -18 dBm
(optical output

connector)

PHONES Output level max. 15 mW

(stereo phone jack) Load impedance 32 ohms

General

Power requirements US, Canadian model: 120 V AC, 60 Hz
AEP model: 220-230 V AC, 50/60 Hz
E model: 110-120 V or 220-240 V

AC adjustable, 50/60 Hz

Power consumption 23 W

Dimensions (wlh/d) Approx. 470 x 125 x 385 mm

(18 5/8 x 5 x 15 1/4 inches)

Including projecting parts and controls

GDP-0801 Es 9.1 kg (20 lbs 1 oz)

GDP-c701 ES 8.7 kg (19 lbs 3 02)

Mass (approx)

(4.6 02)

Design and specifications are subject to change without notice

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AUACOMPO'SANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES scnéMATrouss ET LA LISTE
DES PIECES som cnmoues POUR LA sécum-ré
DE FONCTIONNEMENT. NE REMPLACER ces COM-
POSANTS oue PAR oss PIECES souv DONT LES
NUMEROS som- oonués DANS cs MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAR SONY.

cuMPAcr Disc PLAYER
S 0 NY;

Page 2

For the European Countries

Notes on the Transit Key
(and Red Lock Screw:

This appliance is classified as
a CLASS 1 LASER Product.
The CLASS 1 LASER

CLASS I LASER PRODUCT
LUOKAN 1 LASERLAITE

GDP-0801 ES only)

KLASS 1 LASERAFFARAT PRODUCT MARKING ls

Note

This appliance conforms with EEC Directive 87/308/EEC regarding

interference suppression.

The following caution label is located inside the unit.

CAUTION ; INVISIBLE LASER RADIATION WHEN OPEN,

AVOID EXPOSURE TO BEAM.

located on the rear exterior.

ADVARSEL: USYNLIG LASERSTFIALING veo ABNING NAR

SIKKEFIHEADSAFBRYDEFIE ER UDE AF FUNKTION.

UNDGA uos IE1'IELSE FOR STRALING.

VAROI
DLET ALTTllNA LASERSATEILYLLE.

; AVATI'AESSA JA SUOJALUKITUS OHITEIIAESSA

LASERSTRALINQ Nita DENNA DEL An OPPNAD
OCH SPARREN AR URXOPPLAD.

VARNING :

ADVERSEL: USYNLIG LASEHSTRALING NAFt DEKSEL APNES

UNNGA EKSPONERING FOR STRALEN.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential di-
ference generated by the charged electrostatic load,
etc. on clothing and the human body.

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed matter
which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to
be focused on the disc reflective surface by the objec-
tive lens in the optical pick-up block. Therefore, when
checking the laser diode emission, observe from more
than 30cm away from the objective lens.

9) Transit key

The transit key on the bottom of the
player protects the optical system
against shock during transportation.
Before operating the player, be sure to
remove the key by following the
instructions on the label, and keep it in a
safe place.

When transporting the player, re-install
the key by following the instructions
below.

1 Remove all the discs from the player.

2 Press 2 to close the disc tray and
waittory (or.§, .9 ...)' to
disappear in the display.

3 Turn the power off.

4 Insert the key into its original hole and
lock it in place.

b) Red lock screw (CDP-C801Es only)

Besides the transit key, the
CDP-CSO1ES has a red look screw on
the bottom. Belore operating the GDP-
0801 ES, be sure to remove the transit
key and red lock screw, and keep them
in a sate place.

When transporting the player, re-install
the screw and key by following the
instructions below.

1 Remove all the discs from the player.

2 Press DISC SKIP until the DISC 1
compartment is at the front position.

3 Press A to close the disc tray and
wait for " y " to disappear in the
display.

4 Turn the power off.

5 Re-install the red lock screw and
transit key.
