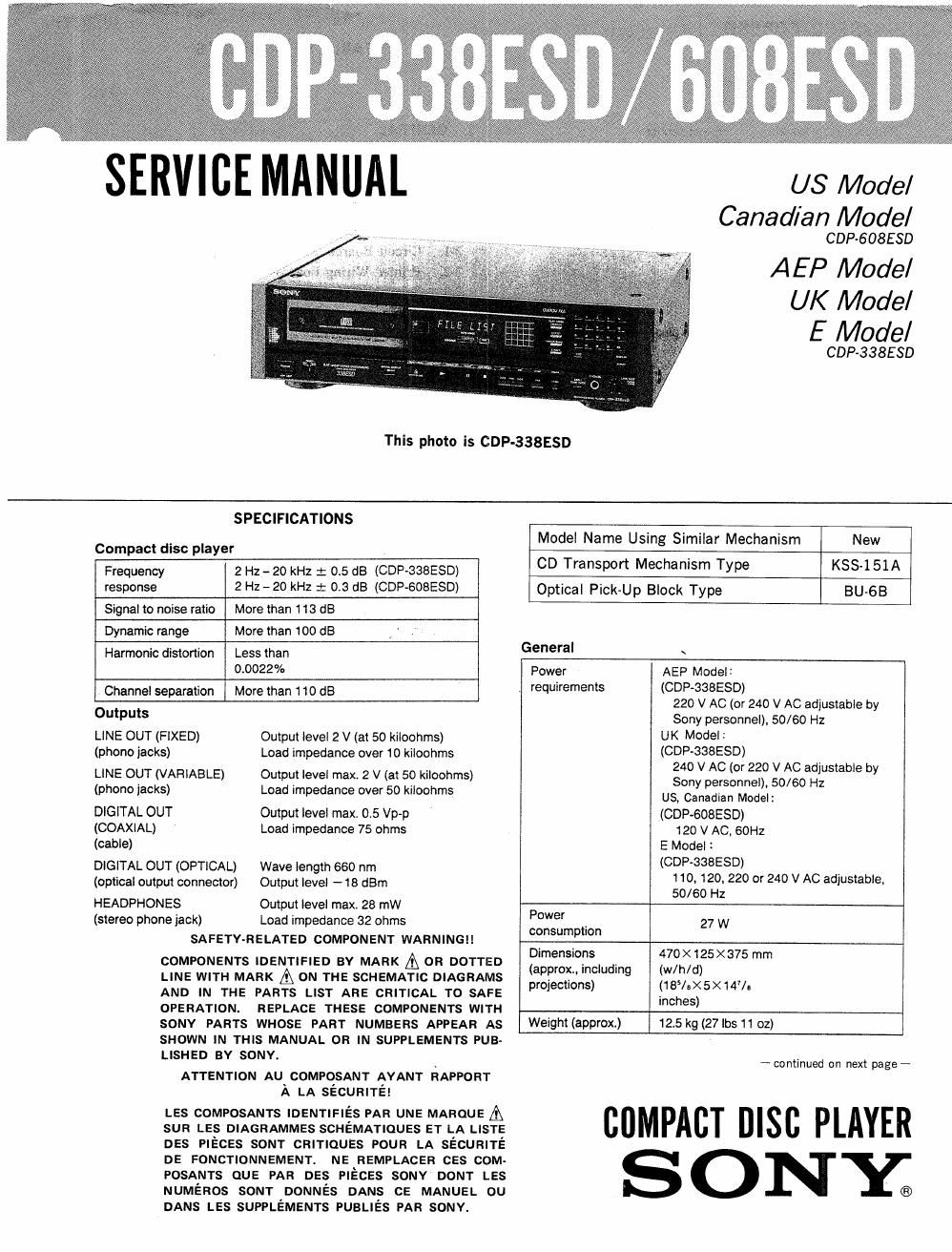

Sony cdp 608 esd service manual

This is the 20 pages manual for sony cdp 608 esd service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 20
left right
sony cdp 608 esd service manual

Extracted text from sony cdp 608 esd service manual (Ocr-read)


Page 2

CDP-338ESD/608ESD

Remote commander

Remote control system Inirared control

Power requirements 3 V DC with two batteries size AA
(lEC designation R6)

Dimensions 67 X 20 X175 mm (w/h/d)
(2/.>< "/uX 7 inches)

Weight 135 g (4.7 oz)

including batteries

Supplied accessories

Connecting cord 1
(2 phone plugs H 2 phone plugs)

Remote commander 1
Size AA batteries 2
Screws 4

Design and specifications subject to change without notice.

SAFETY CHECK-OUT

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST
The AC leakage from any exposed metal part to

earth ground and from all exposed metal parts It} any
exposed metal part having a return to chassis. must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

I. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers' instructions to use these instru-
ments.

to

A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.

TABLE OF CONTENTS

Section Title fig
1. GENERAL
1-1. Location of Controls ............................ 3
2. ELECTRICAL ADJUSTMENTS .................... 4
3. DIAGRAMS
31. Circuit Boards Location rrrrrrrrrrrrrrrrrrrrrrrr 7
3-2. Printed Wiring Boards ................ ,9
3-3. Schematic Diagram ............................ 13
3-4. Semiconductor Lead Layouts .................. 18

4. EXPLODED VIEWS

4-1. Cover Section rrrrrr

4-2. Front Panel Section

4-3. Chassis Section ................................ 23

44. Mechanism Section ............................ 24

4-5. Optical Pick-Up Block Section ................ 25
5. ELECTRICAL PARTS LIST ...................... 26

Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit indication is 0.75V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimetcrs that have a 2V AC range are
suitable. (See Fig, A}

F ig. A. Using an AC voltmeter to check AC leakage.

To Exposed Metal
Fair: on Set

A C
voltmeter
(0. 75 VI

0.15uF Ere/($2 /
'_____l

Earth Glaund

................................................................................ ..-.-._.-.-.-.-.-.-.-.-.-.-.-.-..

SERVICING NOTE

NOTES ON HANDLING THE OPTICAL PICK
UP BLOCK 0R BASE UNIT

The laser diode in the optical pick-up block may
suffer electrostatic breakdown because of the poten-
tial difference generated by the charged electrostatic

load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-
down and also use the procedure in the printed
matter which is included in the repair parts.

The flexible board is easily damaged and should be
handled with care.

CAUTION

Use of controls or adjustments or performance
of procedures other than those specified herein
may result in hazardous radiation exposure,

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective
lens in the optical pick-up block. Therefore, when check-
ing the laser diode emission, observe from more than 30
cm away from the objective lens.
