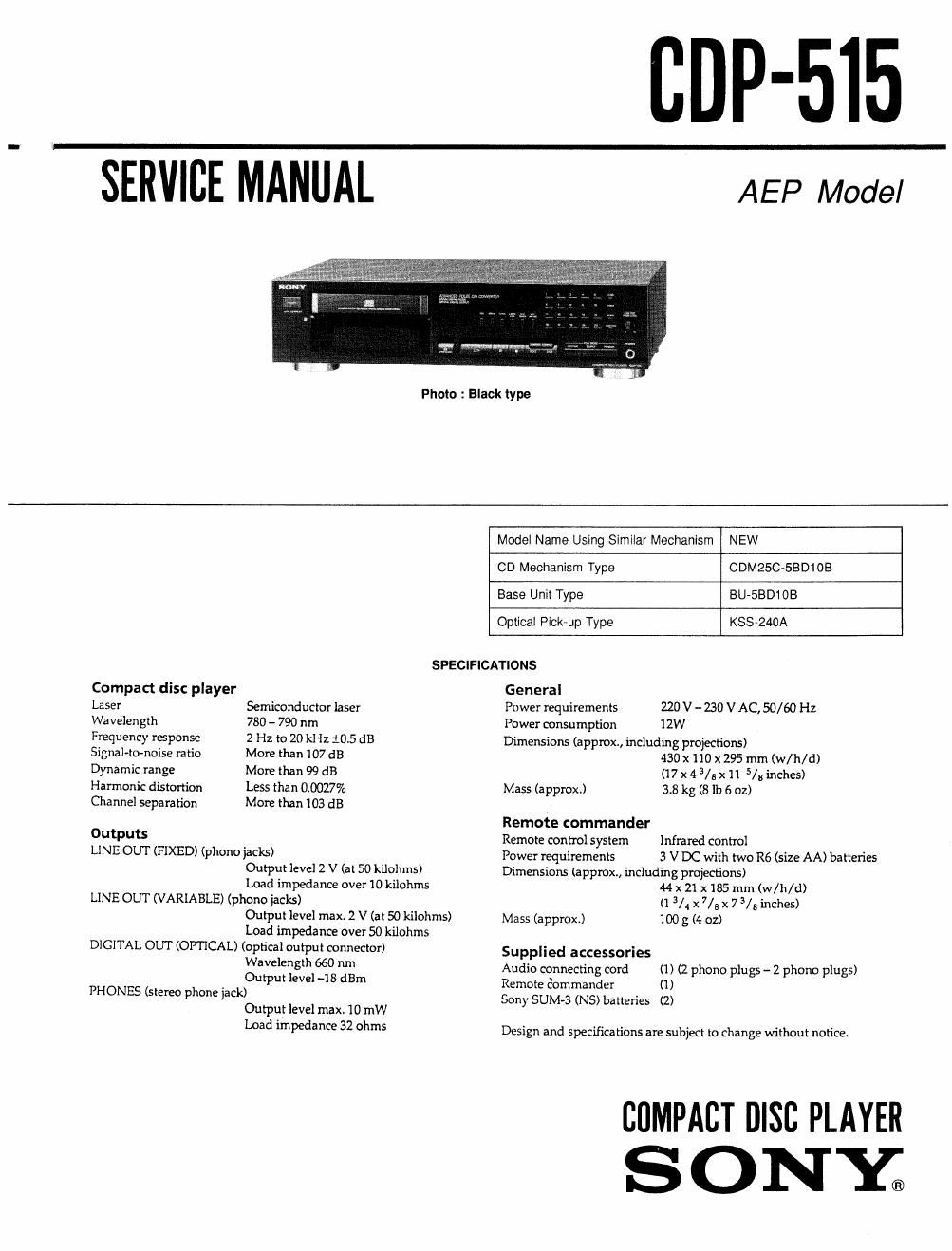

Page 1
GDP-515
SERVICE MANUAL
AEP Model
Photo : Black type
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM250A58D10B
Base Unit Type BU»SBD1OB
Optical Pick-up Type KSS»240A
SPECIFICATIONS
Compact disc player General
Laser Semiconductor laser Power requirements 220 V -730 V AC, 50/ 60 Hz
Wa velenglh 780 - 790 nm Power consumption 12W
Frequency response 2 Hz to 20 kHz 10.5 dB Dimensions (approx, including projections)
Signal-to-noise ratio More than 107 dB 430 x 110 x 295 mm (w/h/d)
Dynamic range More than 99 dB (17 x 4 3/5 x 11 5/3 inches)
Harmonic distortion Less than 0.0027% Mass (approx) 3.8 kg (8 lb 6 02)
Channel separation More than 103 dB
Remote commander
OUIPUIS Remote control system Infrared control
LINE OUT (FIXED) (phone jacls) Power requirements 3 V DC with two R6 (size AA) batteries
Output level 2 V (at 50 kilohms) Dimensions (approx, including projections)
Load impedance over 10 kilohms 4-4 x 21x185 mm (w/h/d)
LINE OUT (VARIABLE) (phone jacks) (l 3/4 x 7/5 x 7 3A; inches)
Output level max. 2 V (at 50 kilohrns) Mass (approx) 100 g (4 oz)
Load impedance over 50 kilohms
DIGITAL OUT (OPTICAL) (optical output connector)
Wavelength 660 nm
Output level ~18 dBm
PHONES (stereo phone jack)
Out-put level max. lo mW
Load impedance 32 ohms
Supplied accessories
Audio connecting cord (1) (2 phono plugs - 2 phone plugs)
Remote commander (1)
Sony SUM~3 (NS) batteries (2)
Design and specifications are subject to change without notice.
COMPACT Disc PLAYER
S O NYE
Page 2
The laser component in this product is capable of emitting TABLE OF CONTENTS
radiation exceeding the limit for Class 1. Section Til g Base
1. SERVICING NOTE . 3
This appliance is classified as a
CLASSlLASERPFIODUCT CLASS 1 LASER Product The 2. GENERAL ............................................................... 4
LUOKANI LASERLAITE CLASS 1 LASER PRODUCT 2,1_ Identif in the Parts _ 4
KLASStLASERAPPAFiAT MARKING is located on the rear y g ........................................................
we 3. DISASSEMBLY
The following caution label is located inside of the unit. 3'1' Removal Of Loading Panel """""" 5
3-2. Removal of MD (BU-58010) Block . 5
CAUTION : imam: use» mama» WHEN om.
mun :xposuae 10 new
ADVARSEL :ggagggggfigggxggfiggmgmmw 4. ELECTRICAL BLOCK CHCKING ........................... 6
UNDGAUDS ETYELSE FOR SYRANING
0 =mmsmgssiamsm"5 5. DIAG RAMS
VARN'NG wsasaghsczrssmsmm 5-1 IC Pin Functions
ADVAFISEL : UstLIu usEfisTRAuNGNAR nEKsELAFNEs - IC101 (CXD2515Q).
uNNm sxsmusame ron STRALEN . 10305 (CX D2567M)
- ICBD1 (CXP82316-0320) 11
52. Block Diagram .. 12
53. Printed Wiring Boards . 15
5-4, Schematic Diagram .
5-5. lC Block Diagrams..............
5-6, Semiconductor Lead Layouts
6. EXPLODED VIEWS
6-1. Case and Front Panel Block .............................................. 27
6-2. Chassis Block ...................................
6'3. Mechanism Block (CDM2505BD1OB) 29
64. Optical Pick-up Block (BU-SBDIOB) 30
7. ELECTRICAL PARTS LIST .................................... 31
SAFETY-RELATED COMPONENT WARNING I!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
