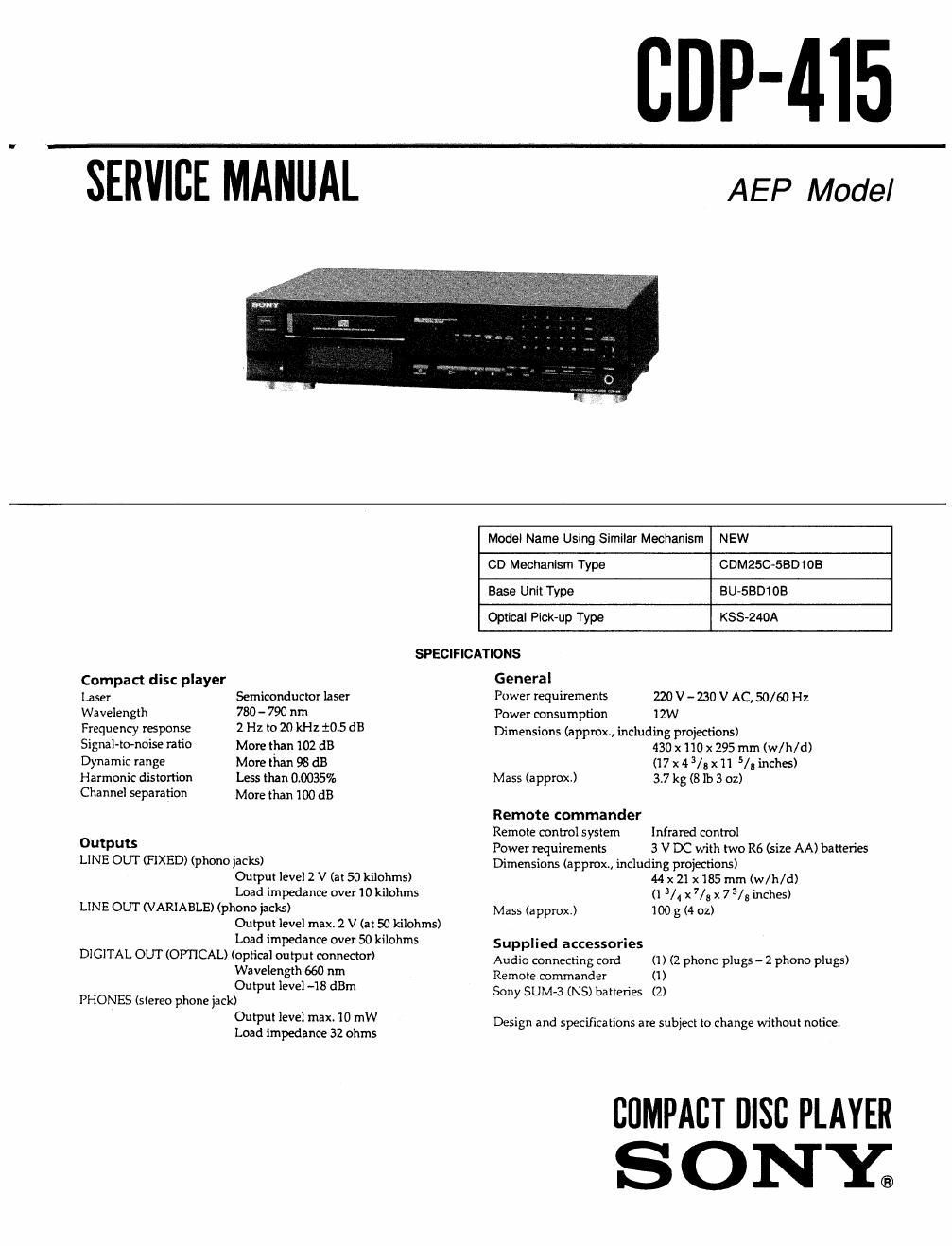

EDP-415

SERVICE MllllUAL

AEP Model

Model Name Using Similar Mechanism NEW

CD Mechanism Type CDMZSC-SBDiOB

Base Unit Type BU~SBD1 OB
Optical Pick-up Type KSS-24OA
SPECIFICATIONS
Compact disc player General
Laser Semiconductor laser Power requirements 220 V - 130 V AC, 50/60 Hz
Wavelength 780 - 790 nm Power consumption 12W
Frequency response 2 HZ 0 20 kHz 20.5 '33 Dimensions (approx, including projections)
Signal-to-nolse ratio More than 102 dB 430 x 110 x 295 mm (w/h/d)
Dynamic range More than 98 dB (17 X 4 3/a X 11 5/24 inches)
Harmonic distortion Less than 0.0035% Mass (approx) 3.7 kg (8 lb 3 02)
Channel separation More than 100 dB
Remote commander
Remote control system Infrared control
OUtPUts Power requirements 3 V DC with two R6 (size AA) batteries

LINE OUT (FIXED) (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
LINE OUT (VARIABLE) (phone jacks)
Output level max. 2 V (at 50 kilohms)
Load impedance over 50 kilohms
DlGITAL OUT (OPTICAL) (optical output connector)
Wavelength 660 nm
Output level -18 dBm
PHONES (stereo phone jack)
Output level max 10 mW
Load impedance 32 ohms

Dimensions (approx, including projections)

44 x Zl x185 mm (w/h/d)
(13/. x 7/3 x 73/5 inches)
Mass (approx) 100 g (4 oz)
Supplied accessories
Audio connecting cord (1) (2 phone plugs ~ 2 phono plugs)
Remote commander (1)

Sony SUM-3 (N5) batteries (2)

Design and specifications are subject to change without notice.

COMPACT msc PLAYER
S ONY;

Page 2

The laser component in this product is capable of emitting
radiation exceeding the limit for Class 1.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

The Iollowing caution label is located inside of the unit.


CAUTION : INVISIBLE uses RADIAVION was open.
my.» sxposuna m am.
i USYNLDG LASERSIRALING VED AMINO NAN
ADVARSEL ' SIKKERHEDSAFERVDERE ER UDE AF FUWTION
IJNDGAIJDS JEWELSE FOR MRANING

VAROI ; AVATIAESSA u sumALuKIvus wnEWAESSA
met ALWIINA ussnsuziuus,

VARNING : means-mama ma ostt oer. AR oPPNAu
ocu swans" An unxopwuo

ADVARSEL : ustLiG LASERSYMUNG MAR DEKSEL APNES
UNNGA sxsmnsewo roe smuzu


TABLE OF CONTENTS


Se ' n m Rage
This appliance is classified as a It SERVICING NOTE ................................................. 3
CLASS I LASER product. The
CLASS 1 LASER PRODUCT 2. GENERAL
MARKING is located on the rear 2-1 Identifying the Parts 4
exterior.
3. DISASSEMBLY
3~1. Removal of Loading Panel ................................................ 5
32. Removal of MD (BU-SBDIO) Block ................................... 5
4. ELECTRICAL BLOCK CHECKING . . 6
5. DIAGRAMS
5-1. to Pin Functions
- IC101 (CXDZSISQ). .
- |CSO2 (CXD2565M-1) . .10
' |0801 (CXP82316v032Q) .11
52. Block Diagram ........ 2
53. Printed Wiring Board . 5
5-4. Schematic Diagram
5<5. IC Block Diagrams .. .
5-6. Semiconductor Lead Layouts ............................................ 26
6. EXPLODED VIEWS
6-1. Case and Front Panel Block
6-2. Chassis Block .................... .28
6-3 Mechanism Block (CDM250-5BD1OB) .29
6-4. Optical Pick-up Block (BU-530108) .30
7. ELECTRICAL PARTS LIST ..................................... 31

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED

LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE

OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONV.
