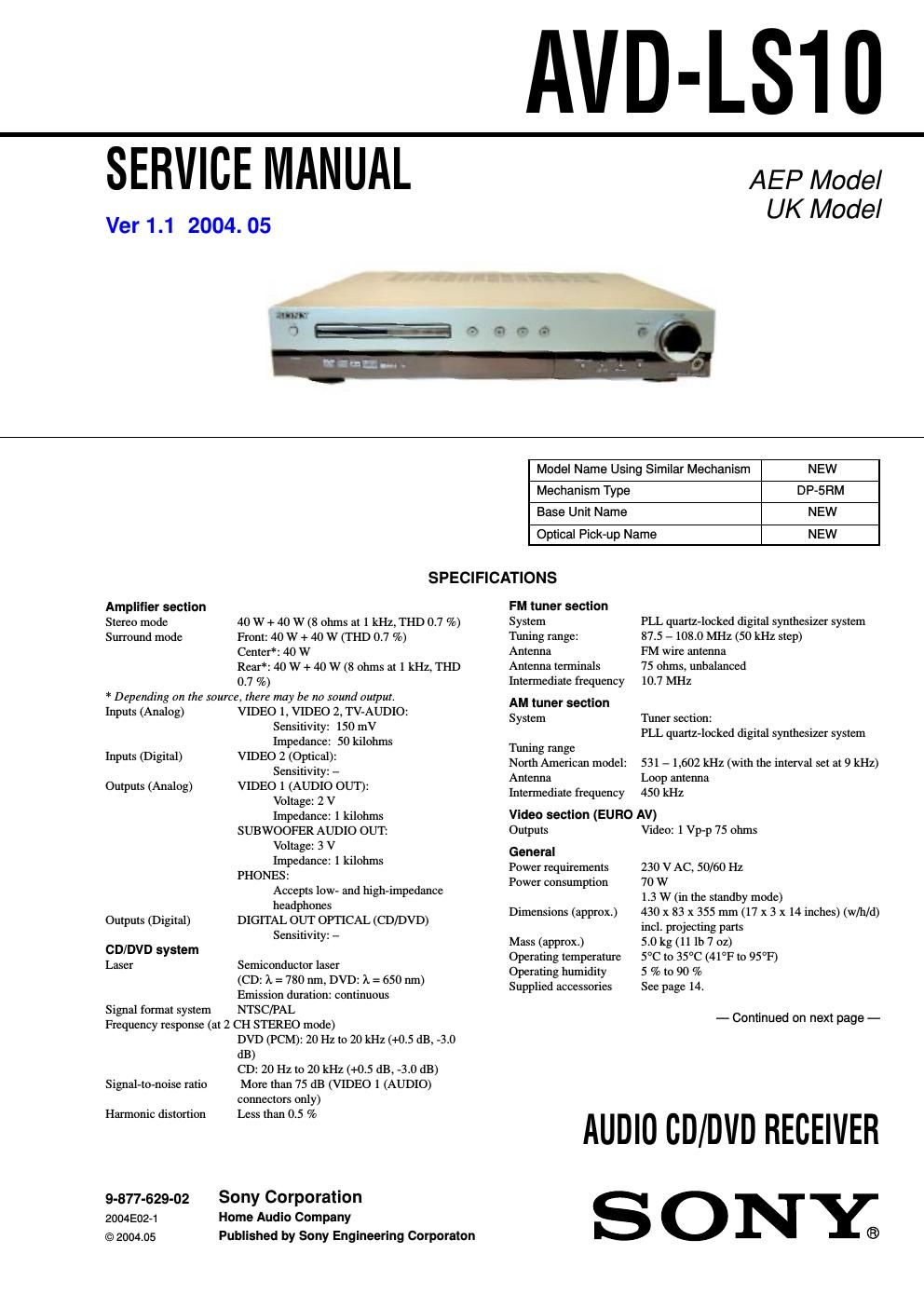

Page 1

AVD-LS10

SERVICE MANUAL

Ver 1.1 2004. 05

AEP Model
UK Model

Model Name Using Similar Mechanism NEW
Mechanism Type DP-SFIM
Base Unit Name NEW
Optical Pick-up Name NEW

SPECIFICATIONS

Amplifier section
Stereo mode
Surround mode

40 W + 40 W (8 ohms at 1 kHz, THD 0.7 70)
Front: 40 W + 40 W (THD 0.7 %)

Center*: 40 W

Rear: 40 W + 40 W (8 ohms at 1 kHz, THD
0.7 %)

* Depending on the source, there may be no sound output.

Inputs (Analog)

Inputs (Digital)

Outputs (Analog)

Outputs (Digital)

CD/DVD system
Laser

Signal format system

VIDEO 1, VIDEO 2, TV-AUDIO:
Sensitivity: 150 mV
Impedance: 50 kilohms

VIDEO 2 (Optical):

Sensitivity: -

VIDEO 1 (AUDIO OUT):
Voltage: 2 V
Impedance: 1 kilohms

SUBWOOFER AUDIO OUT:
Voltage: 3 V
Impedance: 1 kilohms

PHONES:

Accepts low- and high-impedance
headphones

DIGITAL OUT OPTICAL (CD/DVD)
Sensitivity: -

Semiconductor laser

(CD: A = 780 run, DVD: I = 650 nm)
Emission duration: continuous
NTSC/PAL

Frequency response (at 2 CH STEREO mode)

Signal-to-noise ratio

Harmonic distortion

9-877-629-02
2004E0271
© 2004.05

DVD (PCM): 20 Hz to 20 kHz (+0.5 dB, -3.0
dB)

CD: 20 Hz to 20 kHz (+0.5 dB, -3.0 dB)
More than 75 dB (VIDEO 1 (AUDIO)
connectors only)

Less than 0.5 %

Sony Corporation
Home Audio Company
Published by Sony Engineering Corporaton

FM tuner section
System

Tuning range:

Antenna

Antenna terminals
Intermediate frequency

AM tuner section
System

Tuning range

North American model:

Antenna
Intermediate frequency

PLL quartz-locked digital synthesizer system
87.5 -108.0 MHz (50 kHz step)

PM wire antenna

75 ohms, unbalanced

10.7 MHz

Tuner section:
PLL quartz-locked digital synthesizer system

531 - 1,602 kHz (with the interval set at 9 kHz)
Loop antenna
450 kHz

Video section (EURO AV)

Outputs

General
Power requirements
Power consumption

Dimensions (approxl)

Mass (approx)
Operating temperature
Operating humidity
Supplied accessories

Video: 1 Vp-p 75 ohms

230 V AC, 50/60 Hz

70 W

1.3 W (in the standby mode)

430 x 83 x 355 mm (17 x 3 x 14 inches) (W/h/d)
incl. projecting parts

5.0 kg (11 1b 7 oz)

5°C to 35°C (41F to 950F)

5 % to 90 %

See page 14.

- Continued on next page -

AUDIO CD/DllD RECEIVER
