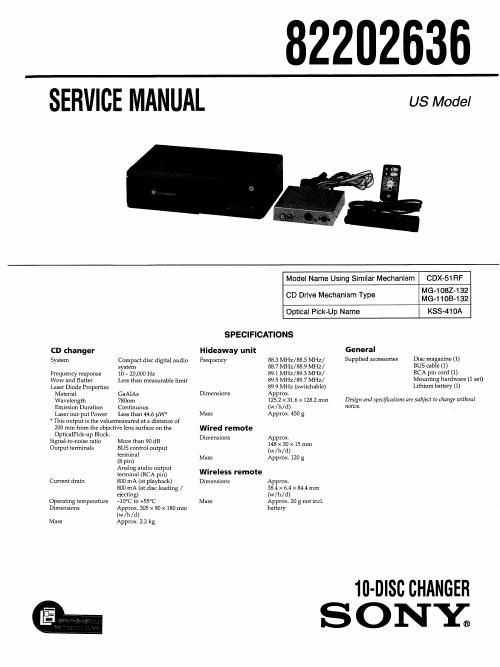

Page 1

,82202536

SERVICE MANUAL

US Model

CD changer

System Compact disc digital audio
system

Frequency response 10 - 20,000 Hz

Wow and flutter Less than measurable limit
Laser Diode Properties

Material CaAIAs

Wavelength 780nm

Emission Duration Continuous

Laser out-put Power Less than 44.6 pW'

This output is the valuemeasured at a distance of
200 mm from the objective lens surface on the
OpticalPick-up Block.

SignalatoAnoise ratio

Output terminals

More than 90 dB
BUS control output
terminal

<8 Pin)

Analog audio output
terminal (RCA pin)

Current drain 800 mA (at playback)
800 mA (at disc loading /
ejecting)

Operating temperature 710°C to +55°C

Dimensions Approx. 305 x 90 x 180 mm
(w / h /dl

Mass Approx. 2.2 kg

Model Name Using Similar Mechanism CDX-51RF
CD Drive Mechanism Type mg: (3&3:
Optical Pick-Up Name KSS-41OA

SPECIFICATIONS

Hideaway unit
Frequency 88.3 MHZ/88,5 MHZ/
88.7 MHZ/88.9 MHZ/
89.1MHZ/893 MHZ/
89.5 MHz/89,7 MHZ/
89.9 MHz (switchable)
Approx.

1252 X 31.6 X1281 mm
(w/h/d)

Mass Approx, 450 g

Dimensions

Wired remote

Dimensions Approx.
148 X 30 x 15 mm
(w /h/d)
Mass Approx. 120 g
Wireless remote
Dimensions Approx.
38.4 X 6.4 X 84.4 mm
(w / h/ :1)
Mass Approx 20 g not incl.
battery

General

Supplied accessories Disc magazine (1)
BUS cable (1)
RCA pin cord (1)
Mounting hardware (1 set)
Lithium battery (1)

Design and specifications are subject ta change without
notice.

10-DISC CHANGER
ONY;
