5031ch @599

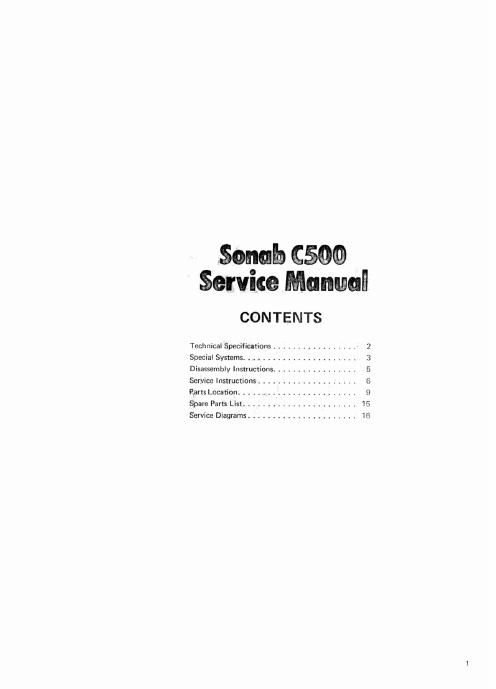

Service Munwafl
CONTENTS
Technical Specifications ................. 2
Special Systems ....................... 3
Disassembly Instructions ................. 5
Service Instructions .................... 6
Parts Location ........................ 9
Spare Parts List ....................... 15
Service Diagrams ...................... 1G
TECHNICAL SPECIFICATIONS
Tape transport:
Tape speed:
Wow and flutter:
Iast winding time:
circuitry:
Time constants:
Bias frequency:
Frequency response:
Signal/noise ratio:
Servo controlled DC. motor.
Single Capstan. Two hard
permalloy (Hi-Mu-Metal)
heads.
4.76 cm/sec. i 1 %
i 0.15 %
100 secs. for C 60 cassettes.
Dolby B noise reduction
system.
Ouasi peak indicating record-
ing meters. _
Tape selector for standard or
chromium dioxide tape with
separate bias and correction
characteristics.
Adjusted for use with a
standard tape and a chrome
tape.
There is a tape guide enclosed
with each-apparatus.
standard tape 3180 + 120 ps
chrome tape 3180 + 70 us
105 kHz.
Standard tape
40 - 12.500 Hz i' 3 dB.
Chrome tape
40 ~15.000 Hz 1 3 dB.
. Standard tape without Dolby
47 dB.
Standard tape with Dolby
54 dB.
Chrome tape without Dolby
50 dB.
Chrome tape with Dolby
57 dB.
Ihputs: Sensitivity Irnpodanco Connoetlon
375.33?! L. 0 7 "V 1 " 1:23:29 jack
DIN 2 mV 30 k 511m DIN
socket
Line: 70 mV 180 k phono sock!"
Microphonl: Suitable to: dynamic microphones With
low impedance. or capacitor microphones.
Controls 0». level control on lhl Instrument panel tor
each channel and one in' central mlC'DDhOnE
Erasure:
Channel separation:
Crosstalk suppression:
Stereo headphones.
Controls:
Tape transport
controls:
Power requirements:
Power consumption:
Dimensions:
Weight:
60 dB.
35 dB.
60 dB.
Max output level 2.5 V.,
impedance 50 ohms, suitable
for stereo headphones with an
impedance of 8 to 600 ohms.
Connection via a 3-pole,
6.34 mm telephone plug.
The volume is regulated by
the level controls
Output level L 84 R.
Mains on/off. Dolby noise
reduction on/off. tape selector
standard/chromium dioxide.
record, rewind, stop-eiect,
play, fast forward, pause and
automatic rewind stop on/off
100, 117, 220, 240 volts A.C..
50 - 60 Hz.
25 W.
360 x 250 x 105 mm.
4.5 kg
Sub/act to change without notice.
Outputs:
DIN:
Linc:
Lovol Impedance Connection
1 2 v and ohms 5 pole om
socket
1.2 v 500 ohms Phone socket
Both outputs are allecled by the level control at "1,
rear ol the apparatus.
