Siel Mono Schematics

Extracted text from Siel Mono Schematics (Ocr-read)

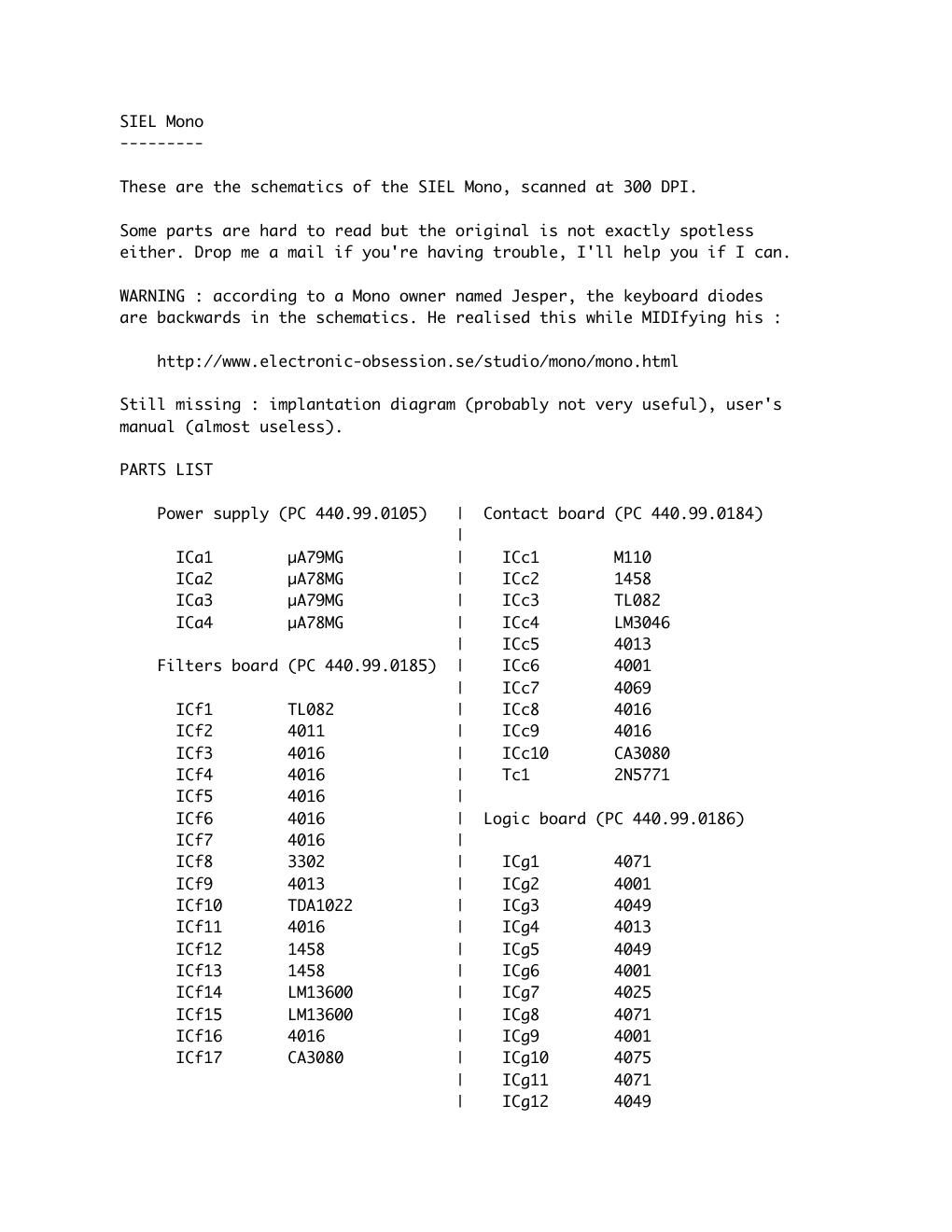

Page 1

All PNP transistors BC416 unless otherwise indicated. All NPN transistors BC173 unless otherwise indicated. All diodes 1N4148 unless otherwise indicated. All red LEDs FL V 117. All green LEDs LT 233. This is http://www.teaser.fr/~amajorel/mono/schematics/README, last updated AYM 2007-05-31.
