Shure mp 94 e owners manual

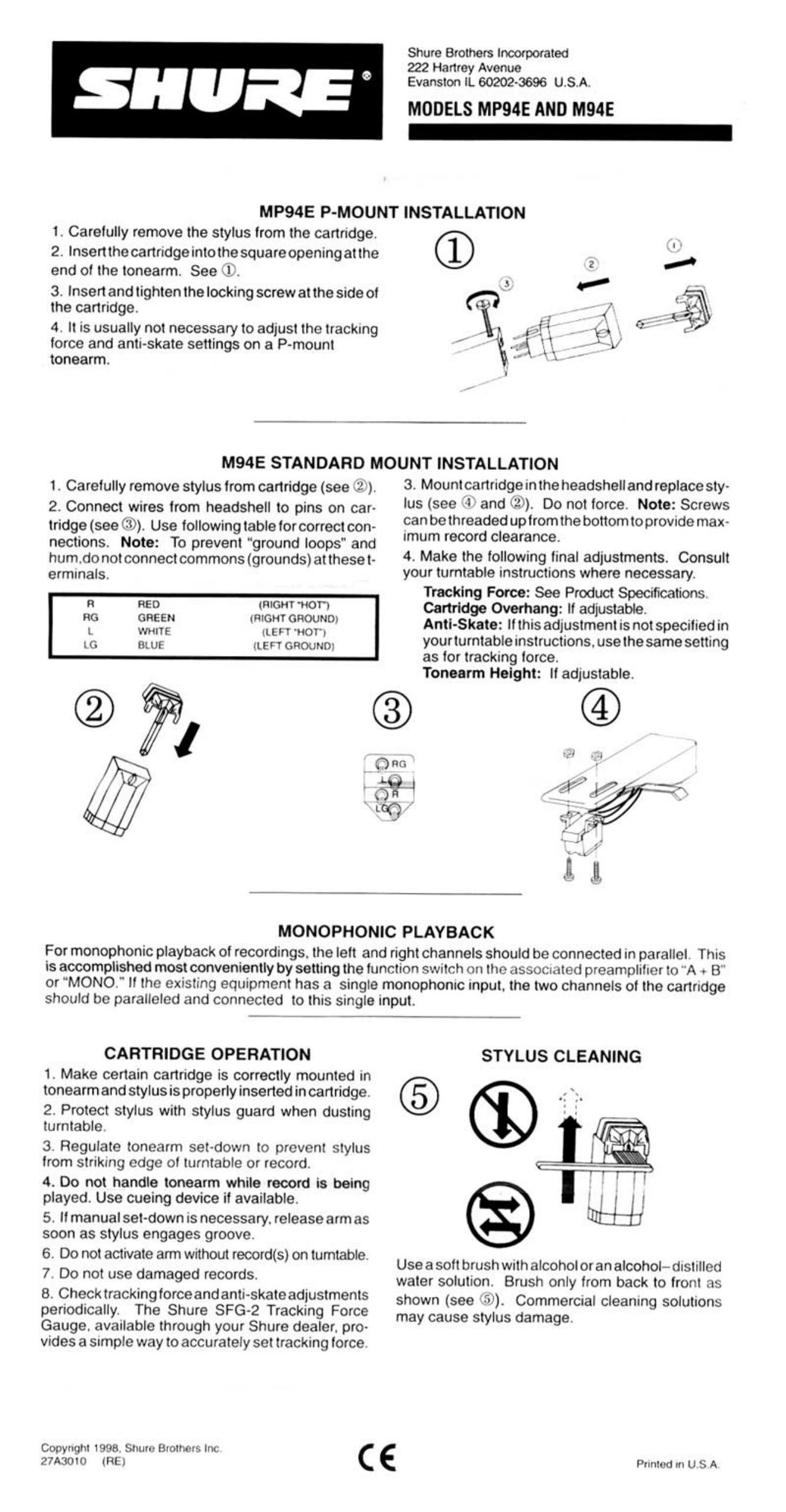

Page 1

SHURE °

Shure Brothers Incorporated
222 Hartrey Avenue
Evanslon IL 60202-3696 USA.

MODELS MP94E AND M94E

MP94E P-MOUNT INSTALLATION

1. Carefully remove the stylus from the cartridge,
2. lnsertthecartridgeintothesquareopeningatthe
end of the tonearm. See 11.

3. Insert and tighten the locking screw at the side oi
the cartridge.

4. It is usually not necessary to adjust the tracking
force and anti-skate settings on a P-mount
tonearm.

M94E STANDARD MOUNT INSTALLATION

1. Caretully remove stylus trom cartridge (see 2 ).
2. Connect wires trom headshell to pins on car-
tridge (see (3)). Use following table lorcorrect con-
nections. Note: To prevent ground loops" and
hum.do not connect commons (grounds) at these t-
erminals,

(RIGHT HOT)
IRIGHT GROUND)

(LE! T 'NOIi
tLEFT GROUNDl

3. Mountcartridgeintheheadshellandreplacesty
lus (see 4 and (2)). Do not lorce. Note: Screws
can be threaded uptrom the bottom to provide max-
imum record clearance.

4. Make the following final adjustments. Consult
your turntable instructions where necessary.

Tracking Force: See Product Specifications.
Cartridge Overhang: It adjustable.
Anti-Skate: ll this adjustment is not specilied in
yourturntable instructions. use the same setting
as for tracking lorce.

Tonearm Height: ll adjustable.

MONOPHONIC PLAYBACK

For monophonic playback of recordings. the left and right channels should be connected in parallel. This
is accomplished most conveniently by setting the function switch on the associated preamplifier to A . 8"
or MONO." It the existing equipment has a single monophonic input. the two channels of the cartridge
should be paralleled and connected to this single input.

CARTRIDGE OPERATION STYLUS CLEANING

1. Make certain cartridge is correctly mounted in
tonearm and stylus is properly inserted in cartridge.

2. Protect stylus with stylus guard when dusting

turntable.

3. Regulate tonearm set-down to prevent stylus

lrom striking edge of turntable or record.
l I I I

4. Do not handle tonearm while record is being
Use a soil brush with alcohol or an alcohol- distilled

played. Use cueing device it available.

5. ll manual set-down is necessary. release arm as
water solution. Brush only from back to front as
shown (see 5"). Commercial cleaning solutions

soon as stylus engages groove.
6. Do not activate arm without record(s) on turntable.
may cause stylus damage.

7. Do not use damaged records.

8. Checktrackingforceandanti-skate adjustments
periodically. The Shure SFG-2 Tracking Force
Gauge. available through your Shure dealer, pro-
vides a sample way to accmately set tracking force.

Copyright 1998. Strum [Brothers Inc
27A3010 (RE)

(6

Printed m U S A

Page 2

PRODUCT SPECIFICATIONS

Replace- Stylue Stereo Output Frequency Recommended Trackablllty
ment Grip (1 kHz Response Tracking Force at 1.25 g
Stylus Color at 5 cm/sec peak (In grams) Tracking Force
recorded velocity) (cm/sec
min. max. Peak Velocity)
N946 Wolet 4.0 mV 20 to 22,000 Hz 0.75 g 1.5 g 400 Hz - 30 crn/sec
1 kHz - 44 cm/sec
10 kHz -- 31 cm/sec
Features: 0 Very low mass. heat-treated cantilever
0 Available in standard mount or P-mOunt versions
Stylus Tip: . Polished. natural diamond
o Elliptical 5 x 18 u (0.0002 x 0.0007 in.) radii
Cartridge height (ACME): 15.6 mm Net weight: M946 - 6.6 g. MP94E - 5.9 9
Channel balance: Within 2 dB Channel Separation: 25 dB at 1 kHz
Optimum Load: 47 kilohms. 200 - 300 picolaradslchannel. including tone arm and amplifier input capacitance
DC resistance: 150 ohms inductance: 650 millihenries
Codification: Conforms to European Union directives. eligible to bear CE marking; meets European Union EMC
immunity Requirements: EN 50 082-1. 1992

PATENT NOTlCE: Manufactured under one or more of the following US. Patents: 4.275.888; 4.441 .177:

4.473.897: 4.489.442.

FULL ONE-YEAR WARRANTY

Shure Brothers incorporated ("Shure"), 222 Har.
trey Avenue. Evanston. lllinois 60202-3696. war-
rants to the owner of this product that it will be free
in normal use. at any defects in workmanship and
materials for a period of one year from date of pur-
chase. You should retain prool of date of purchase.
Shure is not liable for any consequential damages.
It this Shure product has any defects as described
above, carefully repack the unit. have it insured,

and return it prepaid to: Shure Brothers Incorpo-
rated, Attention: Service Department. 222 Har-
trey Avenue, Evanston. Illinois U.S.A.
60202-3696. It you are not in the United States. re-
turn the unit to your dealer or Authorized Service
Center for repair. The unit will be repaired or re-
placed and returned to you promptly. and it itcannot
be repaired or replaced, you may elect to receive a
refund. This warranty does not include stylus wear.

MONTAGE EN P DU "ME

.-

Avec precaution. retrror la potnle do lecture de la cartouche.

theater at senor la vie do blocage sur is we do Ia cartouche.

T099

Inserer la canouche dans l'ouverture carree a I'exlrernite du bras (to lecture. Vorr ii '.

En general. it nest pas necessaire do reglor les parametres do lorce dappur et de poussee tolerate sur la bras de lecture du montage on

MONTAGE STANDARD DU H945

t. Avec precaution. retirer ta pornte de lecture de la cartouche
(V01! 123').
2 Brancher Ies lils de la ooquille aux broches sur la cartouche

(vorr '31). Utilrser le tableau survant pour assuror des branche-
ments corrects. Remarque : Pour eviter les «boucles do massew
et le ronilement. ne pas laws do branchements communs (masse)
3 cos Domes.

R ROUGE DROIT «INTENSE--)
FIG VERT (DROIT MASSE)

I. BLANC (GAUCHE ~lNTEN3E-l
LG BLEU

(GAUCHE MASSEI

3. Monter la cartouche dans la coquille ct remplacer Ia pornte de
lecture (voir 4 et 1") Evrler de lorcer Remarque : Les vrs peu-
vent etro vtssees vars le haul dapurs Ie dessous alrn d'assurer un
degagement maximum au disque.

4. Eltectuer Ies alustements finals servants. Consulter les ins-
tructions de la platine salon to besoin.

Force d'appul : Vorr Caracteristiques du produit.
Porte-in-taux de la cartouctte : Sr elle est reglable.
Pounce tatersle : Si ce reglage nest pas speculie dans les
instructions de la platrne. effectual le meme raglage que pour
la force d'appui.

Hauteur du bras de lecture : St ollc est regiable

REPRODUCTION MONOPHONlOUE
Pour la reproduction monophonique des disques. les canaux gauche et drod dowent etre raccordes en parallels: Pour coo. it sullrt ate
regler le commutateur do lonction du préamplilicateur assocre sur --A o 8- ou ~MON0n Sr l'équrpemenl on place est munl dune saute
entree monophonique. les deux canaux de la cartouche dorvent etro parallelcs et raccordés a l'entree unique

UTILISATION DE LA CARTOUCHE

1 S'assuror que la cartouche est montee oorrecternent dans le
bras (1e lecture et que la pornte de lecture est bren inseree darts la
cartouche.

2 Proteger la pomle de lecture avec un protecteur pendant to net-
toyage de la ptatrne

3. Controter la deeoente du bras do lecture pour evrter que la pom -
to do lecture arrive our to rebord de la platlne ou du disque.

4 Ne pas manipuler le bras de lecture pendant la lecture dun dis-
uue. Utiliser lo love-bras le cas échéant

5 3' esl necessaire de poser le bras a la main, to relacher des
que la pointe de lecture s'engage dans le stlton

6. Ne pas actionner te bras sans disquetst sur la ptatine
7, Evrler do lire dos drsques endommages.

8, Verilier regutierement les reglages de la force dappui et de la
poussee laterals. Le pose-pickup Shure SFG-Z. disponible au-
pres du distributeur Shure. ollre un moyen simple do re'gler precu-
sémeni ta force d'appui

NETI'OYAGE DE LA POINTE DE LECTURE
Utrlrser une brosse douce avec (le- lalcool ou une solution dalcool
el d'eau distilled Ne brosser que de l'amere vets l'avant. comma
iluslre (voir I7-1). Les solutions do nettoyage du commerce ris-
quent d'ertdommager la pornte de lecture.

GARANTIE TOTALE D'UN AN

Shore Brothers incorporated («Shureni 222 Hanrey Avenue. Evanston. Illinois 60202-3696. Etats-Unrs. garanlit au proprietaue de ce
produrt que. pour un usage normal. ca produrt est exempt de delauts do matonaux ou de labncation pour une penode dun an. a compter
de to date dachat. Conserver la preuve de la date dachat. Shure n'est pas responsable pour les dommages-mtéréls indirects.

Si ce produrt Shure presenle un des délauts decrits plus haul, 1e remballer sorgneusemenl, lassurer et le retoumer on port paye a : Shure
Brothers Incorporated. Attention: Service Department. 222 Hanrey Avenue. Evanston. Illinois USA. 60202-3696. A I'exteneur des
Elms Unis. rouvoyor lunrté a reparer a un rlrstributeur local ou in un centre de reparation agree". L'unrte sera reparee ou remplacée puts
retournee au plus lot. at. St ello no pool élre nr reparee nr remplacee. In propndtaire pourra ChOtSll de recevoir un remboursernent Cetle
garantie ne oeuvre pas l'usure de la pornte de lecture.

AVIS DE BHEVEI : Fabrique sous un ou plusreurs des brevets U.S survants -l 275 888, 4 441 ii? 4 473 897. -l 489 442
