Page 1

SEC? °

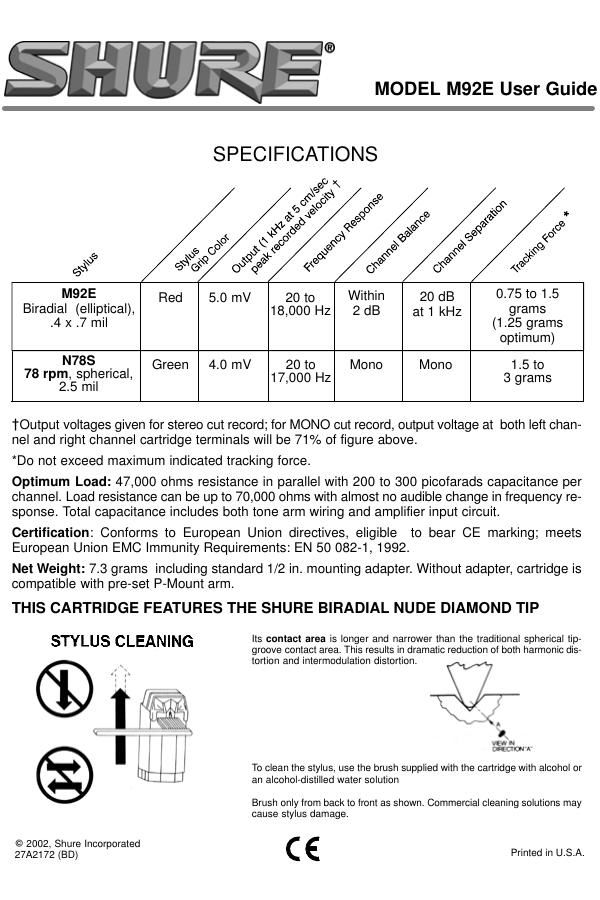

% MODEL M92E User Guide

SPECIFICATIONS

o x
\d
663°C} 005. \ofi
o 4 e9 (P to? f
@525 ~39 (>90 09% s e
\0 Q Q00 {5 \© $9 9Q
e \S o & «5 0° éQ <9 ~+\°
gas) a 0&2 0822;» 46 (yo 0 Q0
_ _ M925 _ Fied 5.0 mV 20 to Within 20 dB 0-75 to 1-5
Biradial (elliptical), 13,000 HZ 2 dB at 1 kHz grams
.4 x .7 mil (1.25 grams
optimum)
N735 . Green 4.0 mV 20 to Mono Mono 1.5 to
73 'P'gisswiler'ca': 17,000 Hz 3 grams
. ml

TOutput voltages given for stereo cut record; for MONO cut record, output voltage at both left chan-
nel and right channel cartridge terminals will be 71% ct figure above.

Do not exceed maximum indicated tracking force.
Optimum Load: 47,000 ohms resistance in parallel with 200 to 300 picofarads capacitance per

channel. Load resistance can be up to 70,000 ohms with almost no audible change in frequency re-
sponse. Total capacitance includes both tone arm wiring and amplifier input circuit.
Certification: Conforms to European Union directives, eligible to bear CE marking; meets
European Union EMC Immunity Requirements: EN 50 082-1, 1992.

Net Weight: 7.3 grams including standard 1/2 in. mounting adapter. Without adapter, cartridge is
compatible with pre-set P-Mount arm.

THIS CARTRIDGE FEATURES THE SHURE BIRADIAL NUDE DIAMOND TIP
STYLUS CLEANING its contact area is longer and narrower than the traditional spherical tipr

groove contact area. This results in dramatic reduction OI both harmonic diss

tortion and intermodulation distortion. g 2

\, . x .
at
M ..
a... .
To clean the stylus, use the brush supplied with the cartridge with alcohol or
an alcoholrdistilled water solution

Brush only irom back to lront as shown. Commercial cleaning solutions may
cause stylus damage.

© 2002, Snure Incorporated
27A2172 (BD) Printed in U.S,A.

Page 2

MOUNTING

red white G1
rouge blanc
ml l l bianco (1
re a Weiss

R L I

I .

G LG 51:2
ya u
grun blau
Verde azul

TRACKING FORCE IN A P-MOUNT ARM
After installing the cartridge, it is not usually necessary to adjust the tracking force in a pre-set arm.

SKATING COMPENSATION (where applicable)
Set the skating compensation mechanism according to the tone arm manufacturers instructions.

TO PRESERVE STYLUS LIFE

Protect stylus with stylus guard when dusting turntable

Regulate tone arm set-down to prevent stylus from striking edge of turntable or record.

Do not handle tone arm while record is being played. Use cuing device if available.

If manual set-down is necessary, release arm as soon as stylus engages groove

Do not activate arm without record on turntable.

Do not use damaged records.

Make certain cartridge is correctly mounted in tone arm and stylus is properly inserted in car-
tridge.

Use appropriate vertical tracking force for each cartridge and stylus.

Follow turntable or tone arm instructions for antiskating force.

..°.°".>$°N.-
