Shure Brothers Incorporated
222 Hartrey Avenue
5"
Evanston IL 60202-3696 U.S.A.

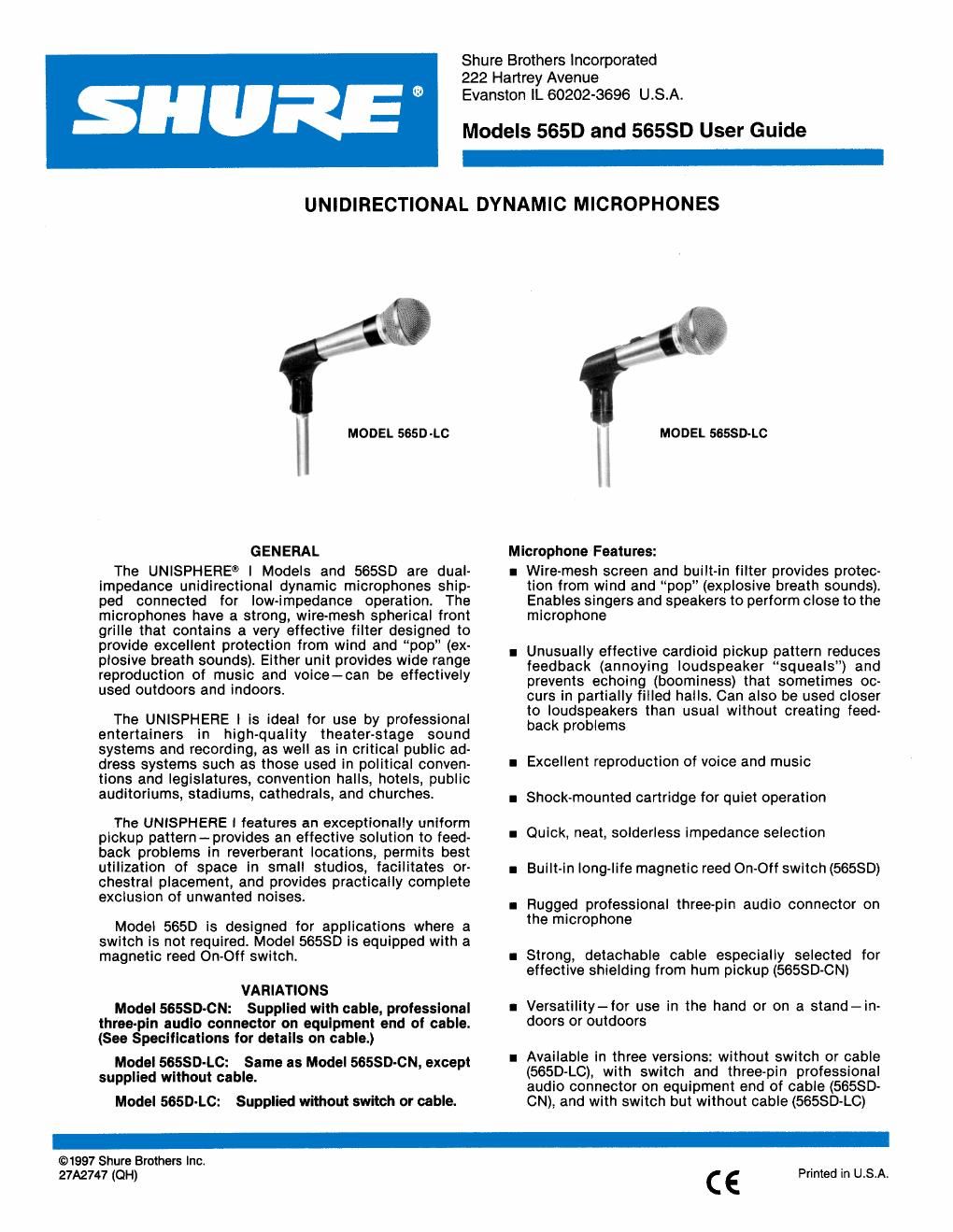

Models 565D and 565$D User Guide
UNIDIRECTIONAL DYNAMIC MICROPHONES
MODEL 565D-LC
GENERAL
The UNISPHEREQ I Models and 5653B are dual-
impedance unidirectional dynamic microphones ship-
ped connected for low-impedance operation. The
microphones have a strong, wire-mesh spherical front
grille that contains a very effective filter designed to
provide excellent protection from wind and pop" (ex-
plosive breath sounds). Either unit provides wide range
reproduction of music and voice-can be effectively
used outdoors and indoors.
The UNISPHERE | is ideal for use by professional
entertainers in high-quality theater-stage sound
systems and recording, as well as in critical public ad-
dress systems such as those used in political conven-
tions and legislatures, convention halls, hotels, public
auditoriums, stadiums, cathedrals, and churches.
The UNISPHERE I features an exceptionally uniform
pickup pattern-provides an effective solution to feed-
back problems in reverberant locations, permits best
utilization of space in small studios, facilitates or-
chestral placement, and provides practically complete
exclusion of unwanted noises.
Model 565D is designed for applications where a
switch is not required. Model 56580 is equipped with a
magnetic reed On-Off switch.
VARIATIONS
Model 565$D-CN: Supplied with cable, professional
three-pin audio connector on equipment and of cable.
(See Specifications for details on cable.)
Model 565SD-LC: Same as Model 565$D-CN, except
supplied without cable.
Model SGSD-LC: Supplied without switch or cable.
. " MODEL sassmc
Microphone Features:
I Wire-mesh screen and built-in filter provides protec-
tion from wind and pop (explosive breath sounds).
Enables singers and speakers to perform close to the
microphone
I Unusually effective oardioid pickup pattern reduces
feedback (annoying loudspeaker squeals) and
prevents echoing (boominess) that sometimes oc-
curs in partially filled halls. Can also be used closer
to loudspeakers than usual without creating feed-
back problems
I Excellent reproduction of voice and music
I Shock-mounted cartridge for quiet operation
I Quick, neat, solderless impedance selection
I Built-in long-life magnetic reed On-Off switch (565$D)
I Rugged professional three-pin audio connector on
the microphone
I Strong, detachable cable especially selected for
effective shielding from hum pickup (565$D-CN)
I Versatility-for use in the hand or on a stand-in-
doors or outdoors
I Available in three versions: without switch or cable
(56BD-LC), with switch and three-pin professional
audio connector on equipment end of cable (56530-
CN), and with switch but without cable (565$D-LC)
©1997 Shure Brothers Inc.
27A2747 (OH) C E Printed in USA
SPECIFICATIONS
Type
Dynamic
Frequency Response
50 to 15,000 Hz (see Figure 1)
lumvl ms: m a
msmzwv 1» ram
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Cardioid (unidirectional)-uniform with frequency,
symmetrical about axis (see Figure 2)
_ zoao uz
--
TYPICAL POLAR PATTERNS
FIGURE 2
Impedance
Dual. Microphone rating impedance is 150 ohms (250
ohms actuai) for connection to microphone inputs
rated at 19 to 300 ohms and High for connection to
high-impedance microphone inputs.
Wired for low impedance as supplied. To change im-
pedance, see sections on Impedance Selection and
Connections.
Output Level (at 1,000 Hz)
L" a,
Open Circuit Voltage' .... -76.0 dB -54.0 dB
(0.16 mV) (2.0 mV)
Power Level ........... -56.0 dB
*0 dB _ 1 volt per microbar
"'0 dB = 1 milliwatt with 10 microbars
Phaslng
Positive pressure on diaphragm produces positive
voltage on pin 2 in low impedance and on pin 1 in
high impedance (with respect to pin 3). See Figure 5.
Switch
56530: Builtin magnetic reed On-Off switch with
lockplate. To lock switch in On position, remove
screw on lockplate and turn lockplate 180°.
Reassemble and tighten screw.
Cartridge Shock Mount
Internal rubber vibration-isolator
Cable
565SD-CN: 6.1m (20 ft) two-conductor shielded,
rubber-jacketed, detachable, with professional three-
pin audio connectors on microphone and equip-
ment ends
'Dasigned to mate with Cannon XL series, Switchcrait A3 (O.G.)
series, or equivalent connector.
Swivel Adapter
Positive action, adjustable through 90° from vertical
to horizontal, permits easy removal for handheld use,
suitable for mounting on stand with s/n"-27 thread
Case
Chrome-plated die casting with steel mesh grille
Dimensions
See Figure 3
ISSJ mm
(6-27/64 IN.)
222 mm 93 3 mm
(7/5 IN.) (343/64 IN)
23.2
gm m. Mum-i a (sea/53$?
33.9
(l-ll/32nI'tUDIA
OVERALL DIMENSIONS
FIGURE 3
Net Weight (less cable)
298 grams (10V: oz)
Packaged Weight
565SD-CN: 1106 grams (2 Ib, 7 oz)
5650-LC and 565$D-LC: 620 grams (1 lb 6 oz)
Certification
Conforms to European Union directives, eligible to
bear CE marking; meets European Union EMC Immu-
nity Requirements (EN 50 082-1, 1992); RF radiated
(IEC 801-3); ESD (IEC 801-2); EFT (IEC 801-4).
IMPEDANCE SELECTION
The microphones are shipped connected for low-
impedance operation. To change to high impedance
(see Figures 4 and 5), proceed as follows:
1. Remove plug element at receptacle and of
microphone by turning slotted setscrew in
(counterclockwise) and carefully withdrawing plug
element from case.
2. Disconnect 2-terminal impedance selection socket
from rear of plug element.
3. Reconnect 2-terminal impedance selection socket in
reverse position so that pin 3 of plug element is in-
serted in socket terminal "H.
4. Reassemble plug element into microphone and seat
setscrew securely by turning out (clockwise).
