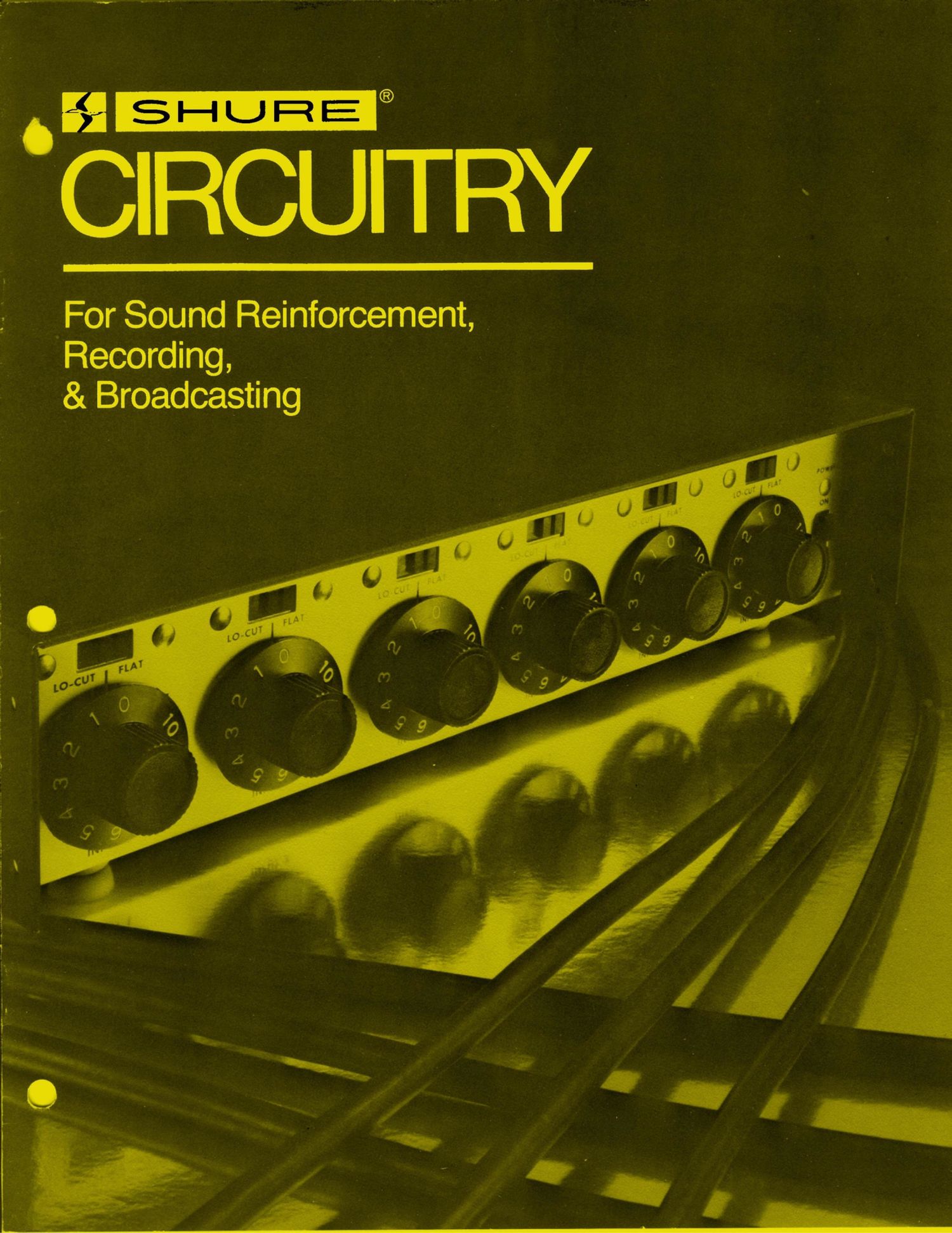

F0r Sound Reinforcement
Recording, _
&' Imad casting
5: -® Micrnnnnne Modifiers
"\N LlNE AIENUAIOR
MODEL Nv Alan
SHURE BROIHERS. INC
EVANSION. MUNOIS
MAD! IN U..A.
Model
A15A
A15 SERIES
PLUG-IN
MICROPHONE ATTENUATORS,
EQUALIZERS AND ADAPTERS
A series of in-line microphone attenuators, equalizers and
adapters that plug in to give instant modifications of response
and performance in microphones and sound systems-with-
out time-consuming permanent rewiring 0r soldering. Only 114
mm (41/2 inches) long x 19 mm (% inches) dia., with color-
coded nameplates for quick identification. Three-pin FEMALE
input and MALE output professional audio connectors.*
AlSA Microphone Attenuator:
Prevents input overload in applications where very strong signals
are applied to a microphone input. inserts a 15 dB loss.
AISPR Phase Reverser:
Reverses the phase of a balanced line without modification of
equipment.
AISHP High Pass Filter:
Provides a. low frequency cut-off to reduce unwanted low fre-
quency nOIses.
AISLP Low Pass Filter:
Provides a high frequency cut-off to reduce objectionable high
frequency noises.
AlSPA Presence Adapter:
Adds presence to vocals or instruments in recording, broad-
casting, and PA. applications.
AlSRS Response Shaper:
Provides sibilance filtering in recording, broadcasting, and PA.
appficafions.
AISLA Line Input Adapter:
Converts balanced low impedance microphone input to bridg-
ing line level input.
A] SBT Bridging Transformer:
Matches balanced or unbalanced devices of different imped-
ances. (33 kilohm primary, and 600 or 7,500 ohm secondary.)
A15TG Tone Generator:
Produces a continuous 700 Hz signal capable of driving low
impedance balanced lines, and is extremely useful in setting up
and trouble-shooting audio equipment. Plugs into microphone
input to enable engineer to check levels, connections, mixer
inputs, cables, and speakers. Permits one man to do the work
of two. Powered by a miniature mercury battery.
*Designed to mate with Cannon XL Series, Switchcraft A3 (Q.G.)
series, or equivalent connector.
9001. NC A'D' u
suuit non-«(IS mt
(UANSYON HUNOVS
MAD! lN U I A
1. .ni'.. » Q.'
QAULHL NC krrwai
94le BHUTNILW M
l'quStCM nNOis
nut MAQHtNQ xvunsroumu
MODEL NO AQSA
SHURE BROIHERS INC
fVANSYON. ltUNCiS
MAD! nv u 5 A
UVfil MQICFHNG lANflQIMI
MODEL NO AQ'HP
SHURE BROTHERS lNC
EVANSTON tlthO/S
MAD! .w u i A
M301 K NO L'v 'JC
smii'f MC'MH. i.
luAAnsroN rumou
MAP! w n r A
A95 SERIES: LOW-IMPEDANCE TO HIGH-
IMPEDANCE LINE MATCHING TRANSFORMERS
(PLUG-IN TYPES)
High quality transformers that make it possible to connect a low-
impedance microphone to a high-impedance amplifier input or
vice versa. Terminated with a variety of connectors that allow
instant connection of these transformers to most microphone
plugs and amplifier jacks. Solves problems of excessive high-
frequency loss and objectionable hum when long lengths of
cable are used.
Model (trhgtmhpggoigggiggglnaegag*) High-Impedance Connector
A95A MALE MC1M**
.9 A95F FEMALE MClM**
' A95P MALE 1A: inch phone plug
A95FP FEMALE 1/4 inch phone plug
A950 MALE 1/4 inch phone jack 3
A95FD FEMALE 1/4 inch phone jack
A95U MALE 1/4 inch phone plug and 1A1 inch
phonejack
A95UF FEMALE 1%; inch phone plug and 1%: inch
phonejack
LOW-IMPEDANCE TO MEDIUM-IMPEDANCE
2 LINE MATCHING TRANSFORMER. A97A
5 LINE MATCHING TRANSFORMER:
High quality transformer designed to properly match low-
impedance (ISO-ohm to 600~ohm) microphone outputs to :
medium-impedance (l-kilohm to 10-kil0hm) inputs, such as
those frequently used in cassette recorders. Low-impedance
connector-three-pin MALE professional audio connector*. J
, Medium-impedance connector-Amphenol MClM type con-
, nect0r**.
*Designed to mate with Cannon XL Series, Switchcraft A3 (0.6.)
series, or equivalent connector.
** Mating connector supplied with unit.
