Sherbourn technologies pt 7010 a owners manual

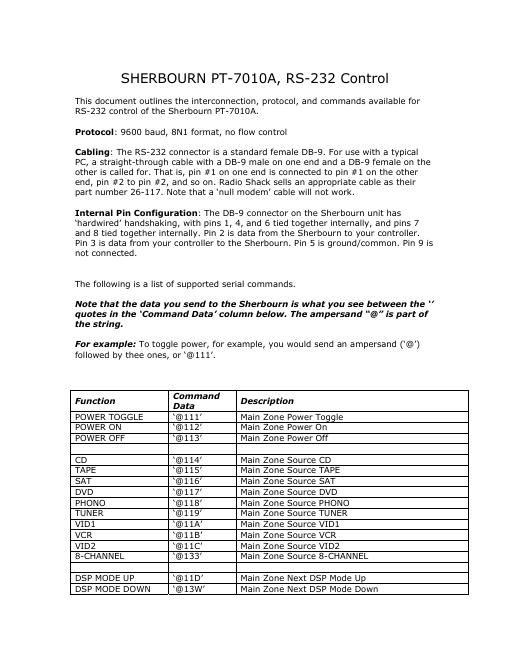

Page 1

STEREO @11E Main Zone DSP Mode Stereo PRO LOGIC @11F Main Zone DSP Mode Pro Logic JAZZ-CLUB @11K Main Zone DSP Mode Jazz Club PARTY @134 Main Zone DSP Mode Party Neo:6 @13H Main Zone DSP Mode Neo:6 SOURCE DIRECT @13J Main Zone DSP Mode Source Direct MUTE TOGGLE @11P Main Zone Mute Toggle MUTE ON @11Q Main Zone Mute On MUTE OFF @11R Main Zone Mute Off VOLUME UP @11S Main Zone Volume Up (one increment) VOLUME DOWN @11T Main Zone Volume Down (one increment) VOL ABSOLUTE @11U + 2 EXT. Main Zone Set Volume Level Absolute @11U00 MEANS ZERO VOLUME, 99=MAX VOL. Limited by Main Zone Max Volume Setting on Menu REAR GROUP UP @11g Surround and Surround Back Trim Up (one increment) REAR GROUP 0dB @11h Surround and Surround Back Trim Zeroed REAR GROUP DOWN @11j Surround and Surround Back Trim Down (one increment) CENTER UP @11k Center Trim Up (one increment) CENTER 0dB @11m Center Trim Zeroed CENTER DOWN @11n Center Trim Down (one increment) SUB UP @11p Sub Trim Up (one increment) SUB 0dB @11q Sub Trim Zeroed SUB DOWN @11r Sub Trim Down (one increment) BASS UP @11s Bass Up (one increment) BASS 0dB @11t Bass Zeroed BASS DOWN @11u Bass Down (one increment) TREBLE UP @11v Treble Up (one increment) TREBLE 0dB @11w Treble Zeroed TREBLE DOWN @11x Treble Down (one increment) AM @11y Tuner -“ go to AM band FM @11z Tuner -“ go to FM band TUNE STEP UP @121 Tuner -“ tune frequency up one step TUNE STEP DWN. @122 Tuner -“ tune frequency down one step TUNE SCAN UP @123 Tuner -“ start/stop scan down
