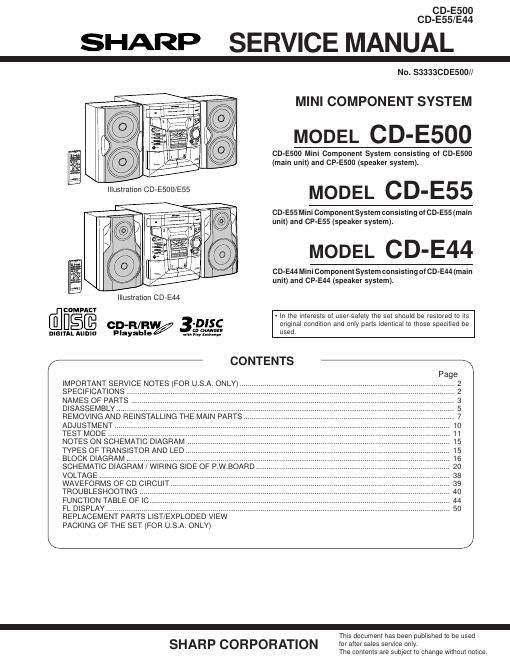

CD-E500
CD- E55/ E44

SHARP SERVICE MANUAL

Illustration CD»E44

[jfigfié CDJVRan -Duc

DIGITAL Auniu Playable 5" CHANGER

with my Emmy.

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
SPECIFICATIONS
NAMES OF PARTS ..
DISASSEMBLY .........
REMOVING AND REINSTALLING THE MAIN PARTS ,.
ADJUSTMENT
TEST MODE ......
NOTES ON SCH
TYPES OF TRANSISTOR AND LED.
BLOCK DIAGRAM .............................
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD
VOLTAGE ...................................
WAVEFORMS OF CD CIRCUIT.
TROUBLESHOOTING .....
FUNCTION TABLE OF IC
FL DISPLAY .....................
REPLACEMENT PARTS L
PACKING OF THE SET (FOR U.S.A. ONLY)

No. S333SCDE500/l

MINI COMPONENT SYSTEM

MODEL CD-E500

CD-ESOO Mini Component System consisting of CD-ESOO
(main unit) and CP-ESOO (speaker system).

MODEL CD-E55

CD-E55 Mini Component System consisting of CD-E55 (main
unit) and CP-E55 (speaker system).

MODEL CD-E44

CD-E44 Mini Component System consisting of CD-E44 (main
unit) and CP-E44 (speaker system).

- In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be

used.


CONTENTS 44444444444444444~\

This document has been published to be used

SHA RP CORPORATION for after sales service only.

The contents are subject to change without notice.

Page 2

CD-E500
CD-E55/E44

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.

. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment covers
or shields, mechanical insulators etc.

. To be sure that no shock hazard exists, check for leakage
current in the following manner.

Plug the AC line cord directly into a 120 volt AC outlet.
Using two clip leads, connect a 1.5 kohm, 10 watt resistor
paralleled by a 0.15 uF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).

Connect the resistor connection to all exposed metal parts
having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

@

VTVM
'0 AC SCALE 0"

1.5 kohms
10 W

0.15uF

TEST PROBE CONNECT TO

KNOWN EARTH
GROUND

TO EXPOSED
METAL PARTS

AllcheckmustberepeatedwiththeAClinecord plug connection
reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

TO THE OPERATION MANUAL.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

I General I Tuner

Power source AC 120 V, 60 Hz Frequency range FM: 87.5 , 108 MHz

Power 96 W AM: 530 , 1,720 kHz

consumption

Dimensions Width: 1075/8" (270 mm) I Cassette deck
Height: 12" (305 mm) Frequency 125 , 8,000 Hz (normal tape)
Depth: 1371/2" (342 mm) response

Weight 14-5 lbs. (6.6 kg) Signal/noise ratio 50 dB (TAPE 1, playback)

I Amplifier (Except for Canada)
Output power

50 watts minimum RMS per channel into 8

ohms from 100 Hz to 20 kHz, 10% total har
monic distortion

Speakers: 8 ohms

Headphones: 16 , 50 ohms (recommended:
32 ohms)

Video/Auxiliary (audio signal): 500 mV/47 k
ohms

Output terminals

Input terminals

l Amplifier (For Canada)

RMS: 100 w (50 w + 50 W) (10 °/a T.H.D.)
Speakers: 8 ohms
Headphones: 16 , 50 ohms (recommended:

Output power
Output terminals

50 dB (TAPE 2, recording/playback)

Wow and flutter 0.3 % (WRMS)

I Speaker (CD-E500/E55)

Type Twinrdrive speaker system
4" (10 cm) wooter X 2

Maximum input 100 W

power

Rated input power 50 W

Impedance 8 ohms

Dimensions Width: 77/8" (200 mm)
Height: 12 (305 mm)
Depth: 771/16" (180 mm)

Weight 5.7 lbs. (2.6 kg)/each

Specifications for this model are subject to change without
prior notice.

32 ohms) I Speaker (CD-E44)
Input terminals Video/Auxiliary (audio signal): 500 mV/47 k
ohms Type 27way type speaker system
2" (5 cm) tweeter
I CD player 5" (13 cm) woofer
Type Srdisc multirplay compact disc player Maximum input 100 W
Signal readout Nonrcontact, Srbeam semiconductor laser power
pickup Rated input power 50 W
D/A converter 17bit D/A converter Impedance 8 ohms
Frequency 20 , 20,000 HZ Dimensions Width: 77/8" (200 mm)
response Height: 12" (305 mm)
Dynamic range 90 dB (1 kHz) Depth: 771/16" (180 mm)
Weight 7.0 lbs. (3.2 kg)/each
