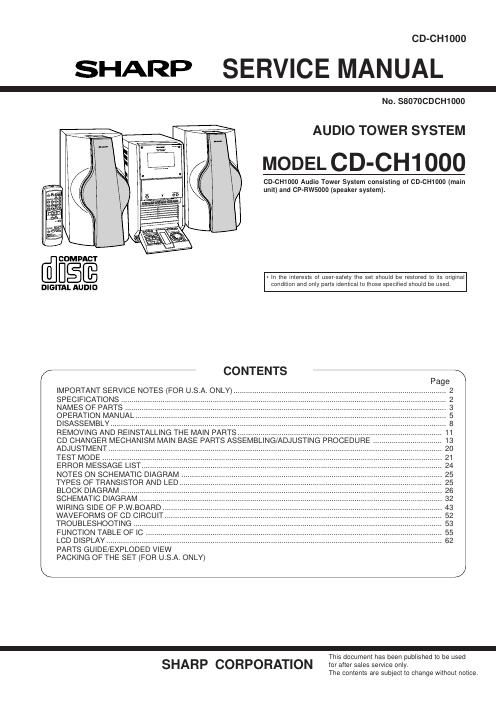

Sharp cd ch 1000 service manual

This is the 80 pages manual for sharp cd ch 1000 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 80
left right
sharp cd ch 1000 service manual

Extracted text from sharp cd ch 1000 service manual (Ocr-read)


Page 2

CD-CH1000

TO THE OPERATION MANUAL.

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)

Before returning the audio product to the user, perform the

following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched orthat hardware is not lodged between the chassis
and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,
cabinet, terminal board, adjustment and compartment covers
or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage
current in the following manner.

Plug the AC line cord directly into a 120 volt AC outlet.

Using two clip leads, connect a 1.5k ohm, 10 watt resistor

paralleled by a 0.15pF capacitor in series with all exposed

metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.

Use a VTVM or VOM with 1000 ohm per volt, or higher,

sensitivity to measure the AC voltage drop across the

resistor (See diagram).

Connect the resistor connection to all exposed metal parts

having a return path to the chassis (antenna, metal cabinet,

screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

VTVM
-0 AC SCALE 0-

1.5k ohms
10W


0.15pF
TEST PROBE CONNECT To
KNOWN EARTH
TO EXPOSED GROUND

METAL PARTS

Alltests must be repeated with theAC linecord plug connection
reversed.

Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

SPECIFICATIONS

CD-CH1000

I General

I Cassette deck

Power source

AC 120 V, 60 HZ

Frequency response

50-14,000 Hz (Normal tape)

Power consumption

175W

Signal/noise ratio

50 dB (recording/playback)

Dimensions Width: 7-7/8" (200 mm)
Height: 13-7/8" (352 mm)
Depth: 14-7/8" (377 mm)
Weight 21.4 lbs. (9.7 kg)
I Amplifier

Output power

100 watts minimum RMS per channel into 6 ohms from
60 HZ to 20 kHz, 10 % total harmonic distortion

Subwoofer: 60 W/ch

(60 Hz - 200 HZ, 6 ohms, 10 % T.H.D.)
Main: 40 W/ch

(200 Hz » 20 kHz, 6 ohms, 10 % T.H.D.)

Wow and flutter

0.3 % (WRMS)

I Tuner

Frequency range

FM: 875-1080 MHZ
AM: 530-1 ,720 kHz

CP-RWSOOO

Output terminals

Speakers: 6 ohms
Headphones: 16-50 ohms (recommended; 32 ohms)

Input terminals

Auxiliary: 500 mV/47 kohms

Type

3-way type speaker system
2" (5 cm) Tweeter

5-1/4" (13 cm) Woofer
5-1/4" (13 cm) Subwooter

M ' ' T t | 2 W
I CD player axrmum mputpower( o a) 00

Rated input power (Total) 100 W
Type 6»disc multi-play compact disc changer player Impedance 6 ohms
Signal readout Non»contact, 3-beam semiconductor laser pickup Dimensions Width' 8-1/4" (210 mm)
D/A converter 1-bit D/A converter Height: 15-7/16" (392 mm)
Frequency response 20 - 20,000 Hz Depth: 13-9/16" (345 mm)
Dynamic range 90 dB (1 kHz) Weight 11.2 lbs. (5.1 kg)/each

without prior notice.

Specifications for this model are subject to change
