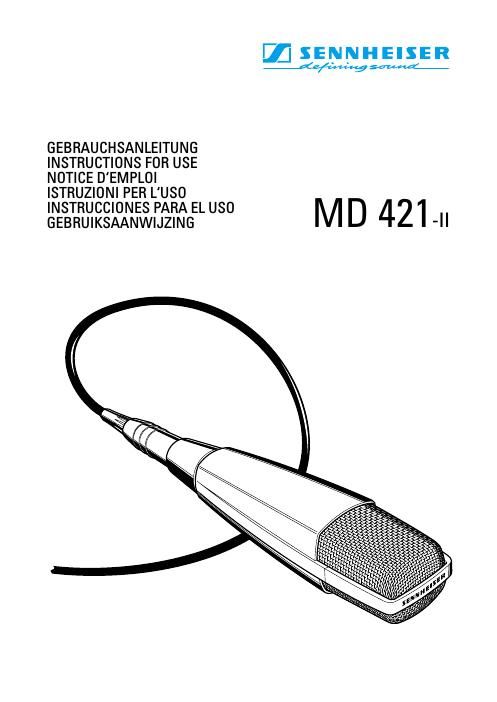

Page 1
MD 421 -II
Dynamisches Richtmikrofon mit Nierencharakteristik. Geeignet für Gesangs-/
Sprachübertragung und Instrumentenabnahme in allen Bereichen der Ton-
übertragungstechnik.
MERKMALE
- Gute Rückkopplungs- und Körperschalldämpfung
- Transparente Klangwiedergabe
- Ausgeprägte Richtcharakteristik mit weitem Öffnungswinkel
- Robust
- 5-stufiger Baßeinsteller
- Verriegelbare Stativhalterung
EMPFOHLENES ZUBEHÖR
Tischfüße:MZT 441, (Art.-Nr. 00799); MZT 100 (Art.-Nr. 01883).
Windschutze:MZW 40 (Art.-Nr. 01794); MZW 421: grau (Art.-Nr. 00536);
blau (Art.-Nr. 01527); rot (Art.-Nr. 1530)
TECHNISCHE DATEN
Ãœbertragungsbereich 30 - 17.000 Hz
Akustische Arbeitsweise Druckgradientenempfänger
Richtcharakteristik Niere
Max. Auslöschung bei 180º 18 dB - 2 dB
Feldleerlauf-Übertragungsfaktor 2 mV / Pa (= -54 dBV) ± 2,5 dB
Elektrische Impedanz 200 -„¦
Minimale Abschlußimpedanz 200 -„¦
Magnetfeldstörfaktor 50 Hz < 5 µV / 5 µT
Abmesungen in mm 215 x 46 x 49
Gewicht ca. 385 g
Lieferumfang 1 Mikrofon,
1 Stativhalterung
1 Adapter 3/8" 5/8"
Änderungen vorbehalten.
Page 2
MD 421 -II
Dynamic microphone with cardioid-shaped directional characteristic. Suitable
for vocal transmission and miking up instruments in all fields of live sound
transmission.
ITS FEATURES
- Good feedback and handling noise rejection
- Transparent sound reproduction
- Pronounced directional characteristik
- Robust
- 5 step roll-off filter
- Lockable stand holder
RECOMMENDED ACCESSORIES
Desk stands:MZT 441, (art.-no. 00799); MZT 100 (art.-no. 01883).
Windscreens:MZW 40 (art.-no. 01794); MZW 421: grey(art.-no. 00536);
blue (art.-no. 01527); red (art.-no. 01530)
TECHNICAL DATA
Frequency response 30 - 17,000 Hz
Acoustical mode of poeration pressure gradient transducer
Directional characteristic cardioid
Max. rejection at 180º 18 dB - 2 dB
Open circuit output level 2 mV / Pa (= -54 dBV) ± 2,5 dB
Electrical impedance 200 -„¦
Minimum load impedance 200 -„¦
Insentivity to magnetic field at 50 Hz < 5 µV / 5 µT
Dimensions in mm 215 x 46 x 49
Weight approax. 385 g
Delivery 1 microphone,
1 stand holder
1 adaptor 3/8" 5/8"
Subject to alterations.
