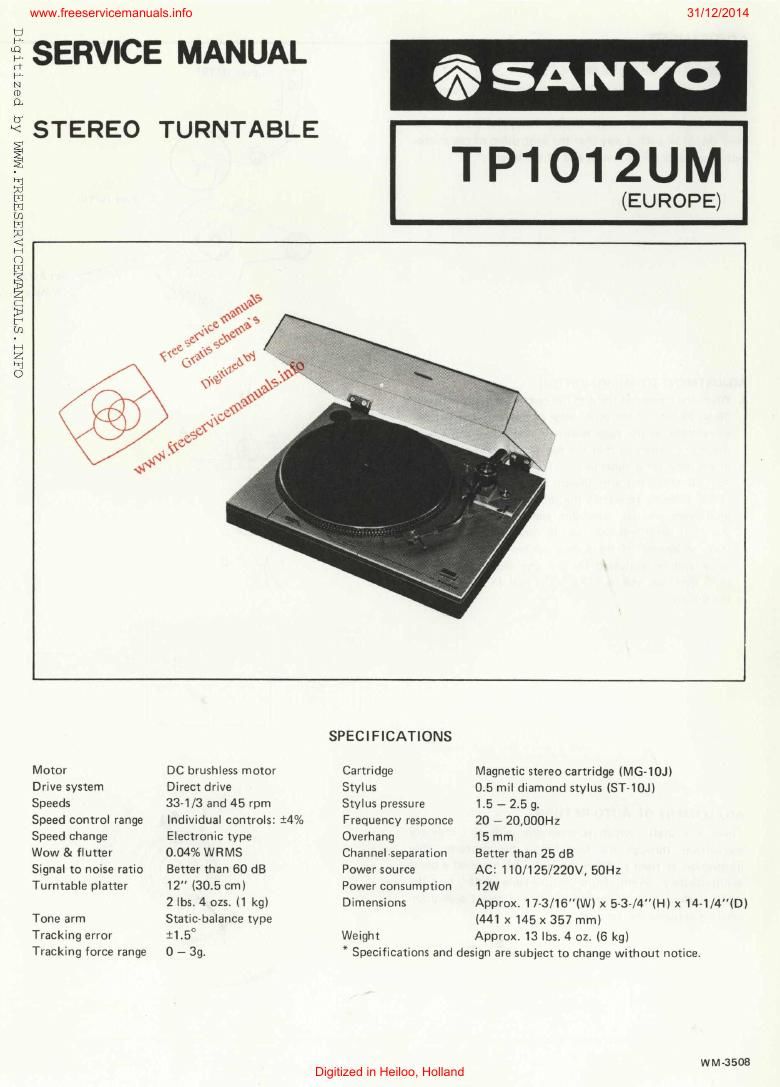

ADJUSTMENT

31/12/2014

ADJUSTMENT 0F TONEARM LEVER

Set the turntable unit upside down after putting the tonearm
on the arm rest and securing it.

Then, loosen the set screw lw/hex hole) and position the
lever (M15) in such a way that the protrusion of the micro-
switch contacts the foremost end of the lever.

ADJUSTMENT 0F MICRO-SWITCH

a. When the needle in the arm has reached a point between
35 to 38 mm of the outer edge of the record, insert the
screwdriver in the hole shown in the figure and adjust
the microswitch so that the turntable begins to revolve
or the neon lamp lights up.

b. As you move the arm toward the turntable, the lever
(M19) pressing down on the micro-switch will become
disengaged and the turntable will begin to revolve or
the neon lamp will light up. in order to make certain
that, whichever of these two actions takes place, the
other will be activated by the arm within a distance
of 5 mm, use the nut 2.6 x 10 mm (Y 9) to adjust
the timing.

ADJUSTMENT 0F AUTO-RETURN

There is a shaft which is accessible with an ordinary
screwdriver through the hole below the tonearm. (See
illustration at right.) When the stylus has reached a point
approximately 55mm from the turntable center, turn the
shaft clockwise or counterlockwise and select a position
where it actuates the autoreturn.

Digitized in Heil9_o' fiolland

j

i

Lever (M19)

Lever (M 1 5)

Set Screw
(W/he x hole)
