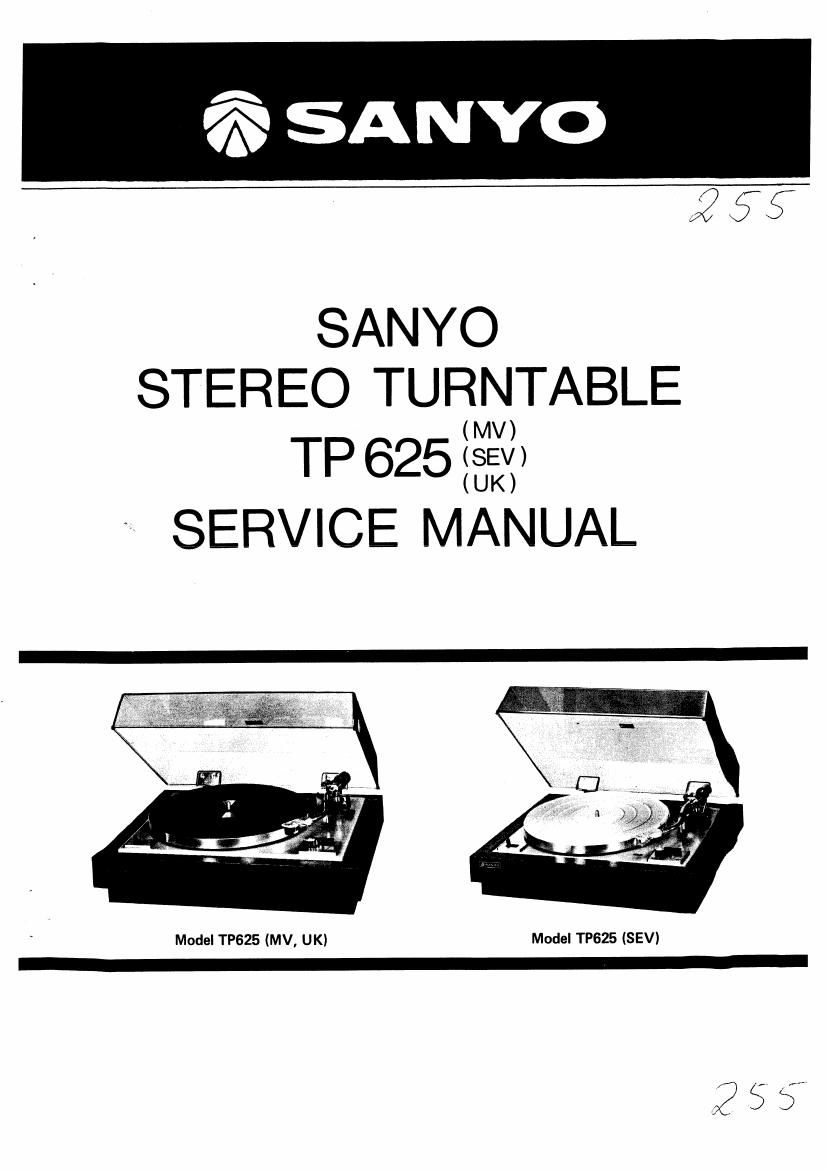

This is the 11 pages manual for Sanyo TP 625 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
SPECIFICATIONS
MOTOR Bi TURNTABLE SECTION
Motor
Drive System
Speeds
Wow and Flutter
Signal to Noise Ratio @Zf
Turntable Platter
Diameter
Weight
TONE ARM SECTION
Type
Effective Arm Length
Tracking Error
Tracking Force Range
Max. Usable Cartridge
Weight w/Headshell
CARTRIDGE SECTION
Type ,
Frequency Response
ADJUSTMENT
4-pole synchronus motor
Belt-driven
33-1/3 and 45 rpm.
0.08%
48 (15
Aluminum alloy die-cast
300 mm (11-13/16 inch)
1.0 kg (2 lb. 3 oz.)
Static-balce type (S-shape)
215 mm (8-1/2 inch)
+3°, 11"
0.5 to 3.5 g
209
Induced Magnetic (MG-28)
10 - 27K
Channel Separation
@ 1,000 Hz
Output Voltage
@ 50mm/soc.
Load Impedance
Stylus
Compliance @1,000H2
Tracking Force
Weight
MISCELLANEOUS
Power Requirement
Power Consumption
Dimension
Weigh!
NOTE:
15dB
2.0 ~ 3.8 mV
50 KS2
0.5 mill. Diamond (ST-28D)
5.1 X106 cm/dyne
1.5 - 2.5 g
6.0 9
MV (Switchable) 120/200/220/240 V
50/60 Hz
SEV HOV/220V 50Hz
UK 240V SOHZ
12.0 watts
Wide 452 mm
Depth 366 mm
Height 168 nm
7.8 Kg (Approx)
Specifications are subiect to change without notice for further improvement.
PICK-UP ARM HEIGHT ADJUSTMENT
Loosen the pickup arm height adjusting screw (103) and adjust the height by sliding the support arm (102) and secure the screw.
PICK-UP RAISING POSITION ADJUSTMENT (Return point)
Turn screw 139 clockwise to move outwards, and counterclockwise to move inwards.
