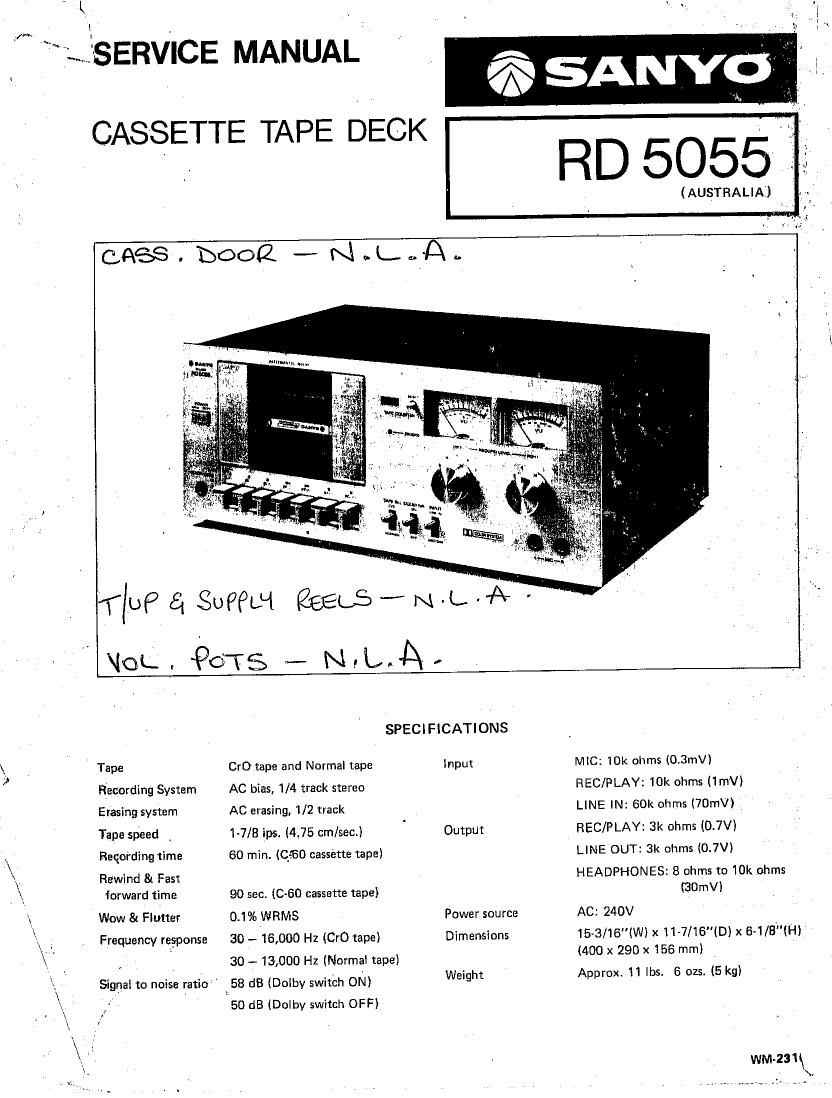

This is the 12 pages manual for Sanyo RD 5055 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
DISASSEMBLY 0F CABINET & CHASSIS
Be sure to unplug the power cord before disassembling the
cabinet and chassis of this unit. Then, go through the
following steps:
1. Remove the four screws (binding head screw 3 x 8 mm),
two on each side, and lift the top cover off the unit.
2. Turn the unit upside down and make it rest on the top.
' After removing the two screws (pan head tapping screw
3 x 10 mm), take off the bottom lid, sliding it forward.
.-
Binding Head Screw
3mem .-
Tapplng Screw
with Washer
axfimm
Tapping Screw 3x 10m
TORQUE ADJUSTMENT
1. Set the unit to the PLAY, FAST FORWARD or REWI ND
mode.
2. Measure the each torque with a torque gauge. They should
be as following: -
PLAY 30 - 60 g/cm
FAST FORWARD 55 - 90 g/cm
REWIND 55 - 100 g/cm
3. 'If the each torque fails to reach the standard value. Clean
the drive belt, flywheel, motor pulley, take-up reel, idler
and rewind roller with a cotton swab soaked in alcohor.
. Remove the control knobs (viz. Recordlevell located
Tapping Screw
with Washer 3X8mm
4"
on the front panel.
. Remove the six screws (pan head tapping screw -
w/washer 3 x 8 mm} fastening the front panel, which
can then be taken off.
The cassette lid' Is separable from the unit. Take it off
when cleaning the tape-heads.
Binding Head Screw
-° examm
Tapping Screw
with Washer 3xamm
Topping [Screw
with Washer
3 x Bmm
if) L
Input Level
4 Adjust Knob
Topping Screw
with Washer 3x8mm
