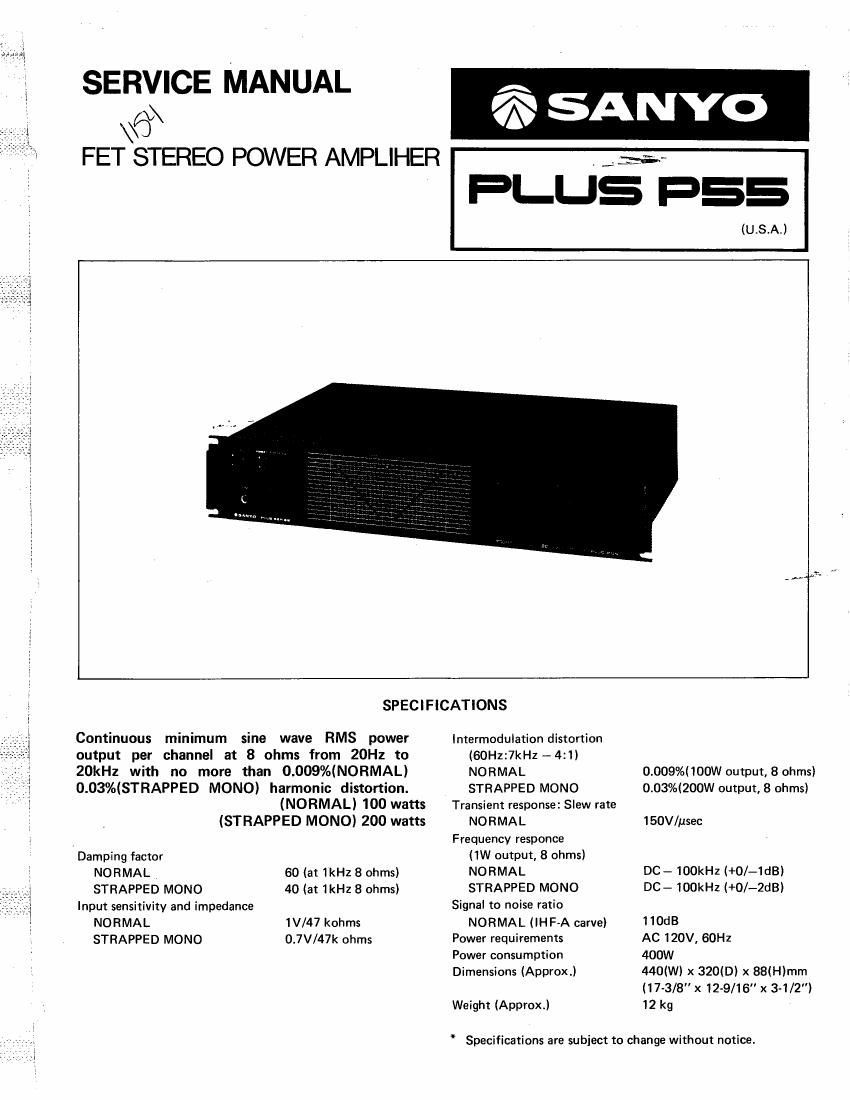

Sanyo Plus P55 Service Manual

Extracted text from Sanyo Plus P55 Service Manual (Ocr-read)


Page 2

HOW TO REMOVE THE CABINET AND
PANELS

Be sure to have the power cord pulled out from the

consent.

1) Unscrew 12 (flat head 4 x 12 mm) screws fastening
both side panels.

2) Remove five (two flat head 4 x 12 mm and three
flat head tapping 3 x 8 mm) screws fastening the
front panel.


Speaker Select Knob

3) As the headless w/Hex hole 3 x 4 mm screwfastening
the speaker changeover switch is unscrewed, the
front panel can then be removed.

4) As seven (baind Lemma 3 x 6 mm) screws
fastening the cabinet are unscrewed, the surroundings
of the set amounts to being removed.

Side panel (Right)

a
0

a: Flat Hd. Screw 4x12mm
b: Flat Hd. Screw 3 x 8mm
c: Bind Hd. Tapping Screw 3 x 6mm
