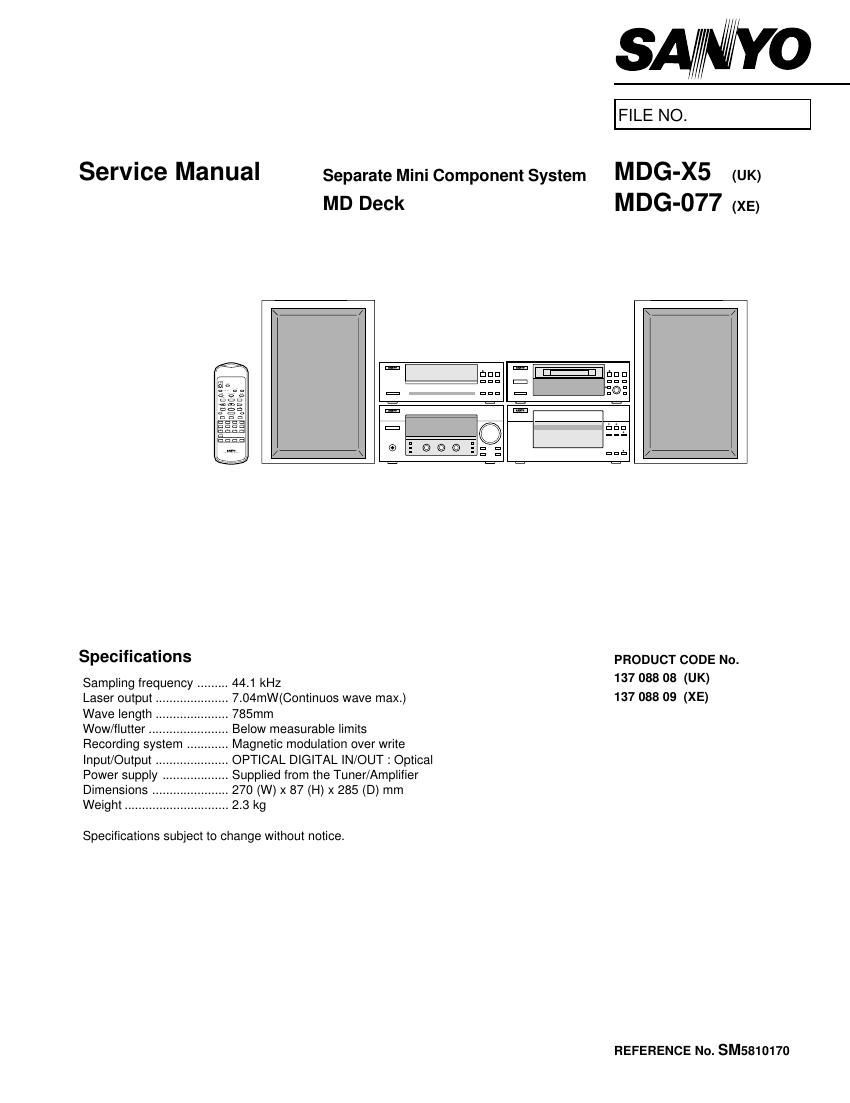

Sanyo MDG 077 MDG X5 Service Manual

This is the 13 pages manual for Sanyo MDG 077 MDG X5 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 13
left right
Sanyo MDG 077 MDG X5 Service Manual

Extracted text from Sanyo MDG 077 MDG X5 Service Manual (Ocr-read)


Page 1

- 1 - LASER BAEM SAFETY PRECAUTION - Pick-up that emits a laser beam is used in this CD player section. CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE LASER OUTPUT .......... 0.6 mW Max. (CW) WAVE LENGTH ........... 790 nm SYSTEM CONNECTOR OPTICAL D G TAL OUT N CAUTION -“ NVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. ADVARSEL -“ USYNLIG LASER STRĂ…LING VED Ă…BNING, NĂ…R S KKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGĂ… UDS ÆTTELSE FOR STRĂ…L NG. VARN NG -“ OSYNLIG LASER STRĂ…LNING NĂ„R DENNA DEL Ă„R Ă–PPNAD OCH SPĂ„RR Ă„R URKOPPLAD. STRĂ…LEN Ă„R FARLIG. VORSICHT -“ UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEL GEĂ–FFNET UND WENN SICHERHEITSVERR EGELUNG ĂśBERBRĂśCKT IST. NICHT, DEM STRAHL AUSSETZEN. VARO -“ AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NĂ„KYMĂ„TTĂ–MĂ„LLE LASERSĂ„TE LYLLE. Ă„LĂ„ KATSO SĂ„TEESEEN. (MD DECK) REPLACEMENT AND LUBRICATION OF THE MD DOOR TB1401B EM-30LGHOOK Remove it from, and is a method MD door 1. A point of a coil(Front right side) is pinched with tweezers, and it is taken off a hole of MD door. A spring turns then, and seem not to be exhausted. 2. A ditch of a door is to be pushed from face, and MD door is taken off an axis. 3. MD door axis is avoided. MD door installation method 1. Put molykote (EM-30LG) on door contact department. 2. Fit turns an axis into ditch 2 places of MD door after installing door shaft, and install it with care in installation direction. 3. Pinch a point of coil spring with tweezers, and hang it on a hole of a door. (XE)

Page 2

- 2 - 11 Y04Y04 Y04 Y04 Y04 15 14(75) Y01 Y01Y03 Y03 Y03 Y03 Y01 1 2 34 5 6 7 8 9 12 10 13 71 7273 74 51MM03 MM02 MM01 MM00 16 Y06Y06 Y06 Y07Y07Y08 Y09 Y09 Y02 Y02 Y05 52 5375 76 54 5454 54 54 77 EXPLODED VIEW (CABINET,CHASSIS & MD MECHANISM)
