Sanyo ECD T1137S Owners Manual

This is the 16 pages manual for Sanyo ECD T1137S Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 16
left right
Sanyo ECD T1137S Owners Manual

Extracted text from Sanyo ECD T1137S Owners Manual (Ocr-read)


Page 1

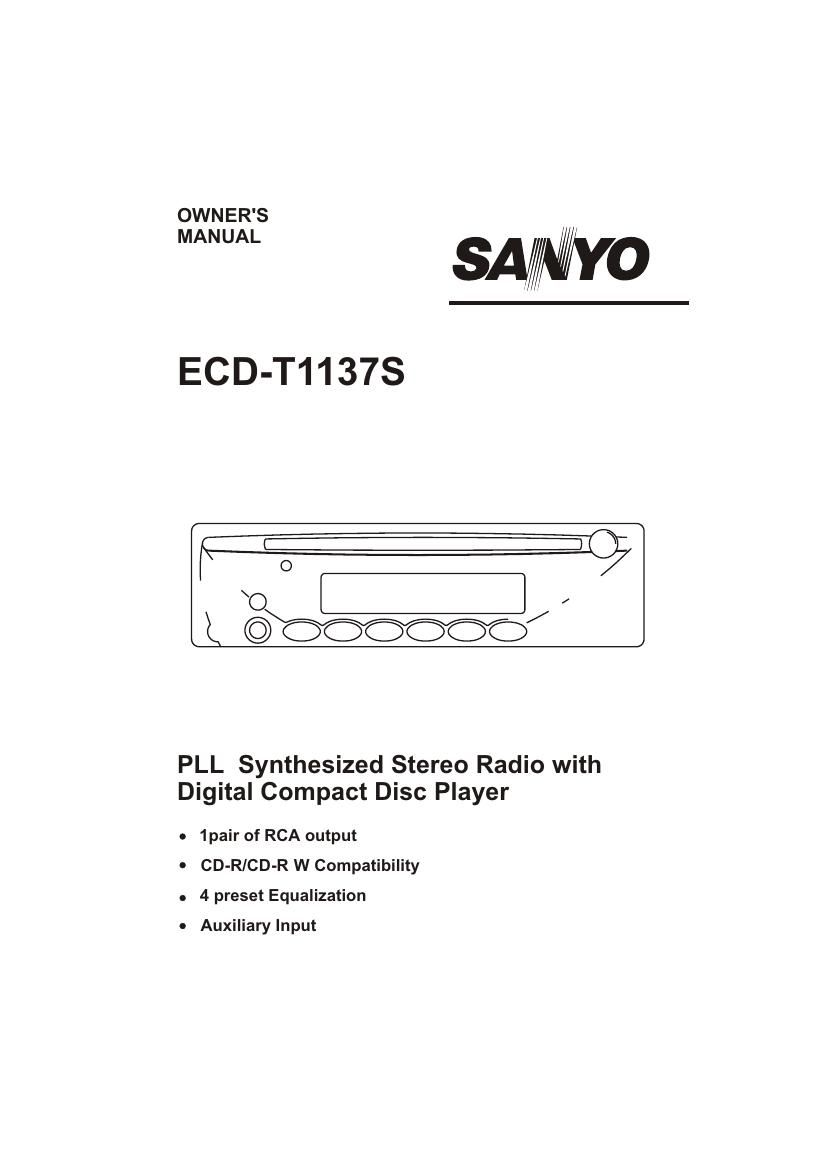

OWNER'S

MANUAL SAW/WC

ECD-T1137S

F 2 a?
\o :l /
L @m/

PLL Synthesized Stereo Radio with
Digital Compact Disc Player

1pair of RCA output
CD-RICD-R W Compatibility

4 preset Equalization

Auxiliary Input

Page 2

INSTALLATION

Notes:

I Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.

0 Before finally installing the unit, connect the wiring temporarily and make sur e it is
all connected up properly and the unit and the system works properly.

0 Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.

o Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.

0 Install the unit where it does not get in the driver's way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.

0 If installation angle exceeds 30from horizontal, the unit might not give its optimum

performance.
f \ 30 D
i

I Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater, or where it would be subject to dust,
dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front" (conventional DIN Front-mount)
or "Rear"(DlN Rear-mount installation, utilizing threaded screw holes at the sides of
the unit chassis). For details, refer to the following illustrated installation methods.

DIN FRONT-MOUNT (Method A)

Installation of the unit

1. Dashboard

2. Holder
After inserting the holder into the
dashboard, select the appropriate tab
according to the thickness of the
dashboard material and bend them
inwards to secure the holder in place.

3. Screw
