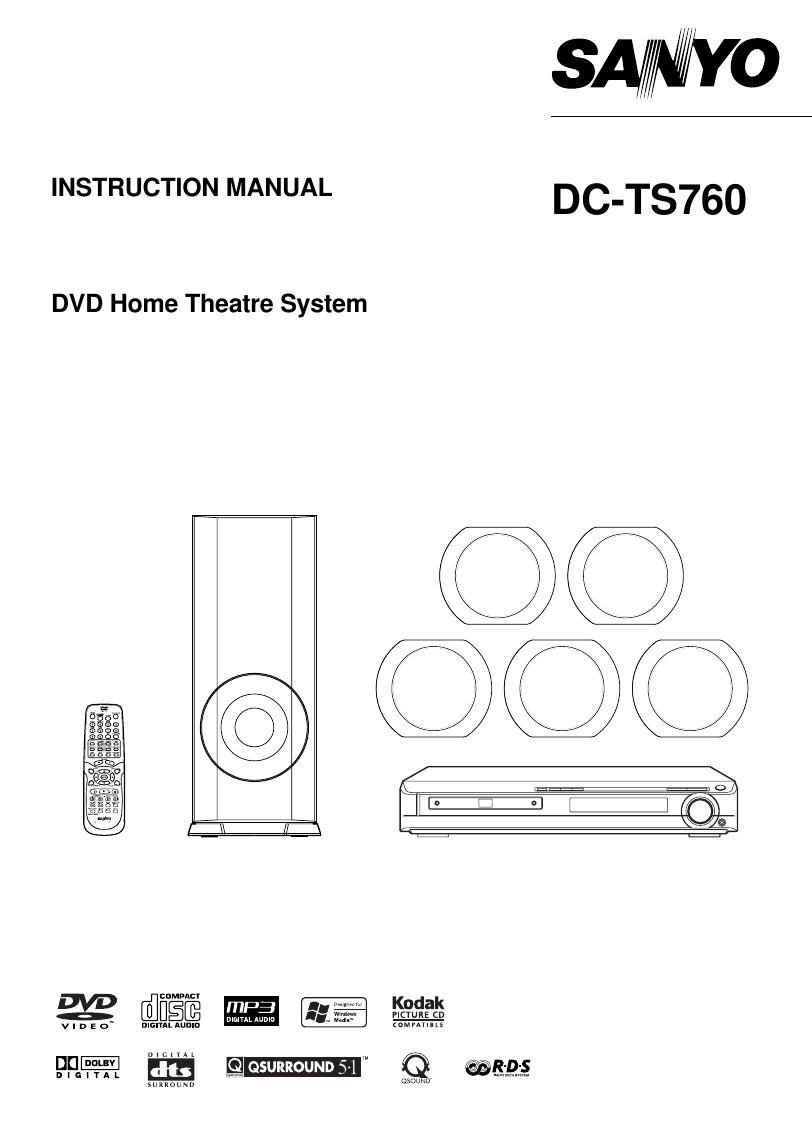

Sanyo DC TS760 Owners Manual

This is the 28 pages manual for Sanyo DC TS760 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 28
left right
Sanyo DC TS760 Owners Manual

Extracted text from Sanyo DC TS760 Owners Manual (Ocr-read)


Page 1

1 PRECAUTIONS CAUTION THIS PRODUCT CONTAINS A LOW POWER LASER DEVICE, TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE OF THE PRODUCT. REFER ALL SERVICING TO QUALIFIED PERSONNEL. - The apparatus shall not be exposed to dripping or splashing. - No objects filled with liquids, such as vases, shall be placed on the apparatus. - Do not use where there are extremes of temperature (below 5°C or exceeding 35°C) or where direct sunlight may strike it. - Because of the DVD playerÕs extremely low noise and wide dynamic range, there might be a tendency to set the volume on the amplifier unnecessarily high. Doing so may produce an excessively large output from the amplifier which could damage your speakers. - Sudden changes in the ambient temperature may cause condensation to form on the optical lens inside the unit. If this happens, take out the disc, leave the unit for about 1 hour, and then proceed to operate. - When carrying the unit, be sure to remove any disc which may be inside and turn the power off. Wait at least 10 seconds, then unplug the mains lead from the AC outlet. Carrying the unit with a disc inside may damage the disc and/or the unit. - Do not install this equipment in a confined space, such as a book case or built in cabinet. - The unit is automatically set to the screen saver mode after approximately 15 minutes have elapsed under the stop or pause mode.- Placing the unit in a well ventilated area is strongly recommended. Do not place any object on the top of the unit. Do not block ventilation holes. The cabinet of the unit warms up when it is used for a long time, but it is not a malfunction. Important Information: To connect this unit to a TV, TV must have a Video input socket or an EURO-AV/SCART socket. You cannot use an RF input socket or aerial terminal to connect this unit. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. TABLE OF CONTENTS PRECAUTIONS .......................................... 1 CONTROLS ................................................ 2 REMOTE CONTROL .................................. 3 BASIC CONNECTIONS .............................. 4 ADDITIONAL CONNECTIONS EXAMPLES ....... 7 SYSTEM CONNECTIONS EXAMPLES ...... 8 BEFORE OPERATION .............................. 10VARIOUS ADJUSTING ............................. 11 PLAYABLE DISCS .................................... 12 DISC PLAY ............................................... 13 VARIOUS DISC PLAYING FUNCTIONS .... 14 MP3/WMA CD OPERATION ....................... 18 PICTURE CD OPERATION ........................ 19 INITIAL SETTINGS FOR DVD ................... 20 The unit is not disconnected from the mains unless it is unplugged from the AC outlet. IMPORTANT If the plug supplied with this equipment is not suitable for the socket outlets in your home it should be cut off and replaced with the correct type. Disposal of Plug If the non rewireable plug is to be cut off, the removed plug should be disposed of carefully as there is a shock hazard should the plug be inserted into a live socket. Replacing Fuse The detachable fuse cover must be replaced after changing the fuse. Only a 3A fuse should be used and should comply with BS1362 and should carry the ASTA mark .The wires in the mains lead are coloured in accordance with the following code; Blue Neutral Brown Live The wires in the mains lead must be connected to the terminals in the plug as follows; Wire colour Plug terminal marking Blue N or Black or Blue Brown L or Red or Brown Do not connect either wire to the earth terminal. If the mains plug contains a fuse this should be 3A, if a plug without a fuse is used the distribution board fuse should not be greater than 5A. LANGUAGE CODE LIST ........................... 22 LISTENING TO OTHER SOURCES ........ 22 LISTENING TO THE RADIO .................... 23 SLEEP TIMER OPERATION .................... 24 MAINTENANCE ....................................... 24 TROUBLESHOOTING GUIDE ................. 25 SPECIFICATIONS .................................... 26

Page 2

2 CONTROLS 1. Disc tray 2. Open/Close button (q) 3. Function button (FUNCTION) 4. Preset tuning, Skip/Next/Previous buttons (f Ð PRESET + e) 5. Display 6. Stop button (n) 7. Play button (a) 8. Power button (z/ON) 9. Headphones socket (PHONES) 10. Volume control (VOLUME) 11. Remote sensor (IR) 1. Dolby Digital indicator (s D) 2. DTS indicator (dts) 3. Play indicator (a) 4. Last memory indicator (L.M.) 5. Pause indicator (k) 6. MP3 indicator (MP3) 7. WMA indicator (WMA) 8. Title and Track indicator (T) 9. Message or number indicators (Title, chapter, track, playing time or other information)10. Sleep indicator (SLEEP) 11. RDS indicator (RDS) 12. FM mono indicator (MONO) 13. FM stereo indicator (ST) 14. Chapter indicator (C) 15. Random play indicator (RND) 16. Audio channel indicator (L, R) 17. Repeat mode indicators (ALL, REP., 1, A-B) 18. Programme indicator (PGM) 19. Dolby Pro Logic indicator (s PL) Front panel Display ACCESSORIES RB-TS760ST remote control R6 (HP 7) battery x 2 AM loop aerial FM aerial wire Video lead Front right speaker lead (Black and Red)Front left speaker lead (Black and White) Centre speaker lead (Black and Green) Surround right speaker lead (Black and Gray) Surround left speaker lead (Black and Blue) Subwoofer lead (Black and Violet) Screw kit 2 3 6 7 8 4 5 1 11 10 9 SLEEP RDS MONO ST D L.M. MP3 PL WMA PGM ALL REP. 1A-B L R RND T C 1 10 2 8 9 4 6 3 7 5 12 13 14 17 15 18 19 11 16
