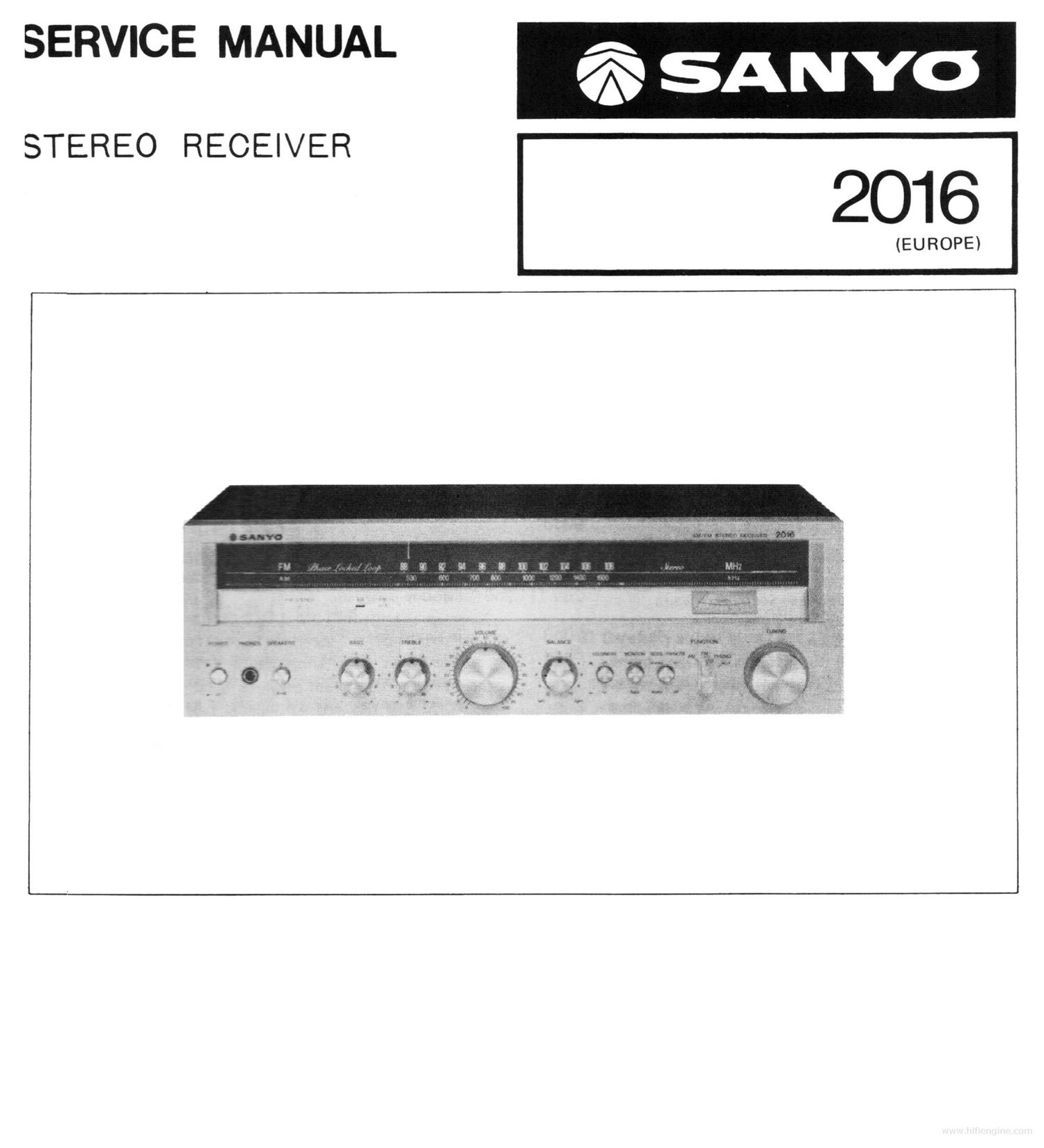

sanyo 2016 sm

Extracted text from sanyo 2016 sm (Ocr-read)


Page 2

SPECIFICATIONS

Amplifier Section

Continuous minimum sine wave RMS power output per channel at 8 ohms from 40Hz to 20kHz with no more

than 0.3% harmonic distortion.

Input sensitivity for rated FTC power and impedance

Phono
Aux
Tape Play
Output for rated FTC power
Tape Rec
Overall frequency response
Phono RIAA standard curve
Aux 20Hz — 20kHz
Tape Play 20Hz — 20kHz
Tone control response
Bass at 100Hz
Treble at lOkHz
Loudness control response
Volume set —30dB at 100Hz
Volume set —30dB at lOkHz

16 watts

2.5mV/47k Ohms
150mV/47k ohms
150mV/47k ohms

150mV
i0.8dB
i0.7dB
i0.7dB

i10dB
:10dB

+8dB
+3dB

Hum and noise ratio with FTC power (lHF, short-circuited, A network}

Phono
Aux
Tape Play

. FM Tuner Section
Frequency range
Usable sensitivity
Signal-to-noise ratio (at 65dBf)
at Mono
at Stereo
Harmonic distortion (at 65dBf)
at Mono
at Stereo
AM suppression (30% 400Hz AM)
Spurious response at 98MH2
Alternate channel selectivity
lmage rejection at 98MHz
lF rejection at'98MHz
Capture ratio
Stereo separation at lkHz
Antenna input

AM Tuner Section
Frequency range

82dB (at lOmV)
90dB
90dB

87.5 —108MH2
ZuV (11.2dBfl (Monol

70dB
65dB

0.3% (at ll< z)
0.4% (at 1k 2)
55dB

70dB

55dB

50dB

80dB

3.0dB

40dB

300 ohms balanced

530 — l605kl—lz

Sensitivity BOOuVFm
Signal-to-noise ratio 45d8
lmage rejection 45dB
IF rejection 30dB
Selectivity 30dB
Antenna Built-in ferrite bar antenna and ext, ant, terminal.
General
Power requirements AC: 220V, SOHZ
Power consumption 120W
Dimensions 17-5/16”W x 5-7/16"H x 12-7/16"D
(440 x138 x 315mm)
Weight Approx. 12 lbs. 2 025. (5.5kg)
*Specifications subject to change without notice.
NOTE

When the receiver is operating a long time maximum continuous output power with connecting of a 4 ohms
speaker per channel or two 8 ohms speakers in parallel per channel, the thermal fuse in the power transformer
may be blown to protect the receiver from damage.
