Sansui XR Q9 Owners Manual
This is the 32 pages manual for Sansui XR Q9 Owners Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Sansui XR Q9 Owners Manual (Ocr-read)
Page 1

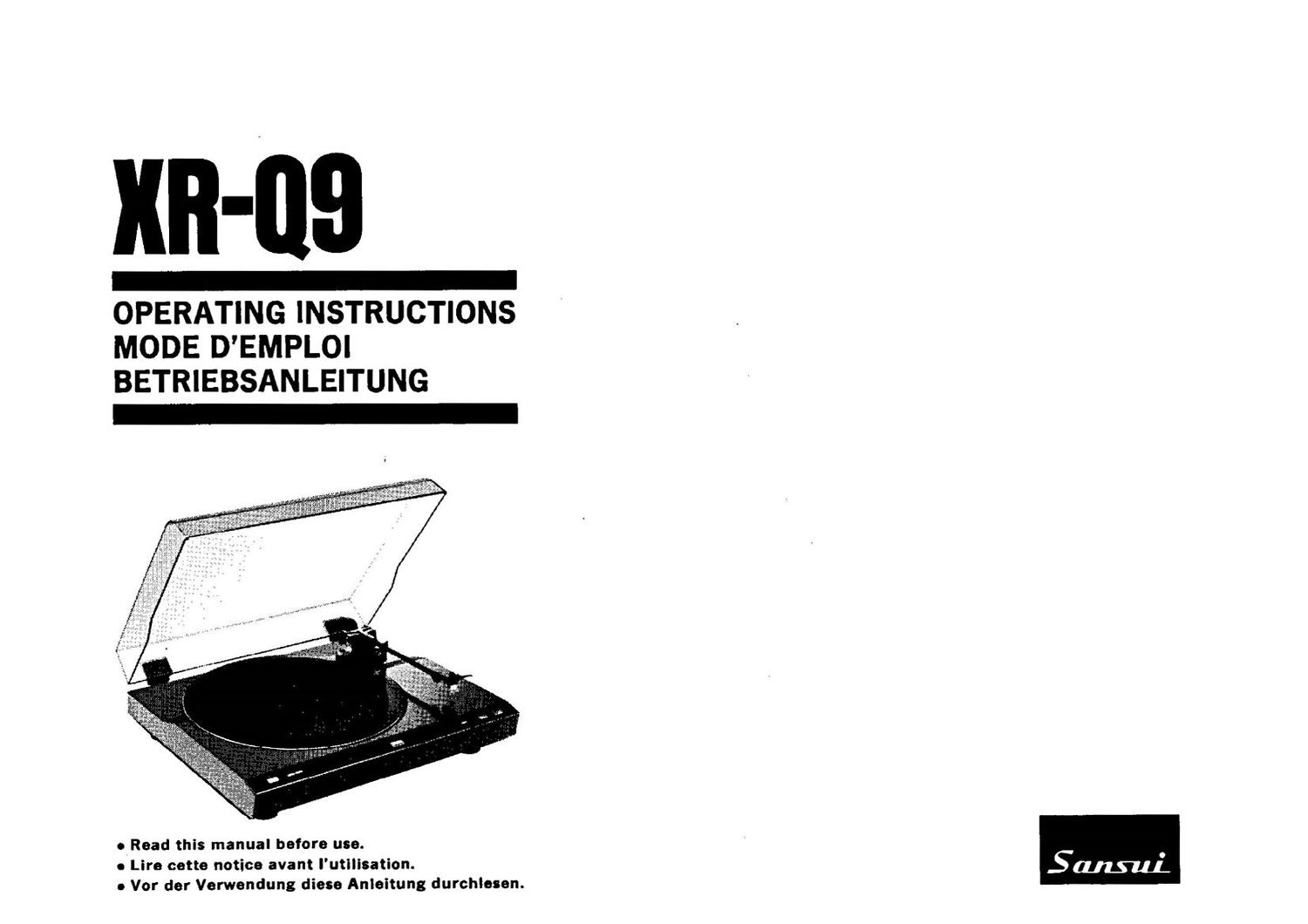

OPERATING INSTRUCTIONS
MODE DEMPLOI
BETRIEBSANLEITUNG
o Read this manual before use.
0 Lira cotte notice avant l'utlllsation.
o Vor der Verwendung diese Anleltung durchhsen.
Page 2
We are grateful for your choice of the SanSui XROQ stereo turntable.
This precision instrument is designed to -give you many years of superb
hi-fi performance. We suggest that you read through this manual at least
once for instructions on correct assembly procedures, connection with
other equipment and correct operating procedures.
Precautions ................................. 4
Controls and parts callouts ........................ 6
Setting-up and connections ........................ 8
Operation ................................. 18
Some useful hints ............................. 22
Trouble and repair ............................. 26
Specifications ................................ 28
WARNING: To prevent fire or shock hazard,
do not expose this appliance to rain or
moisture.
0 The Model No. and Serial No. of your unit are shown on its back
panel.
0 Do not lose the Warranty Card that carries your unit's Model No.
and Serial No.
Page 31
Spécifications de la cartouche (applicables uniquement pour
les appareils aI cartouche)
Modéle SV-101
Type .................... Double aimant
Réponse de fréquence .......... 10 ~ 20.000 Hz
Tension de sortie ............. 2,5 mV par canal
(1.000 H2 35,4 mm/s)
lmpédance de charge ........... 47 k9
Force sur Ie sillon ............ 2 9
Points de lecture ............. Diamant sphérique, 0,6 mil,
(SN.101)
' La présontation at spécifications sont susceptible: ddtre modifiées
sans prévis par suite d 'ameliorations eventualles.
Pour simplifior les oxpllcations, lea illustrations pouvont quelquofois
Ctro différentos dos originaux.
Technische Daten des Tonabnehmers (gilt nur fiir Gera'te mit
Tonabnehmer)
Modell SV-101
Typ .................... Doppelmagnet
Frequenzgang ............... 10 bis 20.000 Hz
Ausgangsspannung ............ 2,5 mV pro Kanal
(1.000 H2, 35,4 mm/sek)
Lastirnpedanz ............... 47 kn
Auflagekraft ............... 2 g
Nadel ................... 0.6 mil, sphérischer Diamant
(SN-101)
' Anderungen, die dam tochnischen Fonschritt dienan, bloibon verbo-
halten.
Um die Erliutorung zu voroinfachon, kénnon die Abbildungen
manchmal vom Original abweichon.
31
