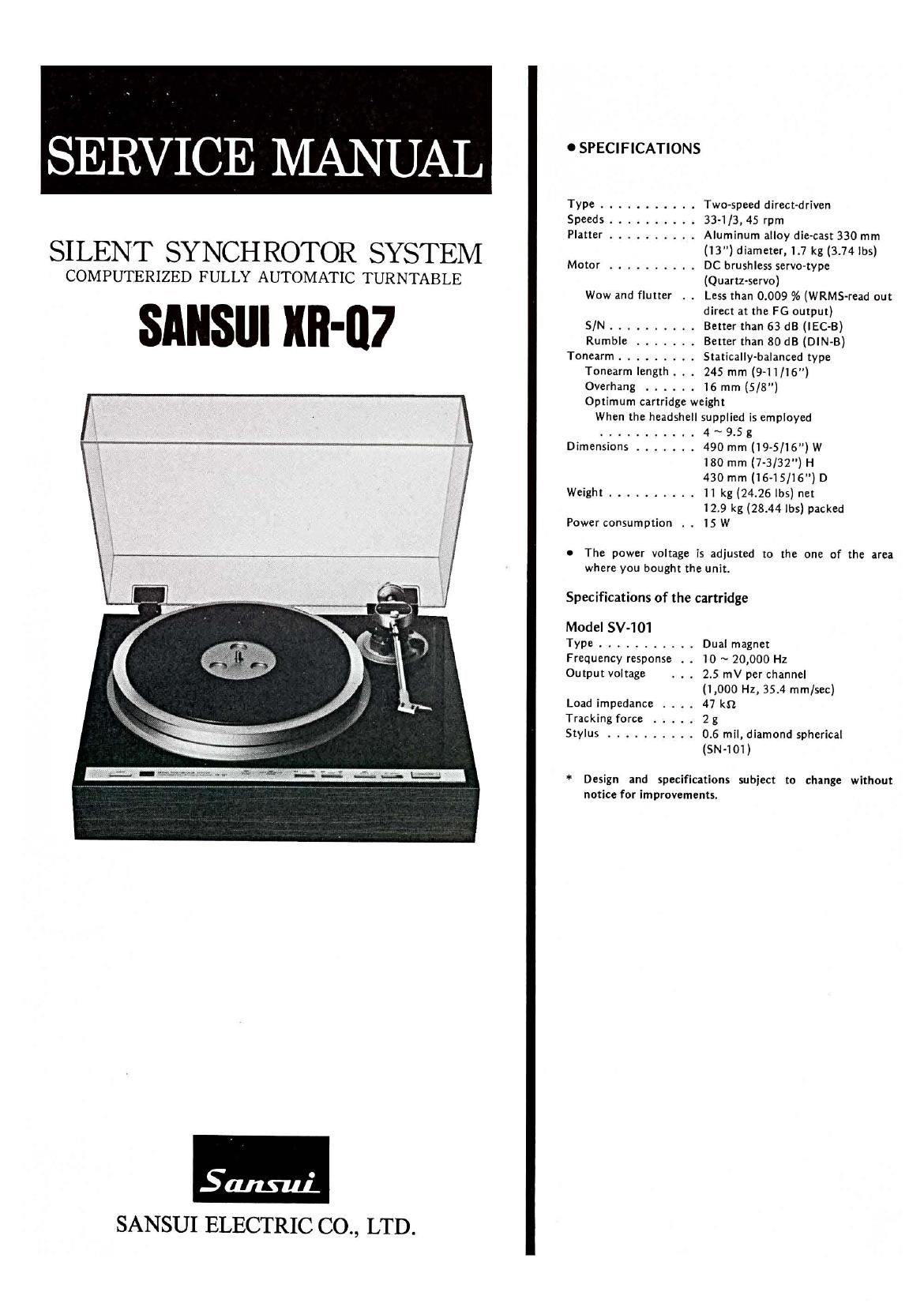

SERVICE MANUAL
SILENT SYNCH ROTOR SYSTEM
COMPUTERIZED FULLY AUTOMATIC TURNTABLE
SANSUI XII-07
SANSUI ELECTRIC CO., LTD.
0 SPECIFICATIONS
Type ........... Two-speed direct-driven
Speeds .......... 33-1/3, 45 rpm
Platter .......... Aluminum alloy die-cast 330 mm
(13) diameter, 1.7 kg (3.74 lbs)
Motor .......... DC brushless servo-type
(Quartz-servo)
Wow and flutter . . Less than 0.009 % (WRMS-read out
direct at the FG output)
S/N .......... Better than 63 dB (lEC-B)
Rumble ....... Better than 80 dB (DIN-B)
Tonearm ......... Statically-balanced type
Tonearm length. . . 245 mm (9-11/16")
Overhang ...... 16 mm (5/8)
Optimum cartridge weight
When the headshell supplied is employed
........... 4 ~ 9.5 3
Dimensions ....... 490 mm (19-5/16) W
180 mm (7-3/32") H
430 mm (16-15/16) D
Weight .......... 11 kg (24.26 lbs) net
12.9 kg (28.44 lbs) packed
Power consumption . . 15 W
I The power voltage is adjusted to the one of the area
where you bought the unit.
Specifications of the cartridge
Model SV-101
Type ........... Dual magnet
Frequency response . . 10 ~ 20,000 Hz
Output voltage . . . 2.5 mV per channel
(1,000 Hz, 35.4 mm/sec)
Load impedance . . . . 47 kn
Tracking force ..... 2 g
Stylus .......... 0.6 mil, diamond spherical
(SN-101)
* Design and specifications subject to change without
notice for improvements.
