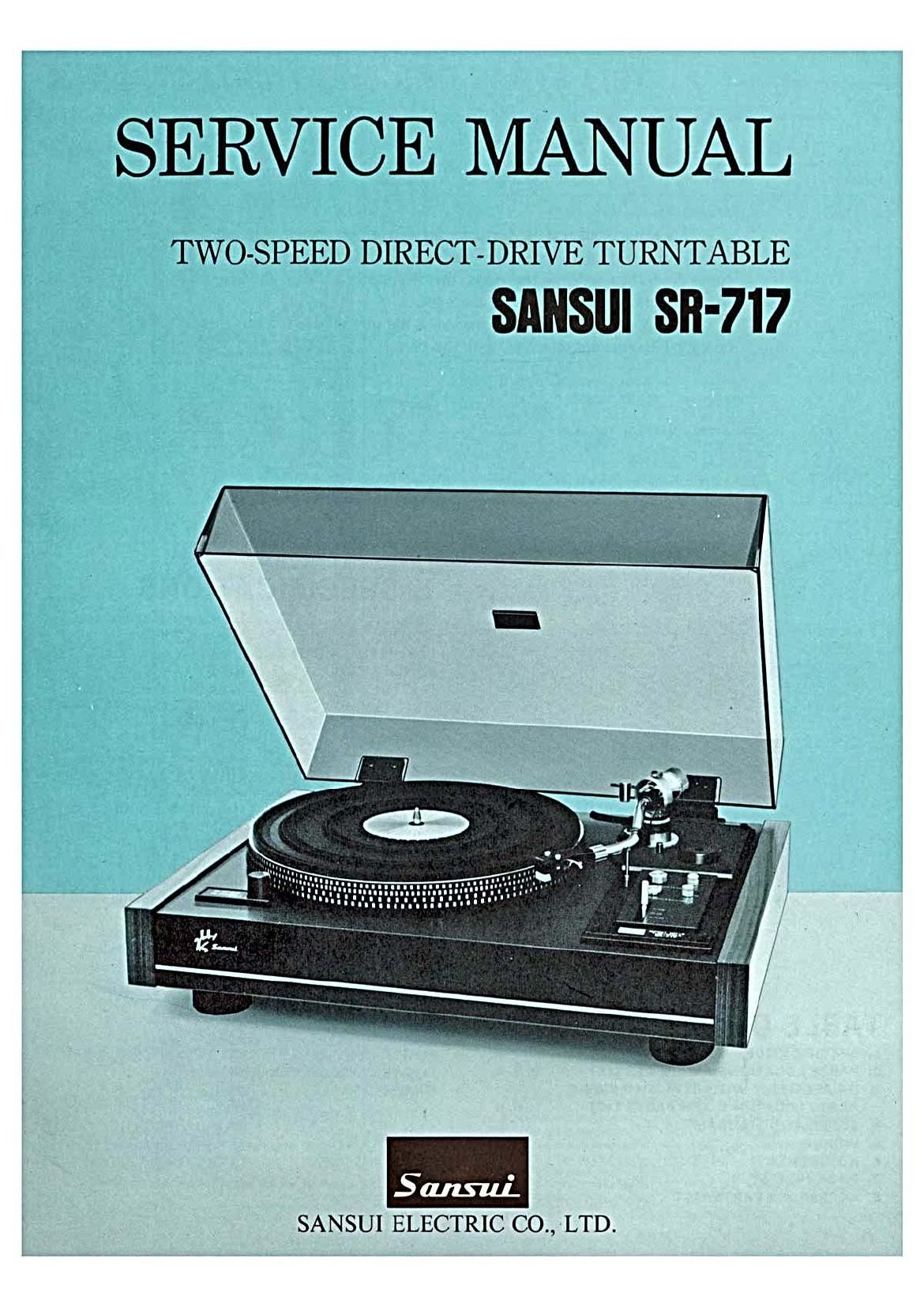

Sansui SR 717 Service Manual

Page 2

This service manual is designed for service engineers to repair,
adjust, maintain and order the replacement 'parts of the SR-717
correctly. When ordering the parts, use the stock number and parts
name specifically referring to the parts list.

For general usage and maintenance of the unit, please refer to the
operating instructions attached with the unit.

TABLE OF CONTENTS

rupee

.SPECIFICATIONS ................................. 1
PARTS LOCATIONS AND PARTS LIST ...... 2. 3, 4
DISASSEMBLY WITH EXPLODED VIEWS.

PARTS LOCATIONS AND PARTS LIST ........ 5, 6
SCHEMATIC DIAGRAM .......................... 6
WIRING .......................................... 6
ADJUSTMENT .................................... 7
PACKING LIST .................................... 7
ACCESSORY PARTS LIST ........................ 7

1. SPECIFICATIONS

TYPE ....................
SPEEDS ..................
FINE SPEED ADJUSTMENT

RANGE ..................
PLATTER ................

WOW & FLUTTER ......
S/N ..................
TONEARM ..............
TONEARM LENGTH . . .
OVERHANG

Two-Speed Direct Drive
33% and 45r.p.m.

14%

Aluminum alloy die cast
30cm (12) diameter, 1.4kg
(3.1 lbs)

20-pole

brushless DC serbo-type
0.035% (W.R.M.S.)

Better than 60dB
Statically-balanced
S-shaped tubular

.235mm (9%)
' 16.5mm (%)

SUITABLE CARTRIDGE WEIGHT

FEATURES

POWER REQUIREMENTS.
POWER CONSUMPTION.
DIMENSIONS ............

WEIGHT ................

4 to 113 (11 to 18g using
sub-weight)
Direct-readout stylus
pressure dial, 4-contact
plug-in head shell, oil-
damped tonearm lifter,
inside-force canceller,
lateral balancer, sub-
weight etc.

.100, 117, 220, 240v 50/60Hz
.sw (Rated)

508mm (20) W,
182mm (7%) H,
394mm (15%) D
13.1kg (28.9 lbs) net,
15.1kg (33.3 lbs) packed

Design and specifications subject to change without notice
