Sansui SR 212 Owners Manual

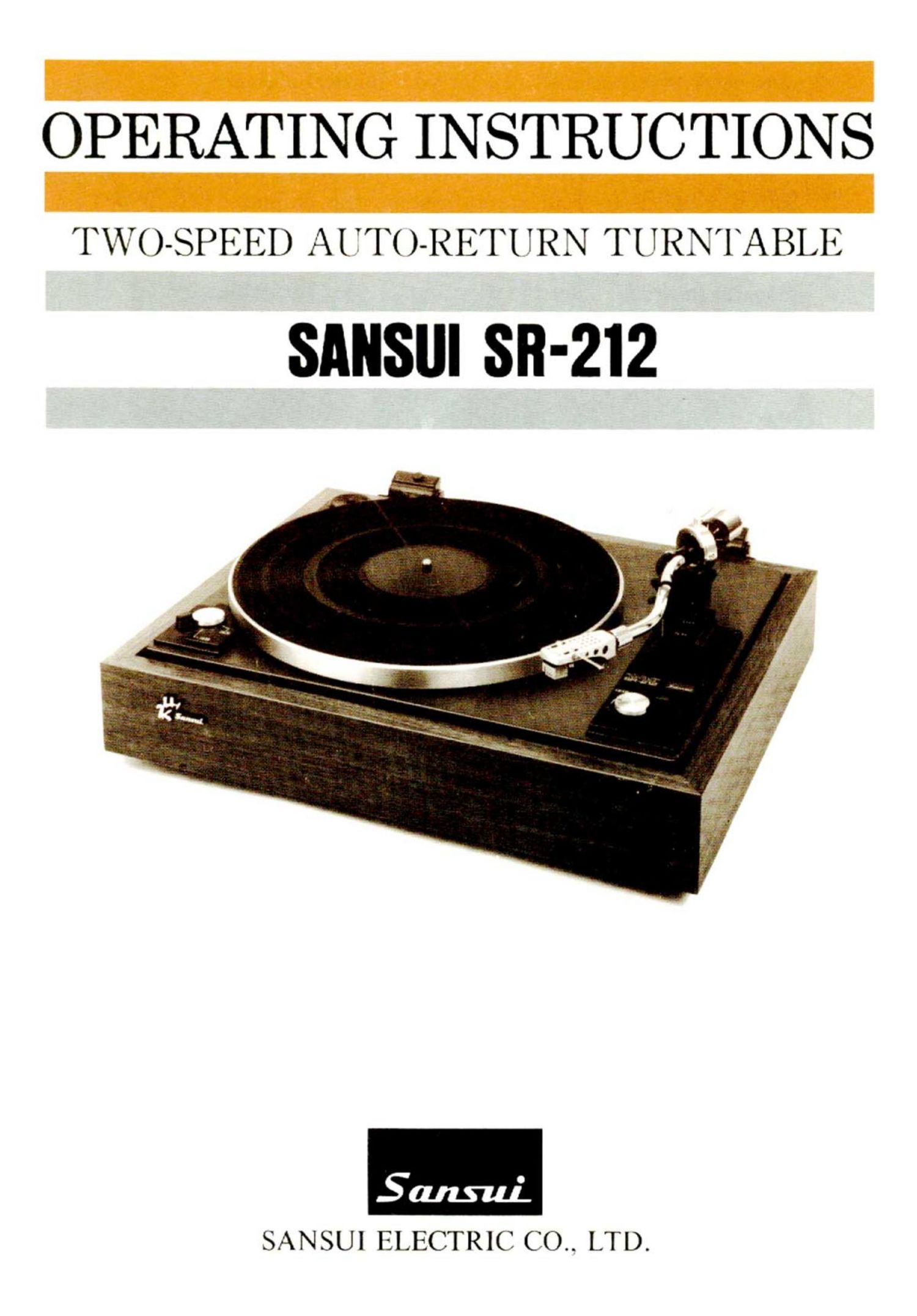

Page 1

OPERATING INSTRUCTIONS
-

'IWO-SPEEI) A I T( IRETI TRN TI IRN'IA BLIC

SANSUI 88-212

SANSUI ELECTRIC CO. LTD.

Page 2

We thank you for having selected and purchased our auto-stop/
auto-return turntable SR-212 for your musical pleasure.

The SR-212 is an all-round turntable with automatic mechanism
designed and manufactured with special emphasis on overall tonal
quality and basic performance. With the SR-212 to put a perfect
finishing touch to your stereo system, the unlimited world of
music is yours to be enjoyed. But first, mount the parts and
connect cables correctly referring to this Operating Instruction
Booklet in order to get the most out of your turntable.

_ _ ._......_. ___.___..,7

Note: Another model designated SR-212® is available, the
only differences from the SR-212 being the power source
voltage/frequency and attached accessories (see table below).

POWER
MODEL SOURCE
120,:24ov,

5"le 50/630112

SR-212® 120V, 60Hz I

CAPSTAN FOR I
FREQU ENCY f CARTRIDGE
CHANGE i

Attached Attached
NOT Attached NOT Attached

Other specifications and operating procedures are the same for

both models.

SPECIFICATIONS

TYPE: Two-speed belt-driven auto-
stop;'auto-return turntable

AUTOMATIC OPERATION:

Stop and return mechanism

PLATTER: Aluminum alloy die-cast 300mm
(12) diameter
MOTOR: 4-pole synchronous
SPEEDS: say, 45 rpm
WOW & FLUTTER: 0.I % (WRMS)
$sz 45d8
TONEARM: StaticaIIy-balanced S-shaped
tubular tonearm with anti-skat-
ing device, direct readout sty-
lus pressure dial, 4-contact
plug-in head
TONEARM LENGTH: 2I5mm (81.5)
OVERHANG: 10mm (%)
PRESSURE ADJUSTABLE: 0~4gr
CARTRIDGE: Induced magnet type (SC-37)

,, ._., ___.._._.___._ _ ______._. ,,__.v.v....,.J

FREQUENCY RESPONSE: 20~20.000Hz
OUTPUT VOLTAGE: 3.5mV at I,000Hz with 50mm)I

SOC

LOAD IMPEDANCE: 50kg),

STYLUS: 0.5 miI, diamond spherical (SN-
37)
TRACKING FORCE: 2.59r:0.4gr

POWER REQUIREMENTS:

$R-212: 120,:24ov 50/60Hz
SR-212®2 I20V 60Hz

POWER CONSUMPTION: IOW

DIMENSIONS: 442mm(W) X Ibbmm(H) x 352mm

(0) or I7 mm) x 69,3(H) ><
13% (D)

6.7kg (14.7Ibs.) Net

9.0kg (19.8 lbs.) Packed
STANDARD ACCESSORIES:

45mm record adaptor, oil, bias
weight, removable dust cover
with free-stop hinges

WEIGHT:
