Sansui SE 80 Service Manual

Extracted text from Sansui SE 80 Service Manual (Ocr-read)

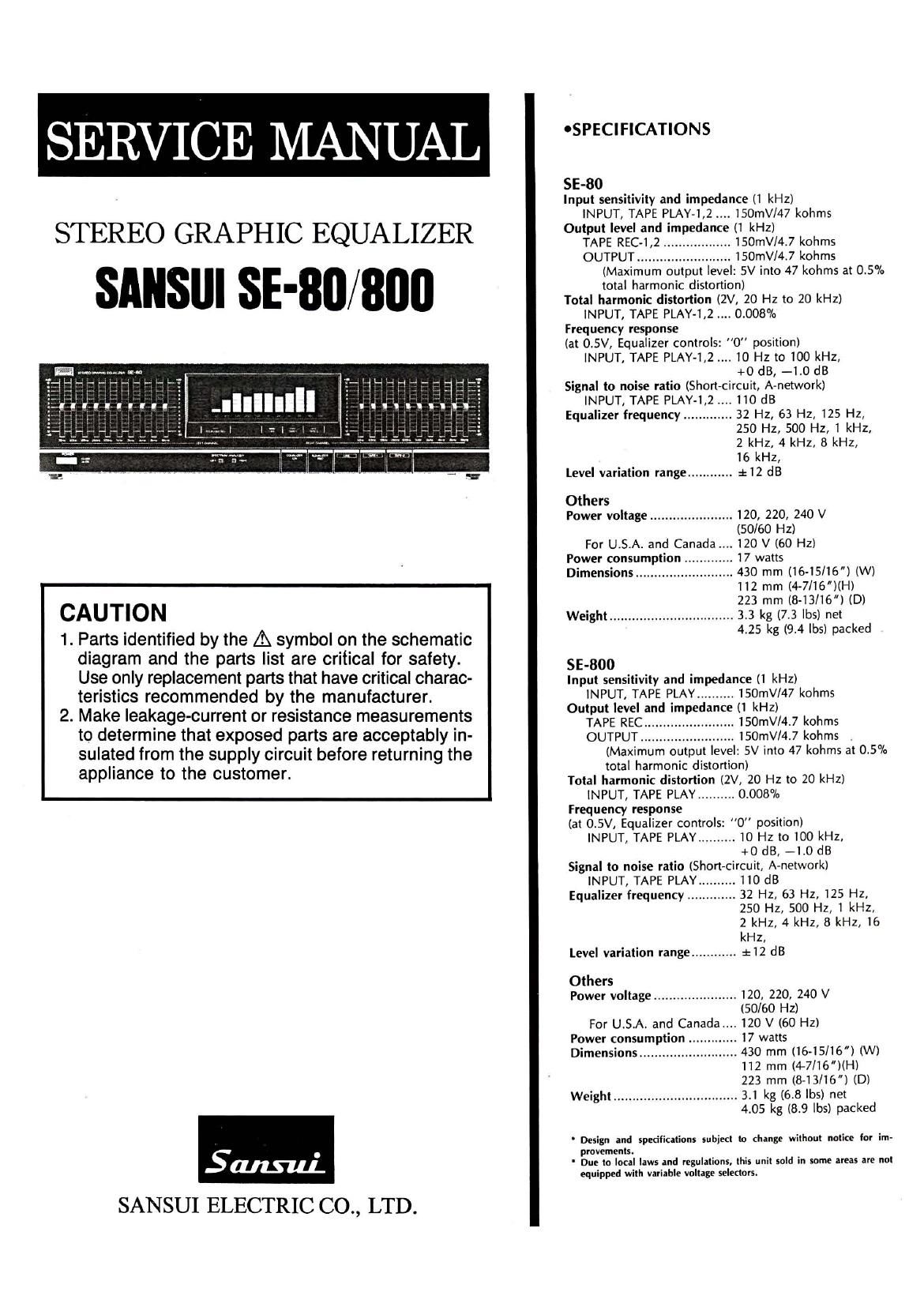

Page 1

SERVICE MANUAL

STEREO GRAPHIC EQUALIZER

SANSUI SE-BII/BIIII

i
-lllllllll it 1 - s n. iii-#1:;

. l

CAUTION

1. Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

- - d

Saturn}.
SANSUI ELECTRIC CO., LTD.

OSPECIFICATIONS

SE-80
Input sensitivity and impedance (1 kHz)
INPUT, TAPE PLAY-1,2 ISOmV/47 kohms
Output level and impedance (1 kHz)
TAPE REC-1,2 .................. 150mV/4.7 kohms
OUTPUT ......................... 150mV/4.7 kohms
(Maximum output level: 5V into 47 kohms at 0.5%
total harmonic distortion)
Total harmonic distortion (2V, 20 Hz to 20 kHz)
INPUT, TAPE PLAY-1,2 0.008%
Frequency response
(at 0.5V, Equalizer controls: "0 position)
INPUT, TAPE PLAY-1,2 10 Hz to 100 kHz,
+0 dB, -l .0 dB
Signal to noise ratio (Short-circuit, A-network)
INPUT, TAPE PLAY-1,2110 dB
Equalizer frequency ............. 32 Hz, 63 Hz, 125 Hz,
250 Hz, 500 Hz, 1 kHz,
2 kHz, 4 kHz. 8 kHz,

16 kHz,
Level variation range ............ 112 dB
Others
Power voltage ...................... 120, 220, 240 V
(50/60 HZ)
For U.S.A. and Canada.... 120 V (60 Hz)
Power consumption ............. 17 watts
Dimensions .......................... 430 mm (16-15/16) (W)

112 mm (4-7/16)(H)

223 mm (8-13/16) (D)
Weight ................................. 3.3 kg (7.3 lbs) net

4.25 kg (9.4 lbs) packed

SE-800

Input sensitivity and impedance (1 kHz)
INPUT, TAPE PLAY .......... ISOmV/47 kohms

Output level and impedance (1 kHz)
TAPE REC ........................ lSOmV/4.7 kohms
OUTPUT ......................... 150mV/4.7 kohms

(Maximum output level: 5V into 47 kohms at 0.5%
total harmonic distortion)
Total harmonic distortion (2V, 20 Hz to 20 kHz)
INPUT, TAPE PLAY .......... 0.008%
Frequency response
(at 0.5V, Equalizer controls: 0 position)

INPUT, TAPE PLAY .......... 10 Hz to 100 kHz,
+0 dB, -1 .0 dB
Signal to noise ratio (Short-circuit, A-network)
INPUT, TAPE PLAY .......... 110 dB
Equalizer frequency ............. 32 Hz, 63 Hz, 125 Hz,

250 Hz, 500 Hz, 1 kHz,
2 kHz, 4 kHz, 8 kHz, 16

kHz,
level variation range ............ :12 dB
Others
Power voltage ...................... 120, 220, 240 V
(50/60 Hz)
For U.S.A. and Canada.... 120 V (60 Hz)
Power consumption ............. 17 watts
Dimensions .......................... 430 mm (16»15/16) (W)

112 mm (4-7/16)(H)

223 mm (8-13/16) (D)
Weight ................................. 3.1 kg (6.8 lbs) net

4.05 kg (8.9 lbs) packed

Design and specifications subject to change without notice for im-
provements.

Due to local laws and regulations, this unit sold in some areas are not
equipped with variable voltage selectors.

Page 2

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.

UL ....................... Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA .................... Manufactured for Canadian market.

SA ....................... Manufactured for South African market.

BS, UK ............... Manufactured for United Kingdom market.

EU ...................... Manufactured for European market.

AS ....................... Manufactured for Australian market.

XX ....................... Standard Version.

NON MARK ........ Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

- OAbbreviations List

C.R. : Carbon Resistor

S.R. : Solid Resistor

Ce.R. : Cement Resistor

M.R. : Metal Film Resistor

F.R. : Fusing Resistor

N.I.R. : Non-Inflammable Resistor

A.R. : Array Resistor

C.C. : Ceramic Capacitor

C.T. : Ceramic Capacitor,
Temperature Compensation

E.C. : Electrolytic Capacitor

E.L. : Low Leak Electrolytic
Capacitor

E.B. : Bi-Poiar Electrolytic
Capacitor

E.B.L.

Ta.C.
F.C.
M.P.
P.C.
G.C.
AC.
V.R.
S.V.R.
SW. .
Chip R. :
Chip C. :

: Low Leak Bi-Polar

Electrolytic Capacitor

: Tantalum Capacitor

: Film Capacitor

: Metalized Paper Capacitor
: Polystyrene Capacitor

: Gimmic Capacitor

: Array Capacitor

: Variable Resistor

: Semi Variable Resistor

Switch

Chip Resistor
Chip Capacitor
