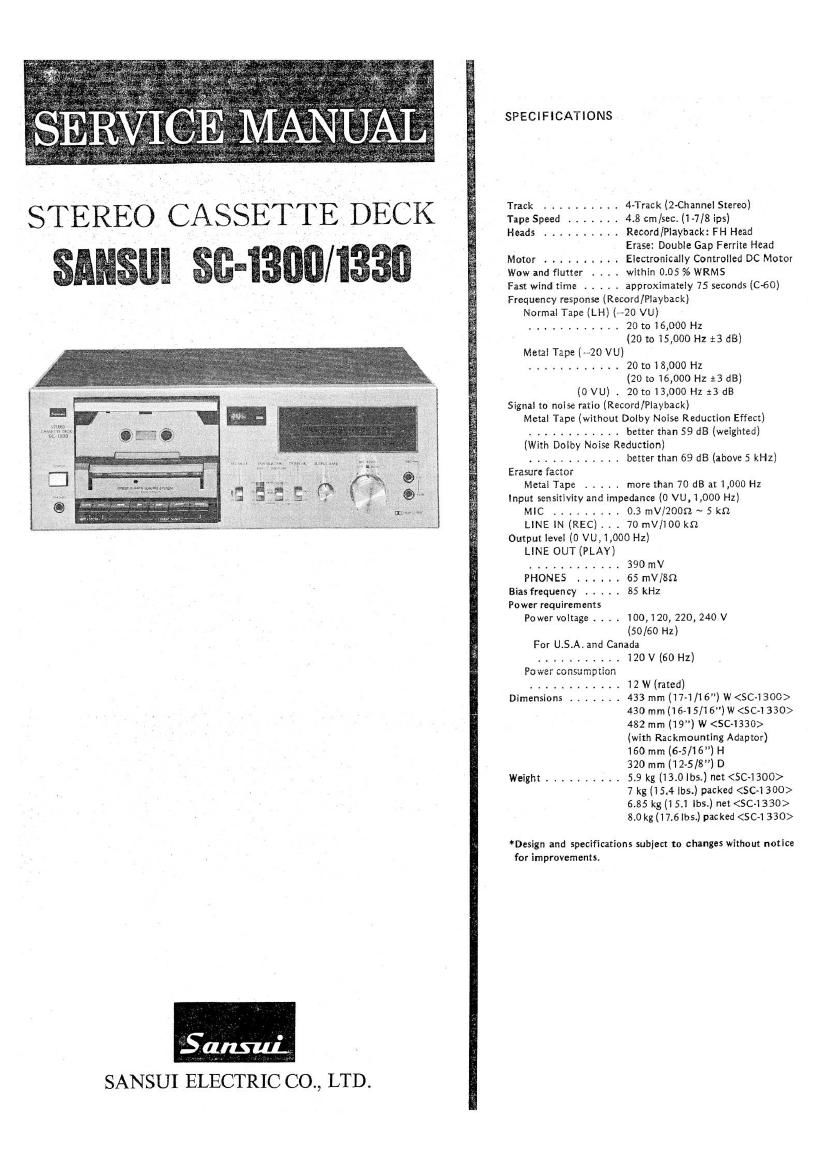

STEREO CASSETTE DECK
SANSUI 30-1300/1330
Sans-11L
SANSUI ELECTRIC CO., LTD.
SPECIFICATIONS
Track .......... 4-Track (2vChannel Stereo)
Tape Speed ....... 4.8 cm/sec. (1-7/8 ips)
Heads .......... Record/Playback: FH Head
Erase: Double Gap Ferrite Head
Motor .......... Electronically Controlled DC Motor
Wow and flutter . . within 0.05 % WRMS
Fast wind time ..... approximately 75 seconds (C60)
Frequency response (Record/Playback)
Normal Tape (LH) (-20 VU)
............ 20 to 16,000 Hz
(20 to 15,000 Hz 13 dB)
Metal Tape (, 20 VU)
............ 20 to 13,000 Hz
(20 to 16,000 Hz :3 dB)
(0 VU) . 20 to 13,000 Hz :3 dB
Signal to noise ratio (Record/Playback)
Metal Tape (without Dolby Noise Reduction Effect)
............ better than 59 dB (weighted)
(With Dolby Noise Reduction)
............ better than 69 :13 (above 5 kHz)
Erasure factor
Metal Tape ..... more than 70 dB at 1,000 Hz
Input sensitivity and impedance (0 VU,1.000 Hz)
MIC ......... 0.3 mV/ZOOSZ ~ 5 kn
LINE IN (REC) . .. 70 mV/IOO kn
Output level (0 VU, 1.000 H2)
LINE OUT (PLAY)
............ 390 mV
PHONES , 65 mVISn
Bias frequency ..... 85 kHz
Power requirements
Power voltage . . , . 100, l20, 220, 240 V
(50/60 Hz)
For U.S.A. and Canada
........... 120 V (60 Hz)
Power consumption
............ 12 W (rated)
Dimensions ....... 433 mm (17-1/16")W
430 mm (1 6-1 5/1 6") W
482 mm (19) W <5C-1330>
(with Rackmounting Adaptor)
150 mm (6-5/16") H
320mm (12-5/8) D
Weight .......... 5.9 kg (1 3.0 lbs.) net (SC-1300>
7 kg (15.4 lbs.) packed
6.85 kg (15.1 lbs.) net <5C-l330>
8.0 kg (17.6 lbs.) packed
Design and specifications subject to changes without notice
for improvements.
