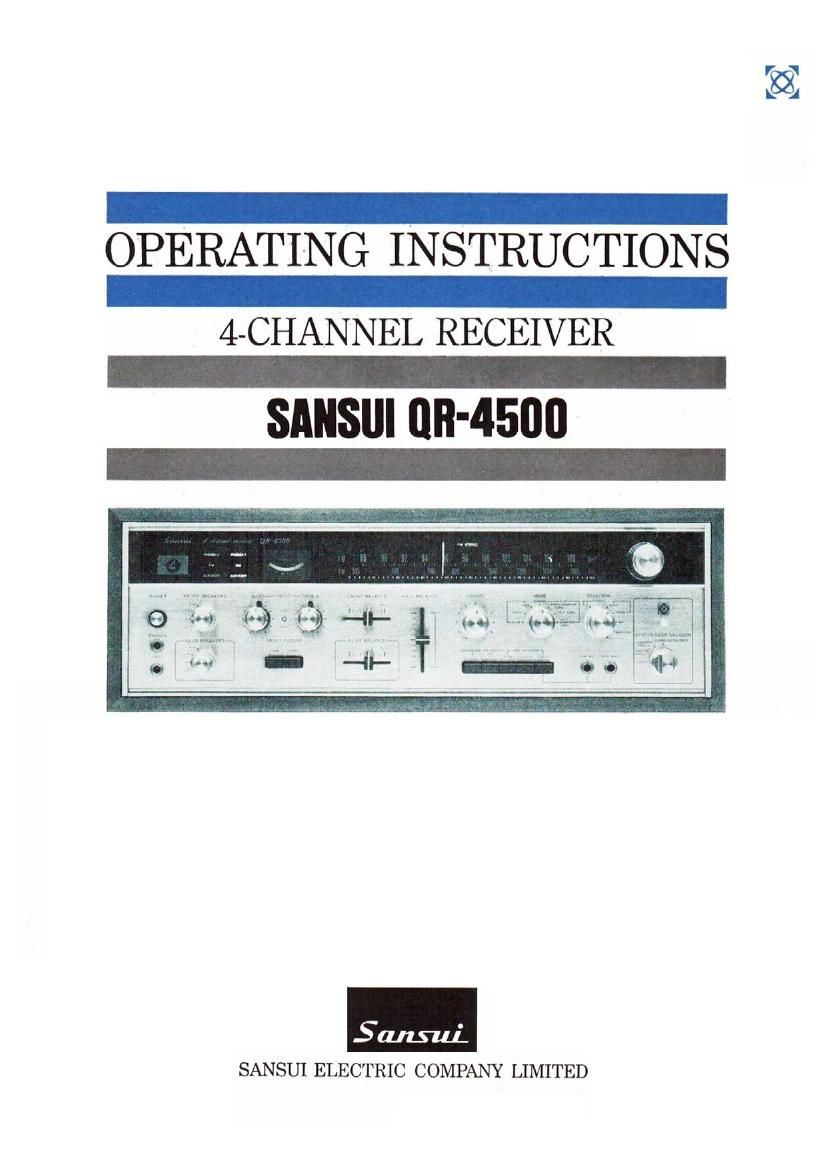

OPERATING INSTRUCTIONS
4-CHANNEL RECEIVER
SANSUI [Ill-4500
SANSUI ELECTRIC COMPANY LIMITED
Congratulations on joining the thousands of proud, satisfied owners
of quality stereo components from Sansui. The QR-4500 is a 240
watt 4-channel receiver endowed with practically all the features
necessary for enjoying every type of music in the new, enthrall-
ing 4-channel form. Incorporating Sansuis exclusive 4-Channel
Synthesizer Decoder, it lets you convert todays 2-channel stereo
records, tapes and FM multiplex broadcasts into four channels.
It also lets you reproduce discrete 4-channel program sources. Then
it lets you transform 4-channel sources encoded into two channels
back to four channels. In addition, it reproduces Z-channel sources
in 2-channel stereo if you so desire.
The QR-4500 connects up to two pairs of speaker systems for the
front channels, and another two pairs for the rear channels, enabl-
ing you to hear the reproduction in two rooms. In addition, it is
provided with a Synthesizer/Decoder Function Control and a Mode
Switch to let you hear each selection with the most effective sound
effect. In short, we have made it one of the most complete, most
versatile 4-channel receivers available today.
Now it is up to you to read the instructions contained in this book-
let, so that you may take full advantage of its rich performance
potential.
Again, welcome to the world of 4-channel stereo, and our sincere
gratitude for your choice. You will not be disappointed.
CONTENTS
SWITCHES AND CONTROLS .............................. 3, 4, 5, 6, 7
TO ENJOY 4-CI-IANNEL STEREO AT ITS BEST .................. 8
CONNECTING SPEAKER SYSTEMS/
PLAYING RECORDS ............................................. 9, 10
RADIO RECEPTION ................................................ 11, 12
2-CHANNEL TAPE DECKS ....................................... 13, 14
4-CI-IANNEL TAPE DECK .......................................... 15, 16
MAINTENANCE ............................................. 17, 18, 19, 20
ACCESSORIES ............................................................... 20
SPECIFICATIONS/CHARACTERISTICS ..................... 21, 22
