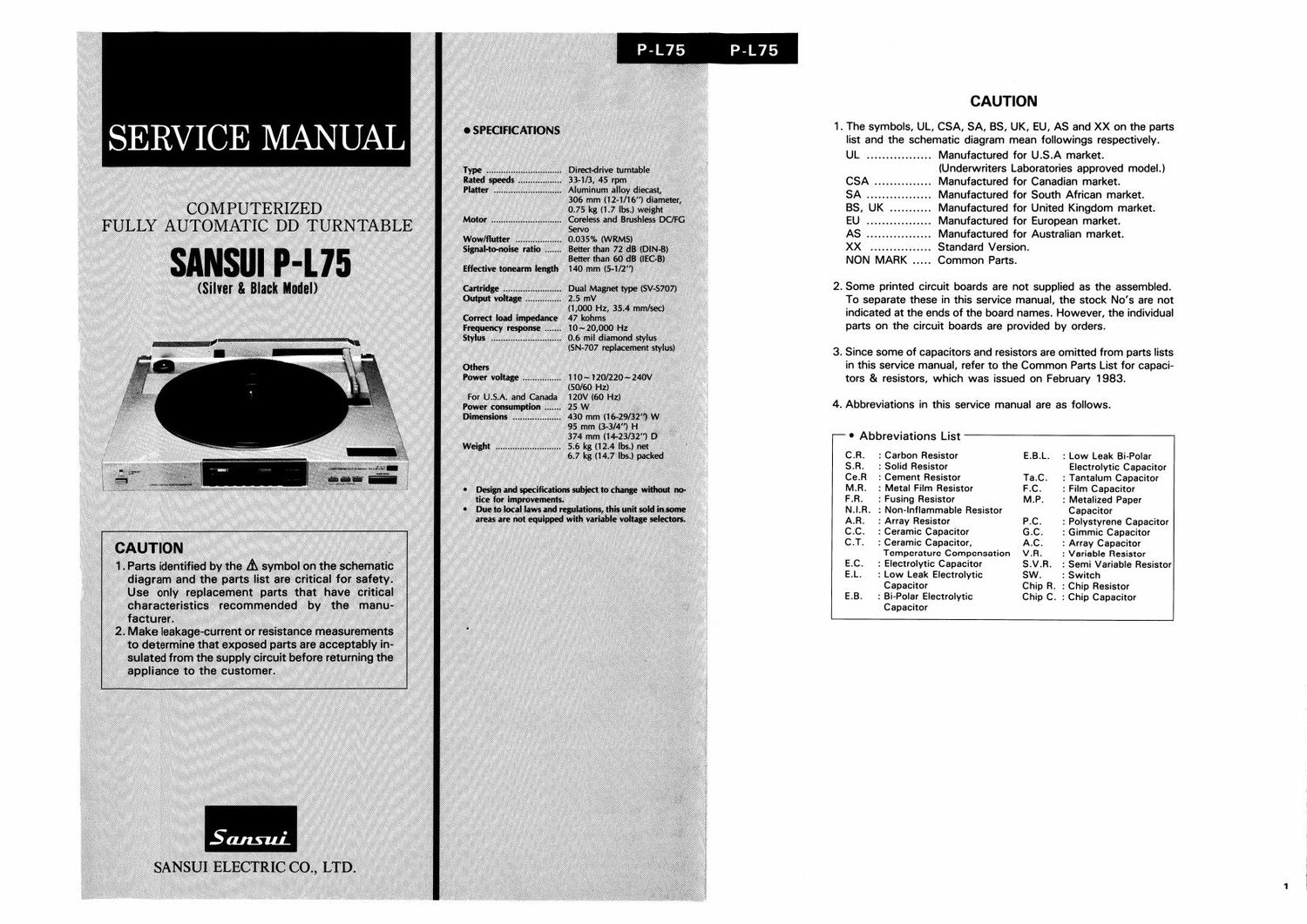

SERVICE MANUAL

COMPUTERIZED
FULLY AUTOMATIC DD TURNTABLE

SANSUI P-l75

(Silver & Black Model)

CAUTION

1 .Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical
characteristics recommended by the manu-
facturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

SansuL
SANSUI ELECTRIC (30., LTD.

Cartridge ......

P-L7

0 SPECIFICATIONS

. Direct-drive turntable

33-1/3, 45 rpm

. Aluminum ailoy diecast,

306 mm (12-1116") diameter,
0.75 kg (1.7 lbs.) weight

Type .............
Rated speeds
Platter ..........

Motor ............................. Careless and Brushless DC/FG
Servo
Wow/flutter ........ . 0.035% (WRMS)

Better than 72 dB (DIME)
Better than 60 d8 (iEC-El
Effective tonearm length 140 mm (5-1/2")

SignaHo-noise ratio

Dual Magnet type (SV~S707)
Output voltage . . 2.5 mV

(1,000 Hz, 35.4 trim/SEC)
Correct load impedance 47 kohms
Frequency respome lo~20,000 Hz
Stylus ...................... . 0.6 mil diamond stylus
(SN-707 replacement stylus)

Others
Power voltage .. . l lO~ 120/220~ 240V
(50/60 Hz)

For U.S.A. and Canada 120V (60 HZ)

Power consumption 25 W

Dimensions .......... . 430 mm (rue/32") W
95 mm (3314") H ,
374 mm (43/32") D

Weight ........................... 5.6 kg (12.4 lbs.) net

5.7 kg (14.7 1st packed

- Design and specifications subject to shame without no-
lice for improvements.

I Due to local laws and regulations, this unit sold inmate
areas are not equipped with variable voltage selectors.

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.
UL ................. Manufactured for USA market.

(Underwriters Laboratories approved model.)

Manufactured for Canadian market.

SA .. . Manufactured for South African market.

BS, UK . Manufactured for United Kingdom market.

EU ................. Manufactured for European market.

AS ........... Manufactured for Australian market.

XX ........... Standard Version.

NON MARK ..... Common Parts.

CSA ..

2. Some printed circuit boards are not supplied as the assembled.

To separate these in this service manual, the stock No's are not
indicated at the ends of the board names. However, the individual
parts on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists

in this service manual, refer to the Common Parts List for capaci-

tors & resistors, which was issued on February 1983.

.Abbreviations in this service manual are as follows.

- Abbreviations List

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
SR. : Solid Resistor Electrolytic Capacitor
Ce.R : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. : Metalized Paper
N.l.R. : Non-lnflammable Resistor Capacitor
A.R. : Array Resistor P.C. : Polystyrene Capacitor
C.C. 2 Ceramic Capacitor G.C. : Gimmic Capacitor
C.T. : Ceramic Capacitor, A.C. : Array Capacitor
Temperature Compensation V.R. : Variable Resistor
E.C. : Electrolytic Capacitor S.V.R. : Semi Variable Resistor
E.L. : Low Leak Electrolytic SW. : Switch
Capacitor Chip R : Chip Resistor
E.B. : Bi-Polar Electrolytic Chip C : Chip Capacitor
Capacitor
