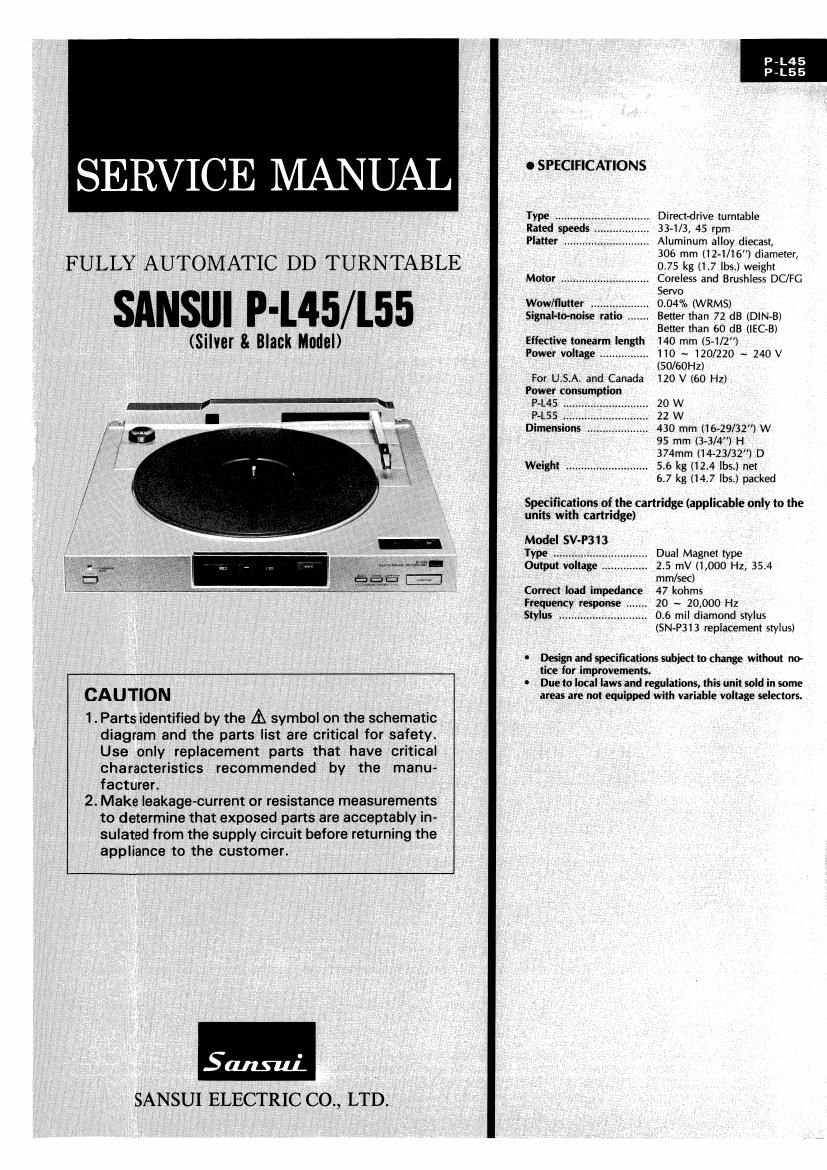

Page 1

P-L45
P-L55

I SERVICE MANUAL OSPECIFICATIONS

Type ......... Directdrive turntable
Rated speeds 334/3, 45 rpm
Platter ..... Aluminum alloy diecast,
', 306 mm (12-1/16) diameter,
FULLY AUTOMATIC DD TURNTABLE 0.75 kg (1.7 lbs) Weight
Motor ............................ Coreless and Brushless DC/FG

Servo
0.04% (WRMS)

, I , Wow/flutter ttttt
Signal-to-noise ratio Better than 72 dB (DIN-B)
Better than 60 dB (IEGB)

(silver & Black Model) Effective tonearm length 140 mm (5-1/2)
Power voltage .. 110 ~ 120/220 ~ 240 V

i50/60HZ)
For U.S.A, and Canada 120 V (60 Hz)
Power consumption
P4L45
P~L55
Dimensions

20 W

22 W

430 mm (16-29/32) W
95 mm (3'3/4") H
374mm (14»23/32) D
Weight ........................... 5.6 kg (12.4 lbs.) net
67 kg (14.7 lbs.) packed

Specifications of the cartridge (applicable only to the
units with cartridge)

Model SV-P313

Type ..............
Output voltage .

Dual Magnet type
. 2.5 mV (1,000 HZ, 35r4
mm/sec)
Correct load impedance 47 kohms
Frequency response . 20 ~ 20,000 Hz
Stylus ................... . 0.6 mil diamond stylus
(SN-P313 replacement stylus)

- Design and specifications subject to change without no-
tice for improvements.
. Due to local laws and regulations, this unit sold in some

_ _ CAUTION areas are not equipped with variable voltage selectors.

1.Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.

Use only replacement parts that have critical
characteristics recommended by the manu-
facturer.

2.Make leakage-current or resistance measurements
to determine, that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

Sansui.
SANSUI ELECTRIC CO., LTD.

Page 2

P-L45
PAL55

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.

UL ................. Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)

CSA ............... Manufactured for Canadian market.

SA ......... Manufactured for South African market.
BS, UK Manufactured for United Kingdom market.
EU . Manufactured for European market.

AS Manufactured for Australian market.

XX ................ Standard Version.

NON MARK ..... Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock No's are not
indicated at the ends of the board names. However, the individual
parts on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capaci-

tors & resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

0 Abbreviations List

C.R. : Carbon Resistor E.B.L : Low Leak BiaPolar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. : Metalized Paper
NI.R. : Non-lnflammable Resistor Capacitor
A.R. : Array Resistor F.C. : Polystyrene Capacitor
C.C. : Ceramic Capacitor G.C. : Gimmic Capacitor
C.T. : Ceramic Capacitor, A.C. : Array Capacitor
Temperature Compensation V.R. : Variable Resistor
E.C. : Electrolytic Capacitor S.V.R : Semi Variable Resistor
EtL. : Low Leak Electrolytic SW. : Switch
Capacitor Chip R : Chip Resistor
E.B. : Bi-Polar Electrolytic Chip C : Chip Capacitor

Capacitor
